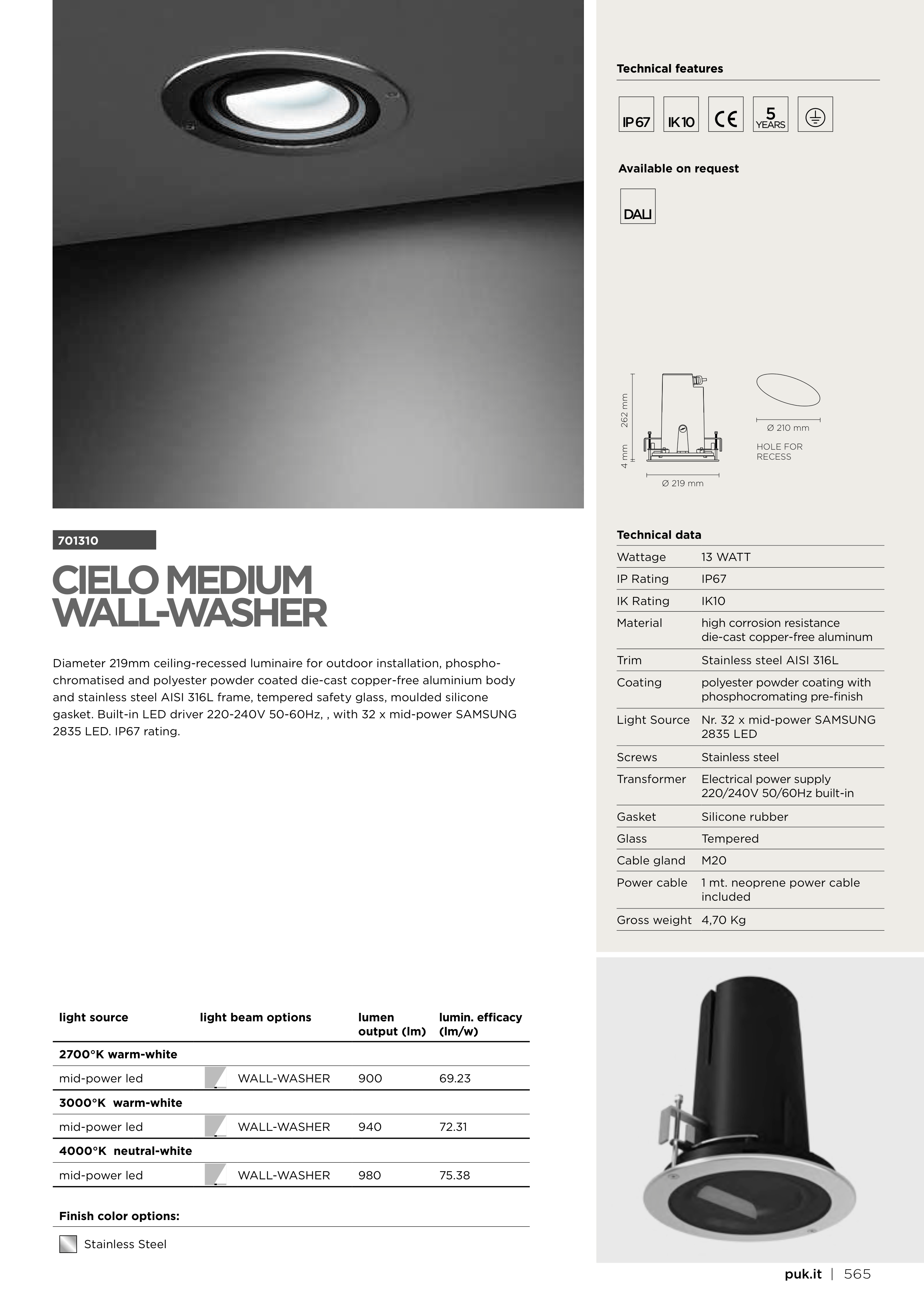

puk.it | 565
CIELO MEDIUM
WALL-WASHER
701310
Diameter 219mm ceiling-recessed luminaire for outdoor installation, phospho-
chromatised and polyester powder coated die-cast copper-free aluminium body
and stainless steel AISI 316L frame, tempered safety glass, moulded silicone
gasket. Built-in LED driver 220-240V 50-60Hz, , with 32 x mid-power SAMSUNG
2835 LED. IP67 rating.
Technical features
Technical features
5
Technical data
Wattage
13 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 32 x mid-power SAMSUNG
2835 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
4,70 Kg
DALI
Available on request
Stainless Steel
Finish color options:
light source
light beam options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
mid-power led
WALL-WASHER
900
69.23
3000°K warm-white
mid-power led
WALL-WASHER
940
72.31
4000°K neutral-white
mid-power led
WALL-WASHER
980
75.38
Ø 210 mm
Ø 219 mm
4 mm
262 mm
HOLE FOR
RECESS
