Technical data
Wattage
8 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB1304 COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,40 Kg

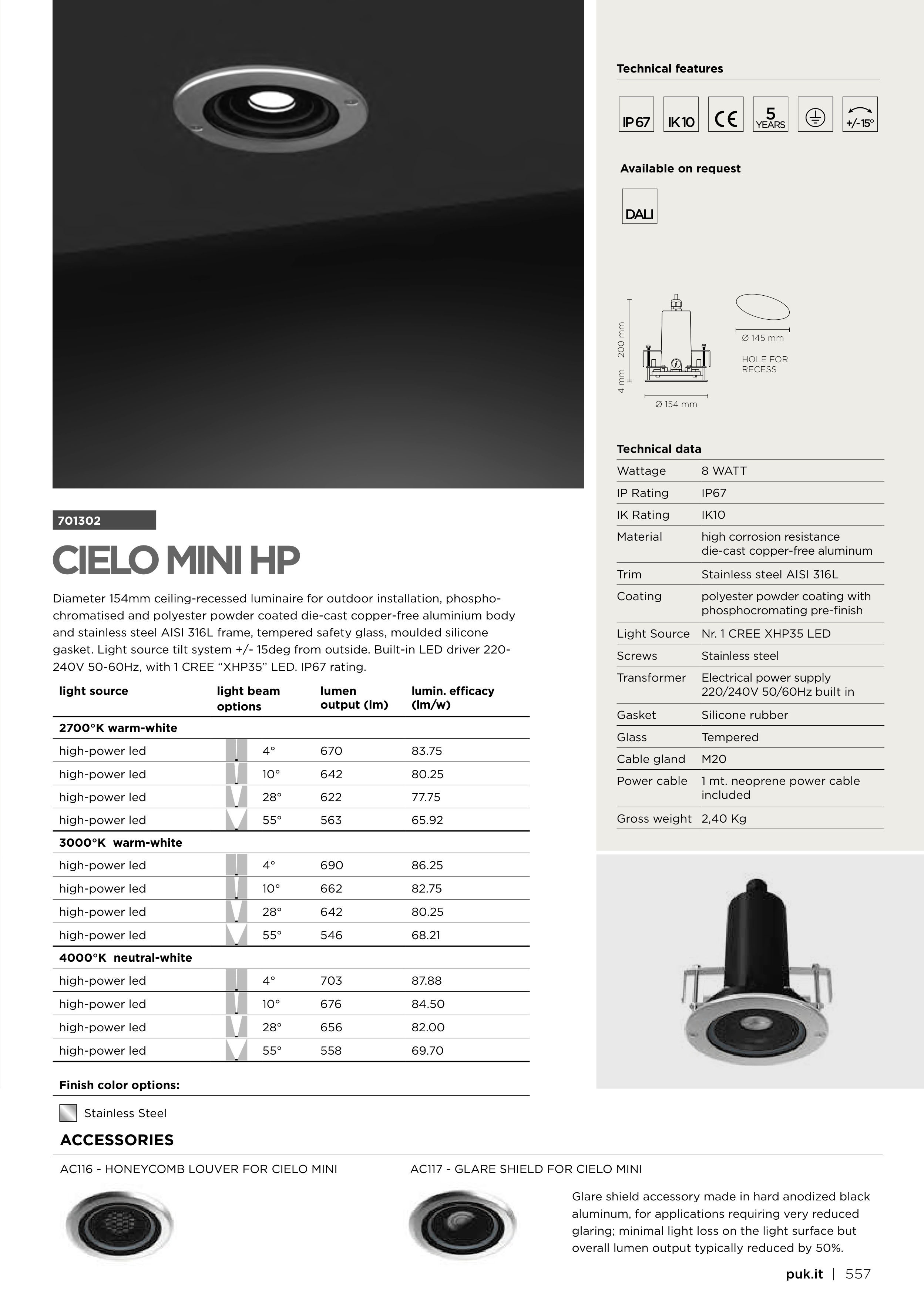

CIELO MINI HP
701302
Diameter 154mm ceiling-recessed luminaire for outdoor installation, phospho-
chromatised and polyester powder coated die-cast copper-free aluminium body
and stainless steel AISI 316L frame, tempered safety glass, moulded silicone
gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-
240V 50-60Hz, with 1 CREE “XHP35” LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
4°
670
83.75
high-power led
10°
642
80.25
high-power led
28°
622
77.75
high-power led
55°
563
65.92
3000°K warm-white
high-power led
4°
690
86.25
high-power led
10°
662
82.75
high-power led
28°
642
80.25
high-power led
55°
546
68.21
4000°K neutral-white
high-power led
4°
703
87.88
high-power led
10°
676
84.50
high-power led
28°
656
82.00
high-power led
55°
558
69.70
Technical features
Technical data
Wattage
8 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE XHP35 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,40 Kg
Technical features
AC116 - HONEYCOMB LOUVER FOR CIELO MINI
AC117 - GLARE SHIELD FOR CIELO MINI
Glare shield accessory made in hard anodized black
aluminum, for applications requiring very reduced
glaring; minimal light loss on the light surface but
overall lumen output typically reduced by 50%.
ACCESSORIES
5
+/- 15°
DALI
Available on request
Stainless Steel
Finish color options:
4 mm
Ø 154 mm
Ø 145 mm
HOLE FOR
RECESS
200 mm
