350 mA – LED POWER 1.2W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
15°
75
75.00
high-power led
30°
65
65.00
high-power led
45°
60
60.00
4000°K neutral-white
high-power led
15°
80
80.00
high-power led
30°
70
70.00
high-power led
45°
65
65.00
2700°K CCT available on request
Technical data
Wattage
1 WATT
IP Rating
IP68
IK Rating
IK09
Material
Hard anodized black
aluminium body
Trim
Stainless steel AISI 316 L
Light source
Nr. 1 CREE XP-G2 LED
Remote
driver
Constant current
350 mA
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M12
Power cable
1 mt. neoprene power cable
included
Gross weight
0,20 Kg
Technical features
Round ceiling-recessed luminaire for outdoor
installation, hard anodized black aluminium
body and stainless steel AISI 316 front trim,
tempered safety glass, moulded silicone
gasket. Remote constant current 350 mA
driver needed, with 1 CREE XP-G2 LED.
IP68 rating.
709003
Finish color options:
Stainless Steel

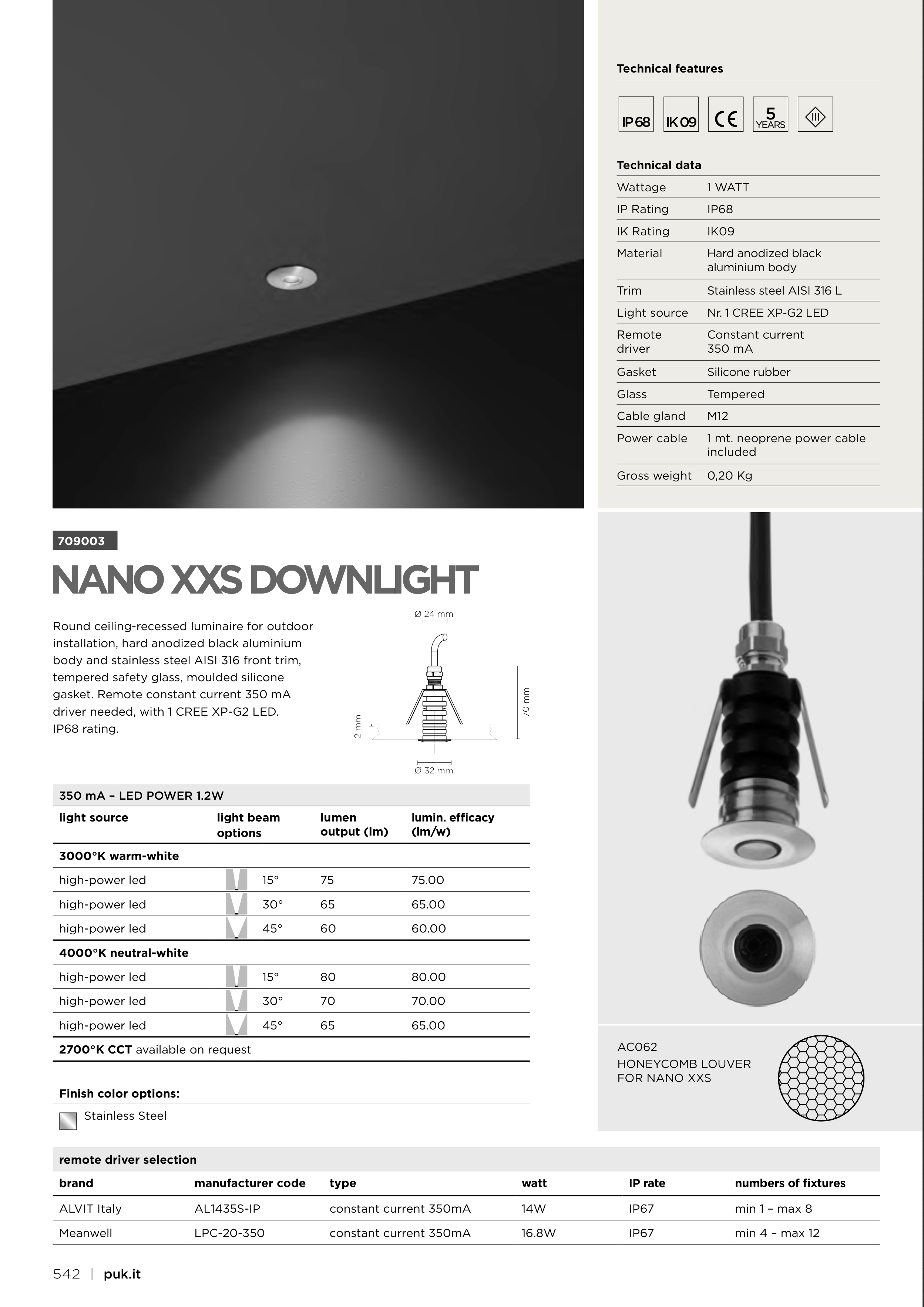

NANO XXS DOWNLIGHT
5
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
constant current 350mA
14W
IP67
min 1 – max 8
Meanwell
LPC-20-350
constant current 350mA
16.8W
IP67
min 4 – max 12
AC062
HONEYCOMB LOUVER
FOR NANO XXS
Ø 32 mm
70 mm
Ø 24 mm
2 mm
