538 | puk.it
Technical data
Wattage
20 WATT
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
extruded copper-free aluminum
head and extruded pole
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light Source
NR. 24 x CREE “XH-G” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
PG11
Power cable
1,5 meters power cable
included
Gross weight
4,80 Kg
Technical features

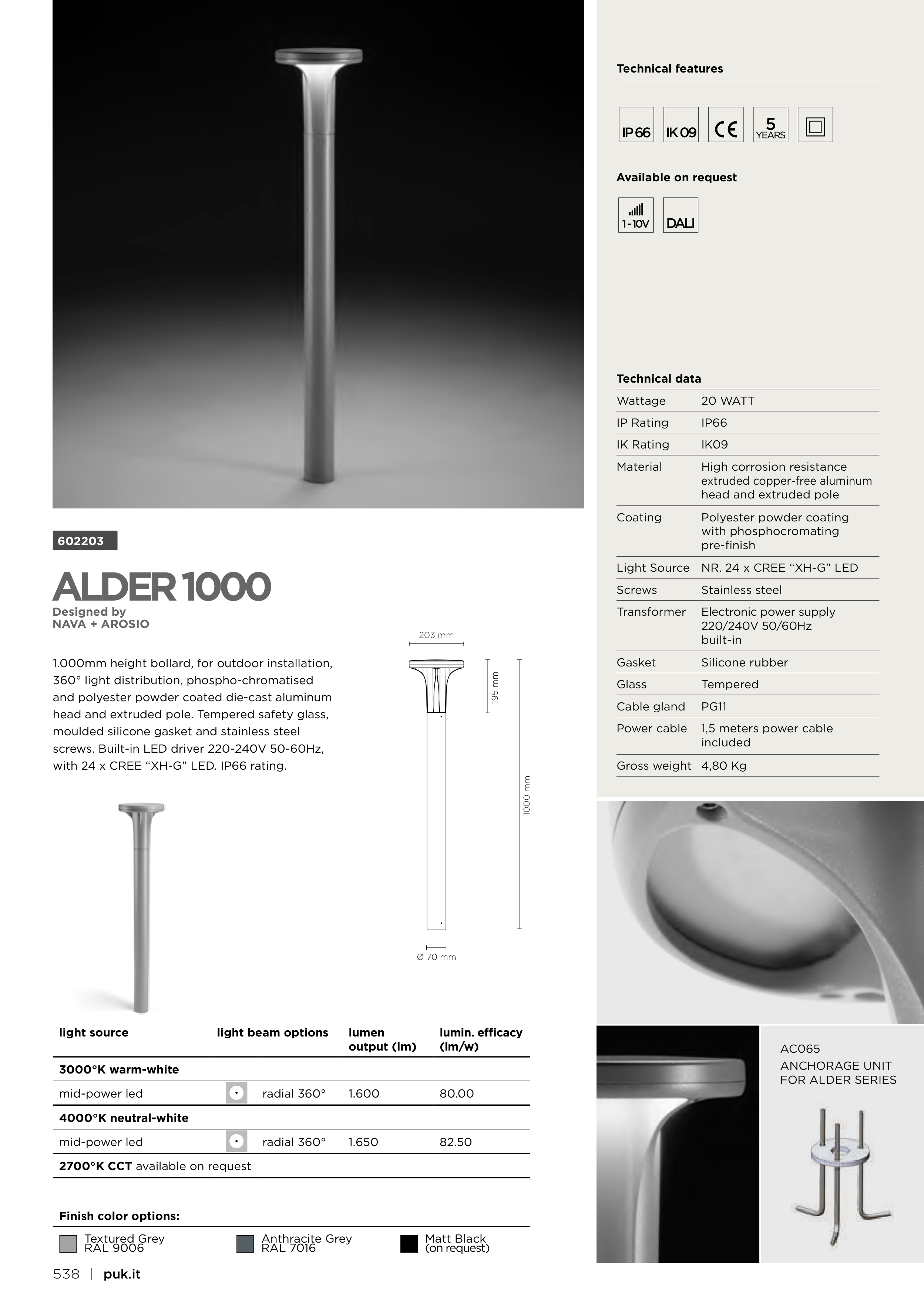

1.000mm height bollard, for outdoor installation,
360° light distribution, phospho-chromatised
and polyester powder coated die-cast aluminum
head and extruded pole. Tempered safety glass,
moulded silicone gasket and stainless steel
screws. Built-in LED driver 220-240V 50-60Hz,
with 24 x CREE “XH-G” LED. IP66 rating.
ALDER 1000
5
602203
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
mid-power led
radial 360°
1.600
80.00
4000°K neutral-white
mid-power led
radial 360°
1.650
82.50
2700°K CCT available on request
AC065
ANCHORAGE UNIT
FOR ALDER SERIES
Designed by
NAVA + AROSIO
203 mm
Ø 70 mm
195 mm
1000 mm
DALI
1 - 10V
Available on request
