516 | puk.it
Technical data
Wattage
4 WATT
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
extruded copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 6 x CREE XH-G LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Diffuser
Tempered glass
Gross weight
Kg 4,50
Technical features
5

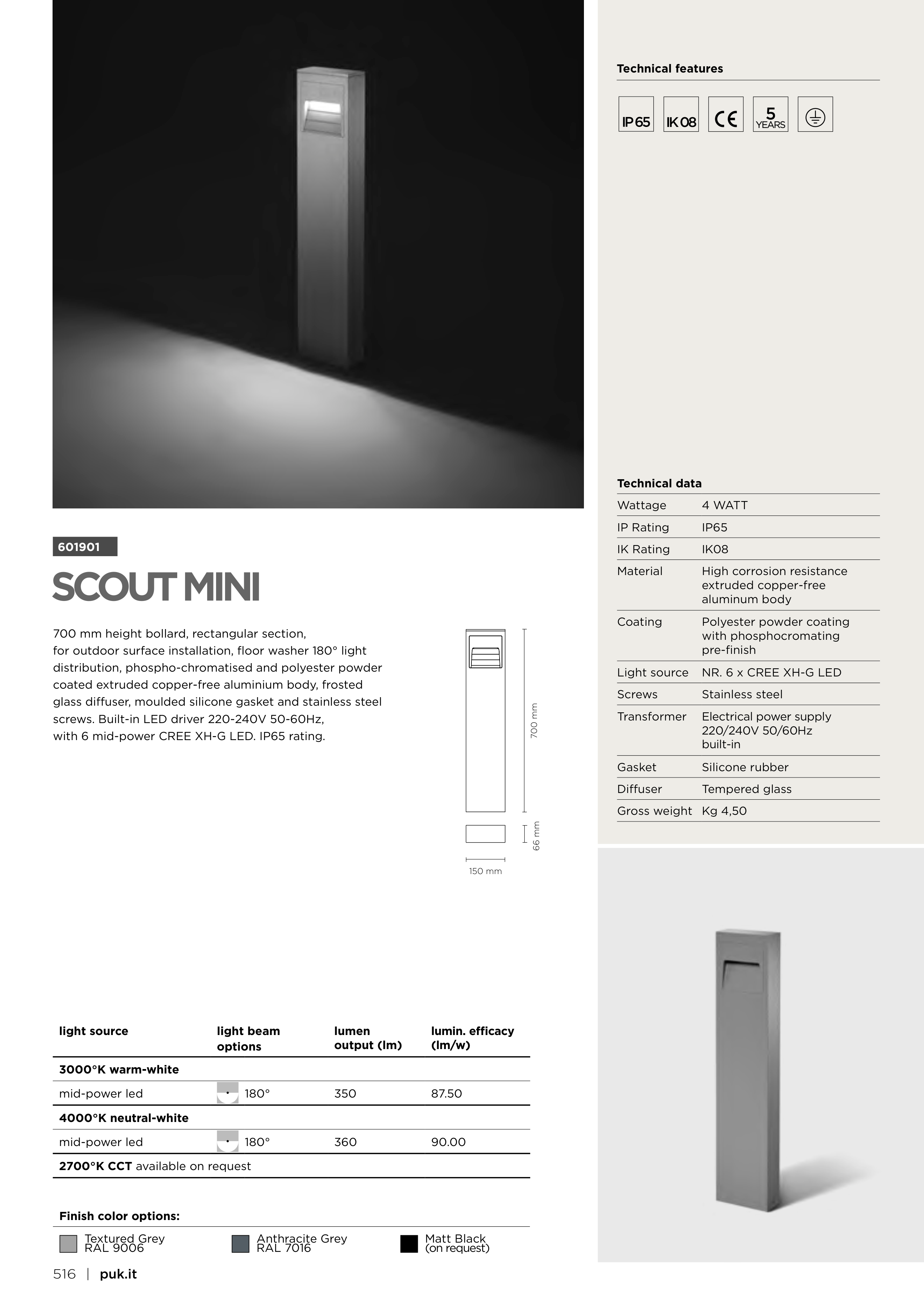

700 mm height bollard, rectangular section,
for outdoor surface installation, floor washer 180° light
distribution, phospho-chromatised and polyester powder
coated extruded copper-free aluminium body, frosted
glass diffuser, moulded silicone gasket and stainless steel
screws. Built-in LED driver 220-240V 50-60Hz,
with 6 mid-power CREE XH-G LED. IP65 rating.
SCOUT MINI
601901
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
mid-power led
180°
350
87.50
4000°K neutral-white
mid-power led
180°
360
90.00
2700°K CCT available on request
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
150 mm
700 mm
66 mm
