440 | puk.it

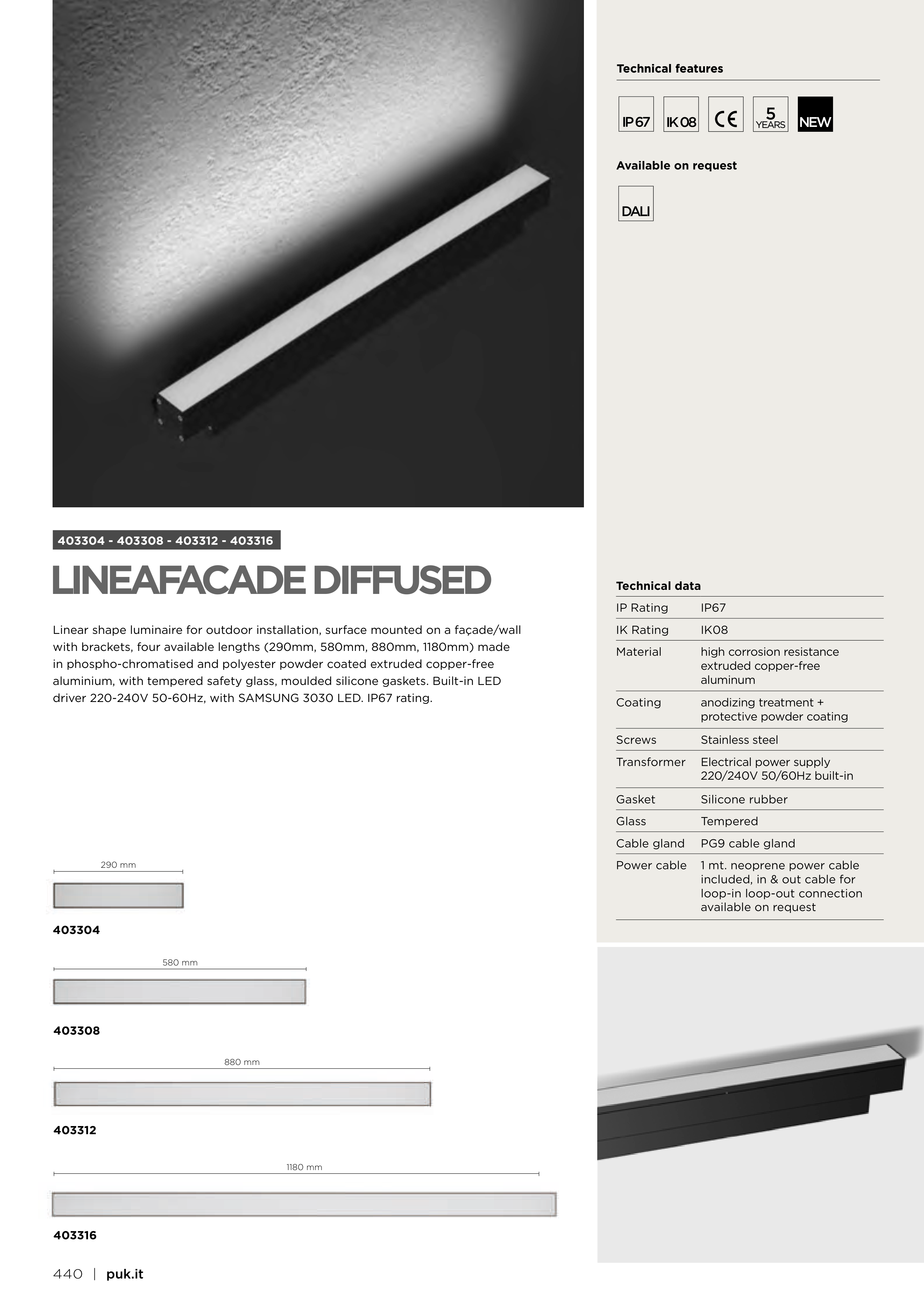

LINEAFACADE DIFFUSED
403304 - 403308 - 403312 - 403316
Linear shape luminaire for outdoor installation, surface mounted on a façade/wall
with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made
in phospho-chromatised and polyester powder coated extruded copper-free
aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED
driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.
Technical features
Technical data
IP Rating
IP67
IK Rating
IK08
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
PG9 cable gland
Power cable
1 mt. neoprene power cable
included, in & out cable for
loop-in loop-out connection
available on request
Technical features
5
NEW
DALI
Available on request
403304
403308
403312
403316
290 mm
580 mm
880 mm
1180 mm
