Technical data
Wattage
16 WATT
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
extruded copper-free
aluminum body
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
36 x mid-power
SAMSUNG 2835 LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Acid-etched tempered glass
diffuser white painted internally
Power cable
0,3 mt. power cable included
Gross weight
3,20 Kg
Technical features
Square 200x200mm surface mounted luminaire
for outdoor installation on a façade/wall.
Phospho-chromatised and polyester powder coated
die-cast copper-free aluminium body, acid-etched
tempered glass diffuser white painted internally,
moulded silicone gasket and stainless steel screws.
Built-in LED driver 220-240V 50-60Hz, with 36 x
mid-power SAMSUNG 2835 LED. IP65 rating.

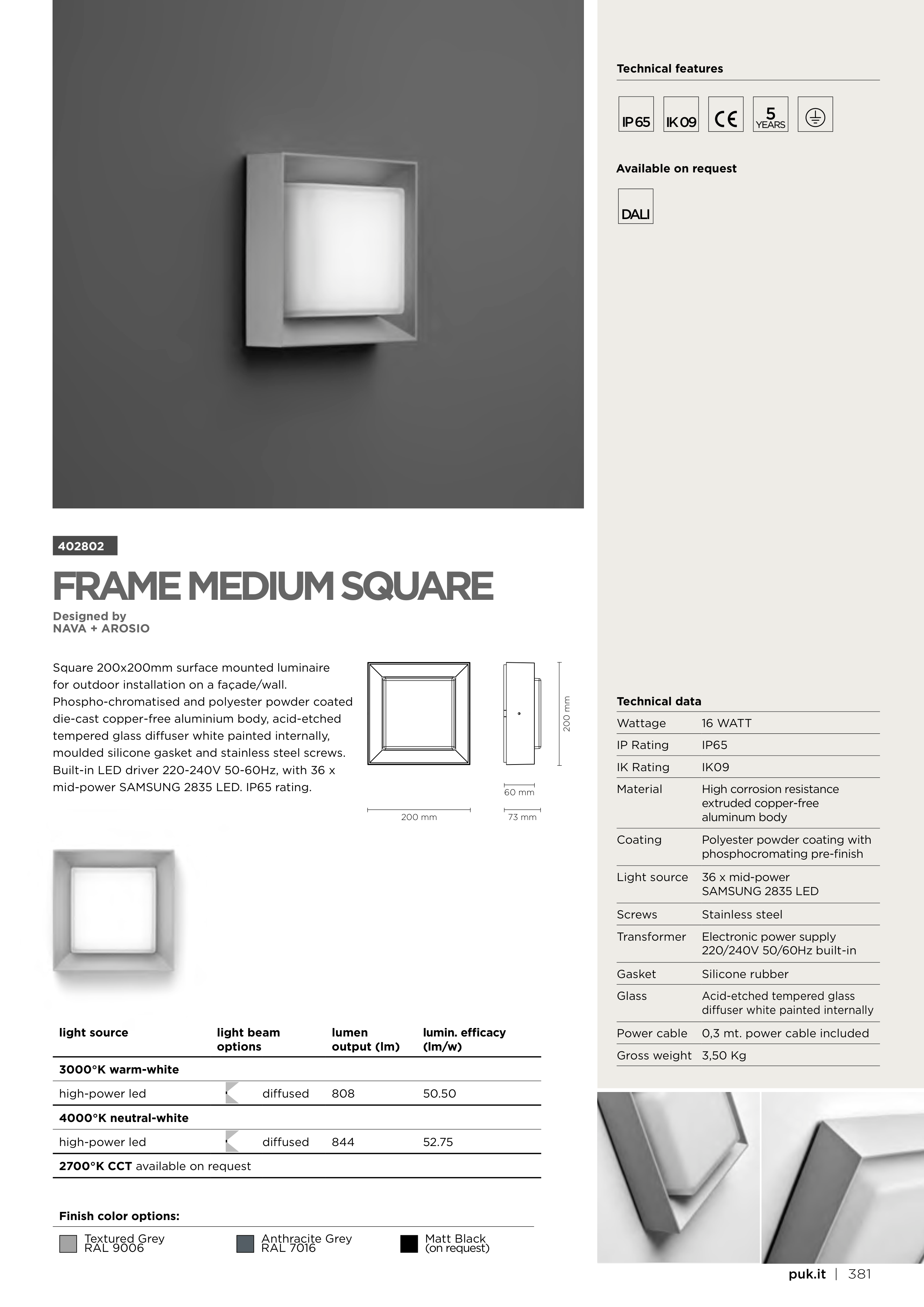

FRAME MEDIUM SQUARE
402802
Technical data
Wattage
16 WATT
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
extruded copper-free
aluminum body
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
36 x mid-power
SAMSUNG 2835 LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Acid-etched tempered glass
diffuser white painted internally
Power cable
0,3 mt. power cable included
Gross weight
3,50 Kg
200 mm
5
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
diffused
808
50.50
4000°K neutral-white
high-power led
diffused
844
52.75
2700°K CCT available on request
Designed by
NAVA + AROSIO
60 mm
73 mm
200 mm
DALI
Available on request
