368 | puk.it
200 mm
100 mm
100 mm
3 mm
Technical features
5
NEW
Wall applique for outdoor wall installation, with one side light
distribution. Luminaire body is made of extruded copper-free
aluminum, secured with die-cast aluminum base, tempered
safety glass and stainless steel screws. Asymmetrical wide light
distribution. Built-in LED driver 220-240V 50-60Hz, with 20 x
mid-power SAMSUNG 2835 LED. IP66 rating.

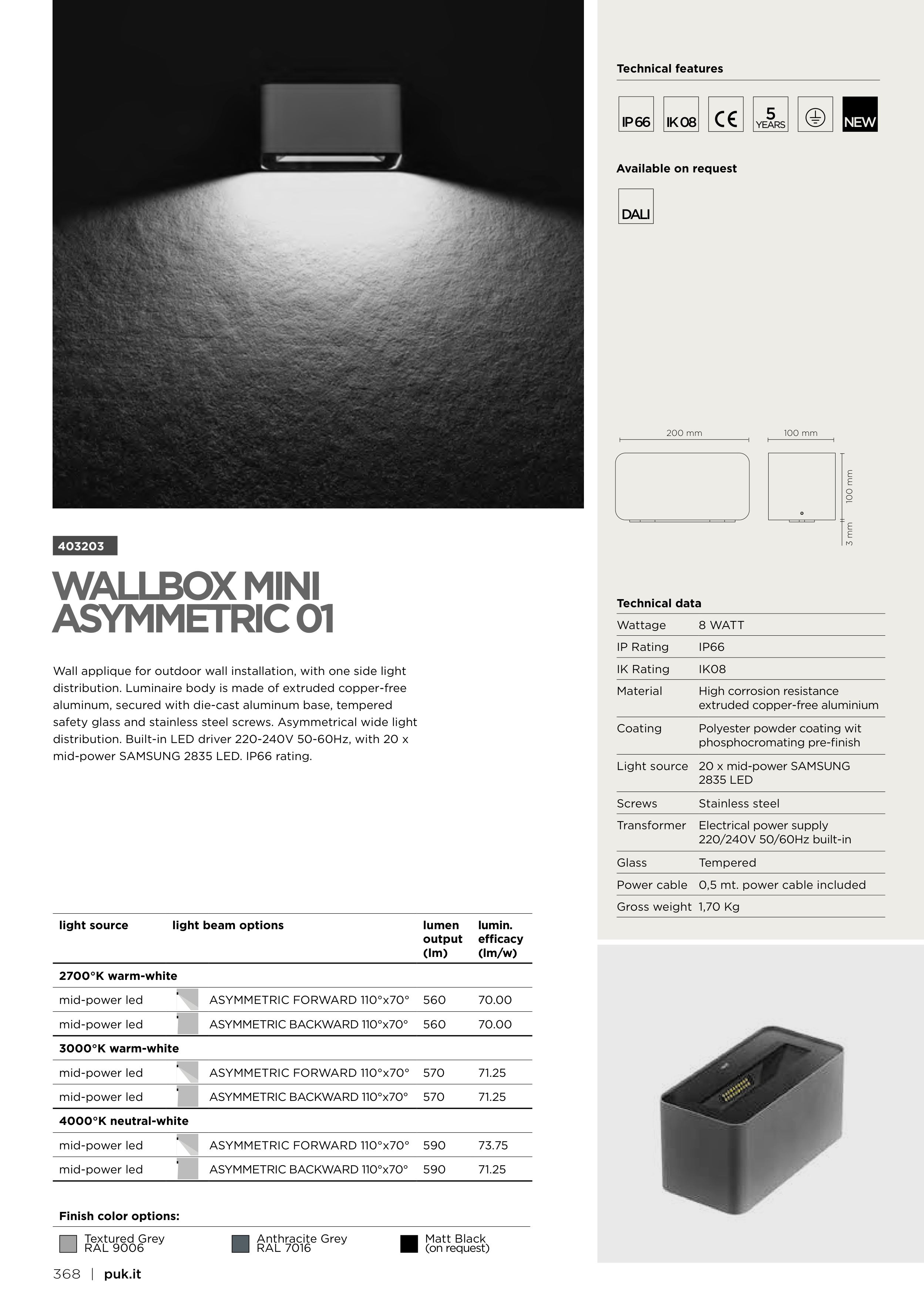

WALLBOX MINI
ASYMMETRIC 01
403203
Technical data
Wattage
8 WATT
IP Rating
IP66
IK Rating
IK08
Material
High corrosion resistance
extruded copper-free aluminium
Coating
Polyester powder coating wit
phosphocromating pre-finish
Light source
20 x mid-power SAMSUNG
2835 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Glass
Tempered
Power cable
0,5 mt. power cable included
Gross weight 1,70 Kg
Finish color options:
light source
light beam options
lumen
output
(lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
mid-power led
ASYMMETRIC FORWARD 110°x70°
560
70.00
mid-power led
ASYMMETRIC BACKWARD 110°x70°
560
70.00
3000°K warm-white
mid-power led
ASYMMETRIC FORWARD 110°x70°
570
71.25
mid-power led
ASYMMETRIC BACKWARD 110°x70°
570
71.25
4000°K neutral-white
mid-power led
ASYMMETRIC FORWARD 110°x70°
590
73.75
mid-power led
ASYMMETRIC BACKWARD 110°x70°
590
71.25
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
DALI
Available on request
