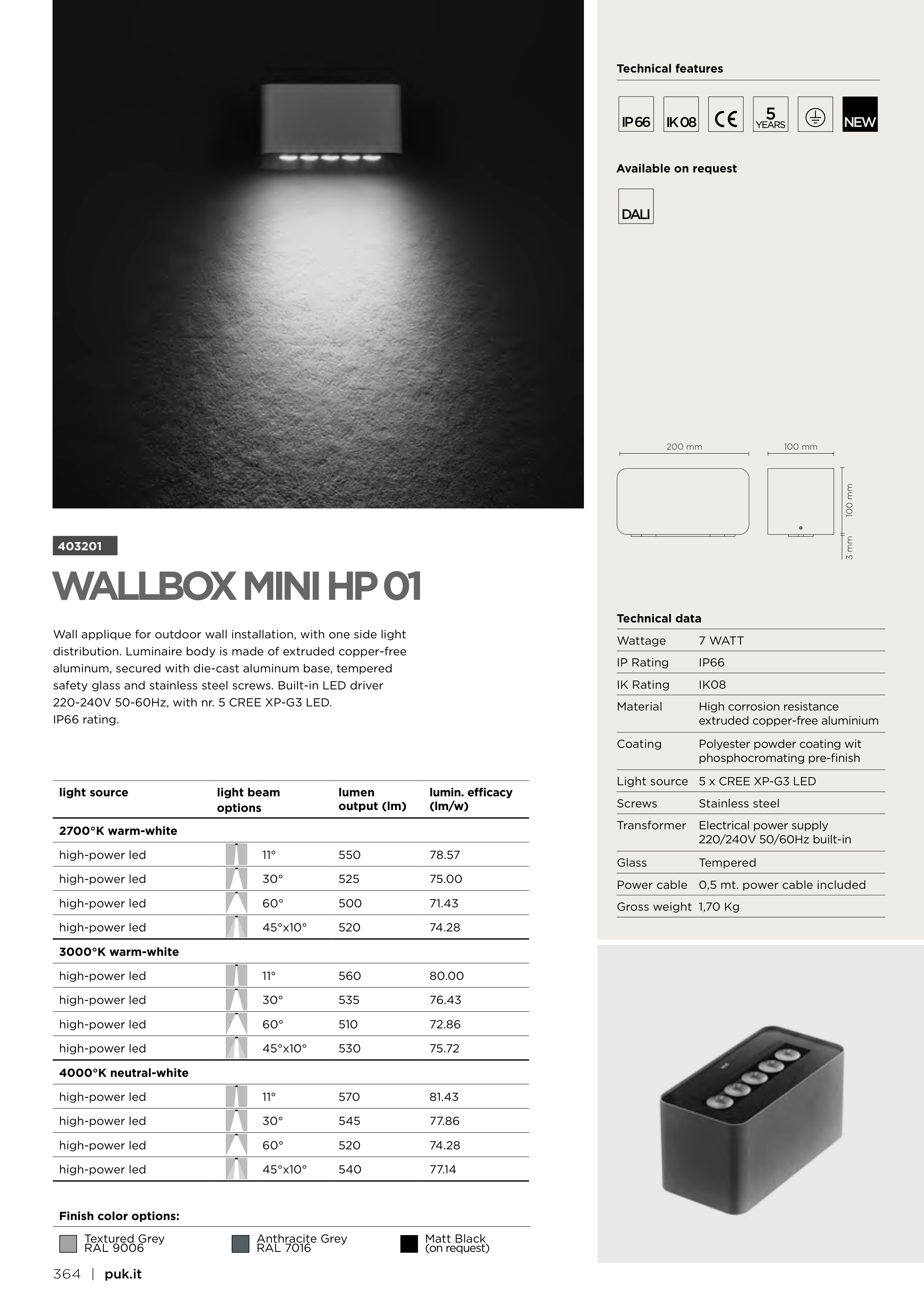

364 | puk.it
Technical data
Wattage
7 WATT
IP Rating
IP66
IK Rating
IK08
Material
High corrosion resistance
extruded copper-free aluminium
Coating
Polyester powder coating wit
phosphocromating pre-finish
Light source
5 x CREE XP-G3 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Glass
Tempered
Power cable
0,5 mt. power cable included
Gross weight 1,70 Kg
200 mm
100 mm
100 mm
3 mm
Technical features
5
NEW
Wall applique for outdoor wall installation, with one side light
distribution. Luminaire body is made of extruded copper-free
aluminum, secured with die-cast aluminum base, tempered
safety glass and stainless steel screws. Built-in LED driver
220-240V 50-60Hz, with nr. 5 CREE XP-G3 LED.
IP66 rating.
WALLBOX MINI HP 01
403201
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
11°
550
78.57
high-power led
30°
525
75.00
high-power led
60°
500
71.43
high-power led
45°x10°
520
74.28
3000°K warm-white
high-power led
11°
560
80.00
high-power led
30°
535
76.43
high-power led
60°
510
72.86
high-power led
45°x10°
530
75.72
4000°K neutral-white
high-power led
11°
570
81.43
high-power led
30°
545
77.86
high-power led
60°
520
74.28
high-power led
45°x10°
540
77.14
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
DALI
Available on request
