Technical data
Wattage
2x2.5 WATT
IP Rating
IP66
IK Rating
IK08
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
2 x CREE “XP-L” LED
Screws
Stainless steel
Remote driver
Constant current
max 700mA
Glass
Tempered
Power cable
0.3 mt. power cable
included
Gross weight
0,65 Kg
AC055
STANDARD GLARE
SHIELD XS
AC066
HONEYCOMB LOUVER
OPTIONAL
AC056
SUPER COMFORT
GLARE SHIELD XS

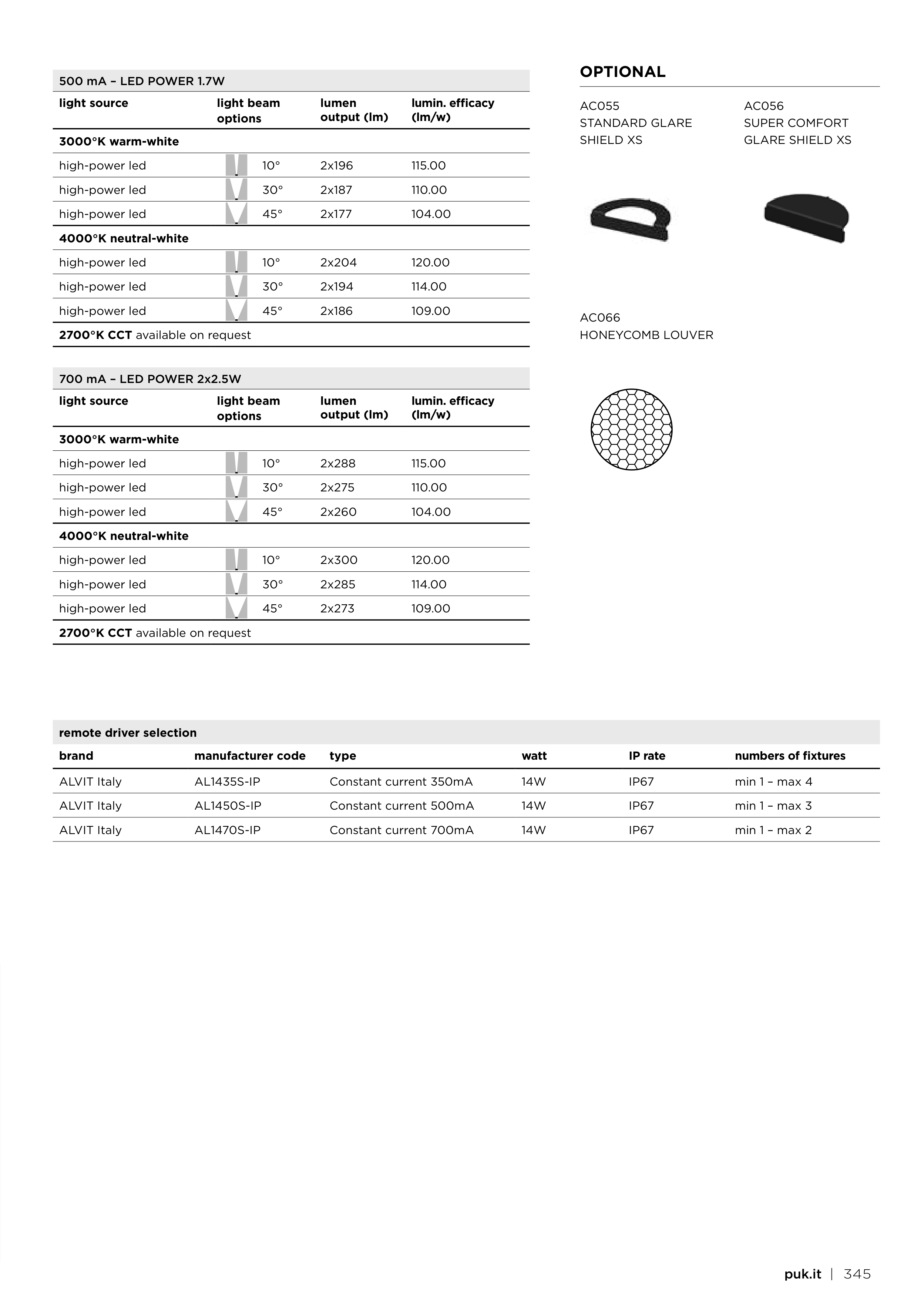

700 mA – LED POWER 2x2.5W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
2x288
115.00
high-power led
30°
2x275
110.00
high-power led
45°
2x260
104.00
4000°K neutral-white
high-power led
10°
2x300
120.00
high-power led
30°
2x285
114.00
high-power led
45°
2x273
109.00
2700°K CCT available on request
500 mA – LED POWER 1.7W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
2x196
115.00
high-power led
30°
2x187
110.00
high-power led
45°
2x177
104.00
4000°K neutral-white
high-power led
10°
2x204
120.00
high-power led
30°
2x194
114.00
high-power led
45°
2x186
109.00
2700°K CCT available on request
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
Constant current 350mA
14W
IP67
min 1 – max 4
ALVIT Italy
AL1450S-IP
Constant current 500mA
14W
IP67
min 1 – max 3
ALVIT Italy
AL1470S-IP
Constant current 700mA
14W
IP67
min 1 – max 2
