344 | puk.it
Wall applique for outdoor installation
on a façade/wall, with up&down light.
Body in anodized aluminum with
phospho-chromatised and polyester
powder coating, tempered safety glass,
moulded silicone gasket and stainless
steel screws. Constant current max
700mA remote driver needed.
With 2 x CREE “XP-L” LED. IP66 rating.

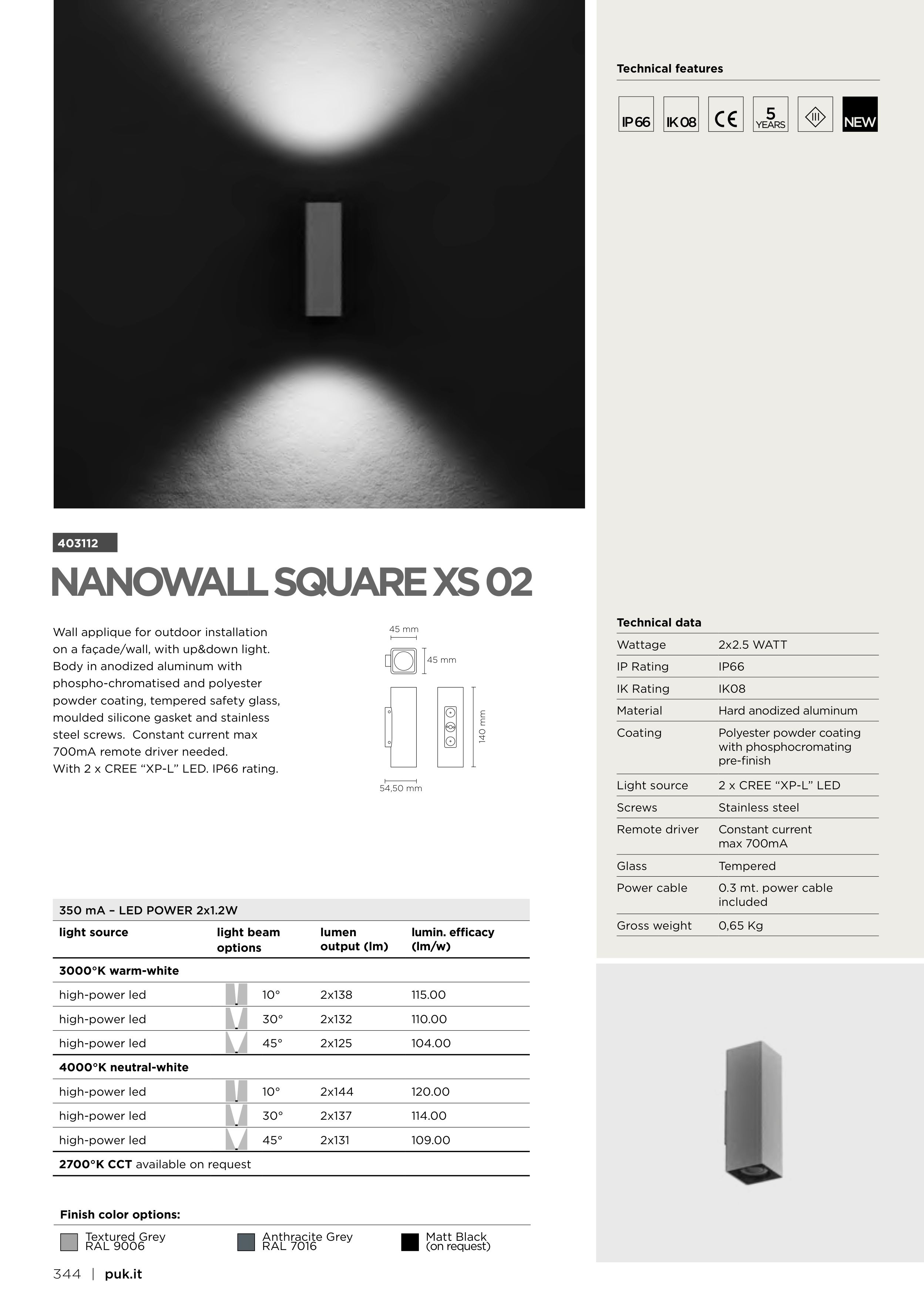

NANOWALL SQUARE XS 02
Technical data
Wattage
2x2.5 WATT
IP Rating
IP66
IK Rating
IK08
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
2 x CREE “XP-L” LED
Screws
Stainless steel
Remote driver
Constant current
max 700mA
Glass
Tempered
Power cable
0.3 mt. power cable
included
Gross weight
0,65 Kg
403112
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Technical features
5
NEW
350 mA – LED POWER 2x1.2W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
2x138
115.00
high-power led
30°
2x132
110.00
high-power led
45°
2x125
104.00
4000°K neutral-white
high-power led
10°
2x144
120.00
high-power led
30°
2x137
114.00
high-power led
45°
2x131
109.00
2700°K CCT available on request
45 mm
45 mm
54,50 mm
140 mm
