340 | puk.it
Technical features
5
NEW
Wall applique for outdoor installation on a façade/wall, with one side light only.
Body in anodized aluminum with phospho-chromatised and polyester powder
coating, tempered safety glass, moulded silicone gasket and stainless steel screws.
Constant current 350mA remote driver needed. With 1 x CREE “XP-G2” LED. IP66
rating.

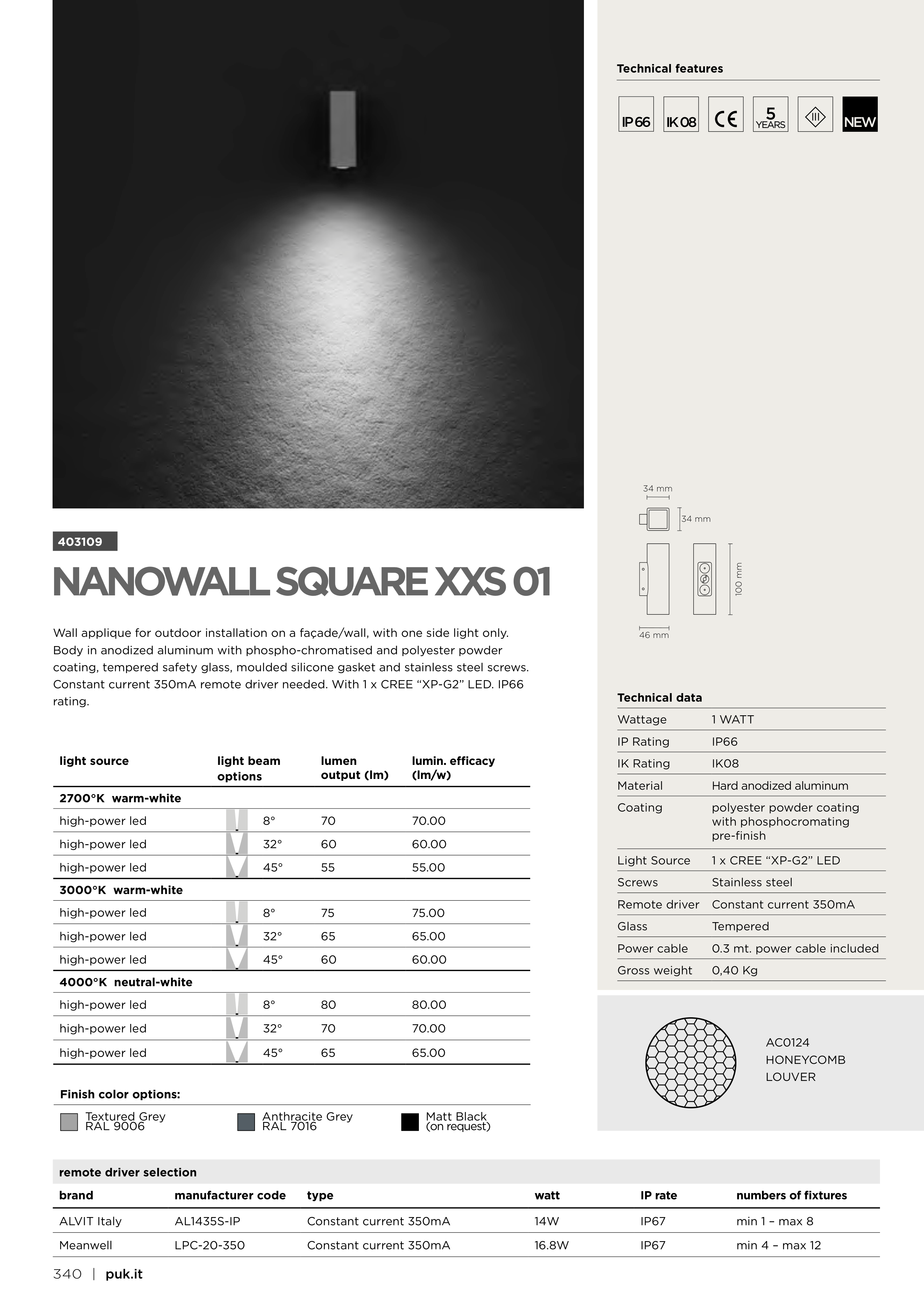

NANOWALL SQUARE XXS 01
403109
Technical data
Wattage
1 WATT
IP Rating
IP66
IK Rating
IK08
Material
Hard anodized aluminum
Coating
polyester powder coating
with phosphocromating
pre-finish
Light Source
1 x CREE “XP-G2” LED
Screws
Stainless steel
Remote driver
Constant current 350mA
Glass
Tempered
Power cable
0.3 mt. power cable included
Gross weight
0,40 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
8°
70
70.00
high-power led
32°
60
60.00
high-power led
45°
55
55.00
3000°K warm-white
high-power led
8°
75
75.00
high-power led
32°
65
65.00
high-power led
45°
60
60.00
4000°K neutral-white
high-power led
8°
80
80.00
high-power led
32°
70
70.00
high-power led
45°
65
65.00
AC0124
HONEYCOMB
LOUVER
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
Constant current 350mA
14W
IP67
min 1 – max 8
Meanwell
LPC-20-350
Constant current 350mA
16.8W
IP67
min 4 – max 12
100 mm
46 mm
34 mm
34 mm
