332 | puk.it
Technical features
5
Wall applique for outdoor installation
on a façade/wall, with one side light only. Body in anodized aluminum with
phospho-chromatised and polyester powder coating, tempered safety glass,
moulded silicone gasket and stainless steel screws.
Constant current max 700mA remote
driver needed. With 1 x CREE “XHP35” LED. IP66 rating.

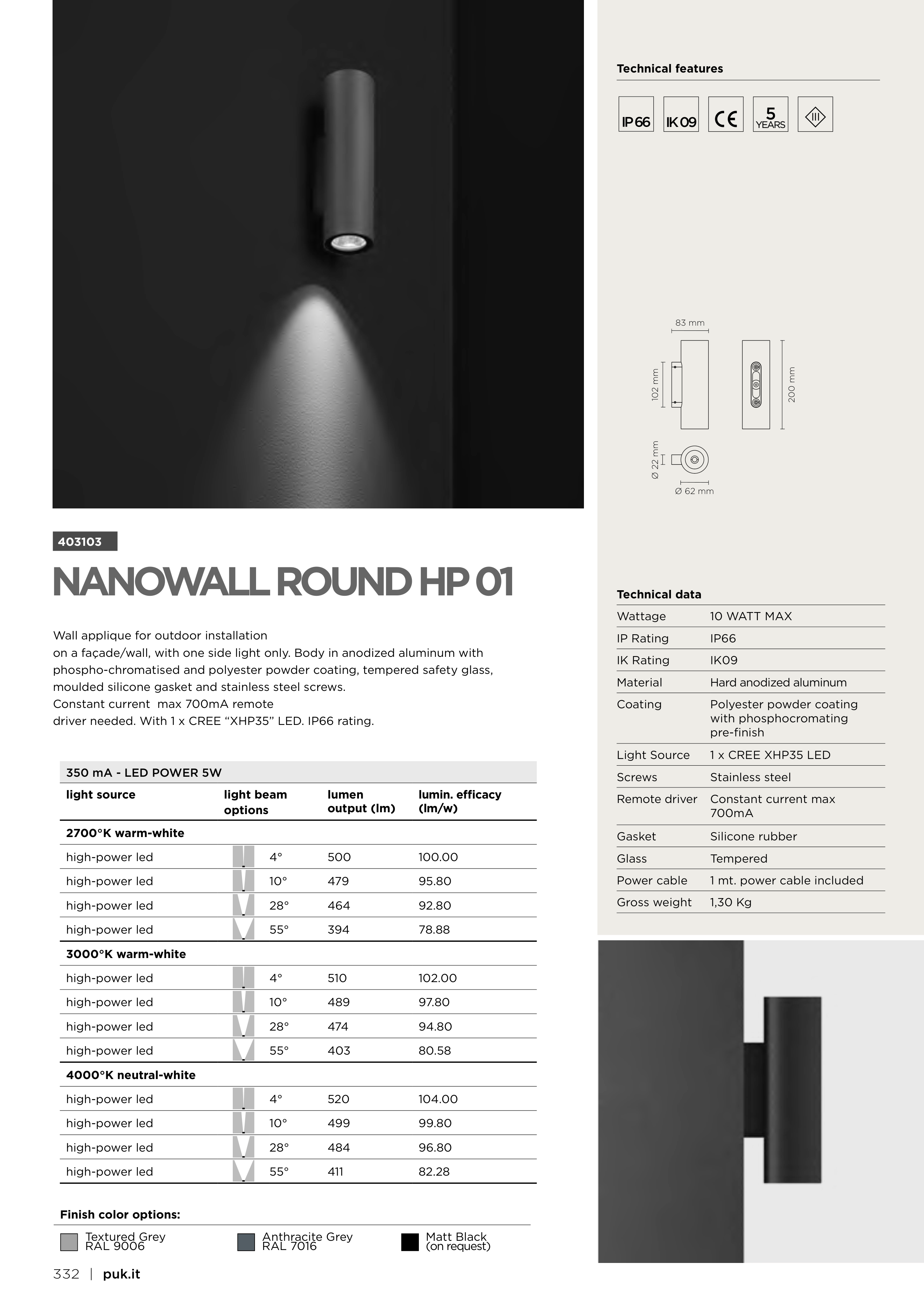

NANOWALL ROUND HP 01
403103
Technical data
Wattage
10 WATT MAX
IP Rating
IP66
IK Rating
IK09
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light Source
1 x CREE XHP35 LED
Screws
Stainless steel
Remote driver
Constant current max
700mA
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
1,30 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
350 mA - LED POWER 5W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
4°
500
100.00
high-power led
10°
479
95.80
high-power led
28°
464
92.80
high-power led
55°
394
78.88
3000°K warm-white
high-power led
4°
510
102.00
high-power led
10°
489
97.80
high-power led
28°
474
94.80
high-power led
55°
403
80.58
4000°K neutral-white
high-power led
4°
520
104.00
high-power led
10°
499
99.80
high-power led
28°
484
96.80
high-power led
55°
411
82.28
Ø 22 mm
Ø 62 mm
200 mm
102 mm
83 mm
