324 | puk.it
Wall applique for outdoor installation on
a façade/wall, with one side light only.
Body in anodized aluminum with phospho-
chromatised and polyester powder coating,
tempered safety glass, moulded silicone
gasket and stainless steel screws. Constant
current max 700mA remote driver needed.
With 1 x CREE “XP-L” LED. IP66 rating.

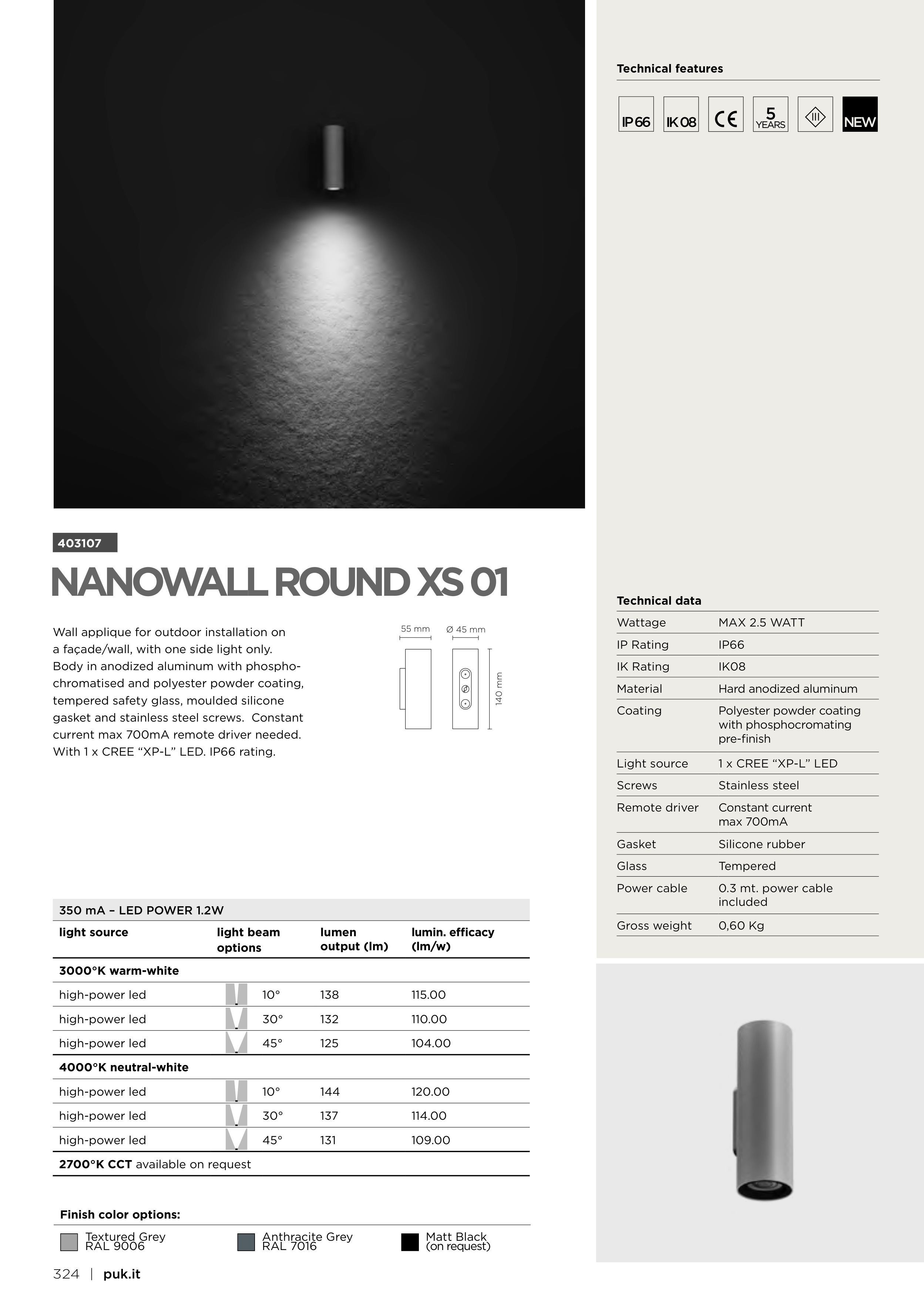

NANOWALL ROUND XS 01
Technical data
Wattage
MAX 2.5 WATT
IP Rating
IP66
IK Rating
IK08
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XP-L” LED
Screws
Stainless steel
Remote driver
Constant current
max 700mA
Gasket
Silicone rubber
Glass
Tempered
Power cable
0.3 mt. power cable
included
Gross weight
0,60 Kg
403107
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Technical features
5
NEW
350 mA – LED POWER 1.2W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
138
115.00
high-power led
30°
132
110.00
high-power led
45°
125
104.00
4000°K neutral-white
high-power led
10°
144
120.00
high-power led
30°
137
114.00
high-power led
45°
131
109.00
2700°K CCT available on request
Ø 45 mm
55 mm
140 mm
