puk.it | 303
Technical data
Wattage
24 WATT
IP Rating
IP68 – 1 METERS DEPTH
IK Rating
IK09
Material
Completely made in stainless
steel AISI 316 L marine grade
Trim
Stainless steel AISI 316 L
marine grade
Light source
NR. 12 x 2W OSRAM LED
Screws
Stainless steel
Remote driver 24V DC NEEDED
Gasket
EPDM rubber
Glass
Tempered
Cable gland
PG11 made in nickel-plated
brass.
Power cable
2 mt. neoprene power cable
included
Recess
housing
Polypropylene material
Gross weight
2,50 Kg
Technical data
Wattage
36 WATT
IP Rating
IP68 – 1 METERS DEPTH
IK Rating
IK09
Material
Completely made in stainless
steel AISI 316 L marine grade
Trim
Stainless steel AISI 316 L
marine grade
Light source
NR. 18 x 2W OSRAM LED
Screws
Stainless steel
Remote driver 24V DC NEEDED
Gasket
EPDM rubber
Glass
Tempered
Cable gland
PG11 made in nickel-plated
brass.
Power cable
2 mt. neoprene power cable
included
Recess
housing
Polypropylene material
Gross weight
3,80 Kg
Technical features
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-60-24
constant voltage 24V DC
60W
IP67
1
Meanwell
LPV-100-24
constant voltage 24V DC
100W
IP67
min 1 - max 2
Finish color options:
Swimming-pool underwater luminaire,
round shape, wall-recessed, completely
made in stainless steel AISI 316L,
polypropylene housing for recess.
24V remote driver needed,
with 18 OSRAM LED. IP 68 rating.

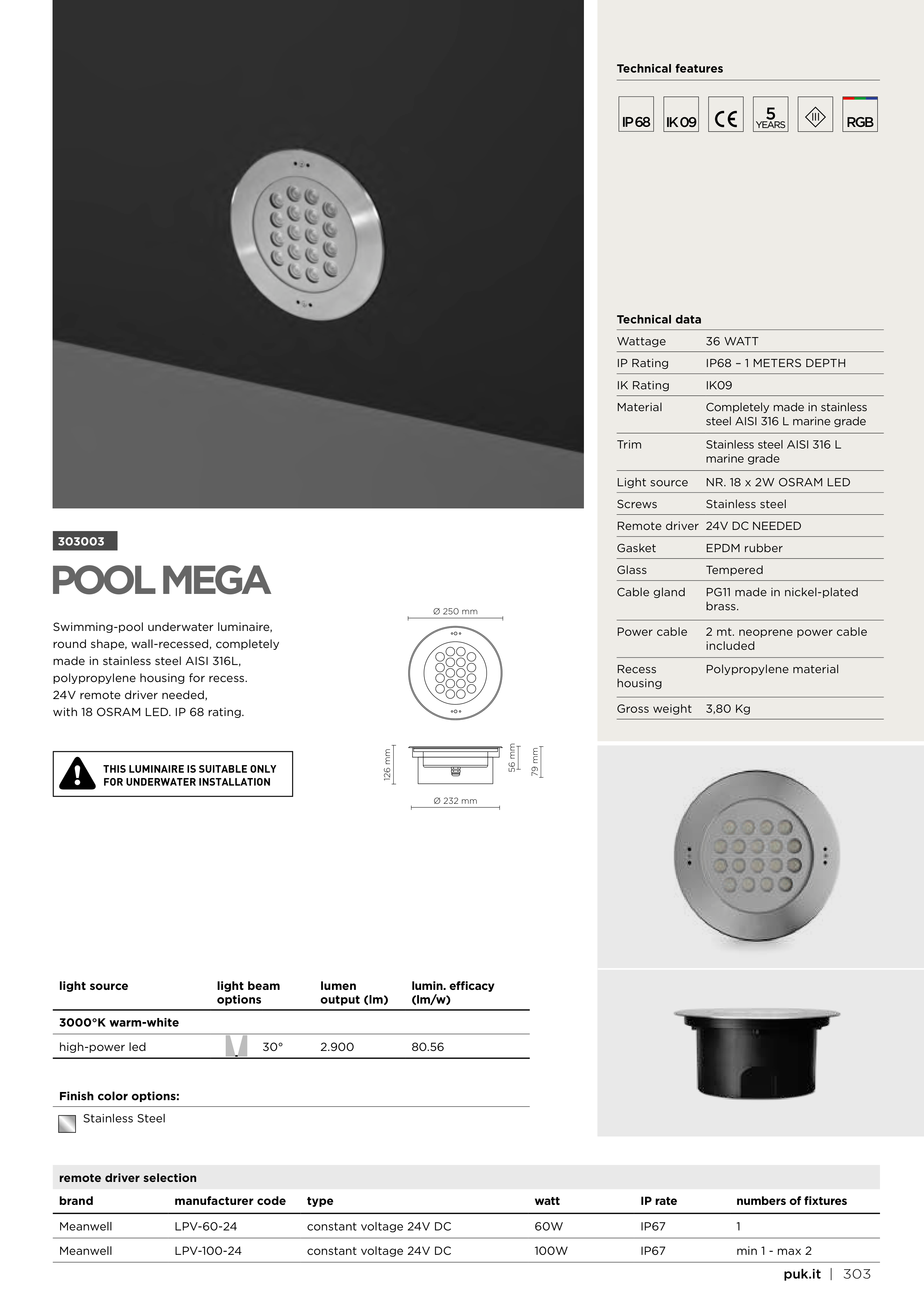

POOL MEGA
303003
Ø 250 mm
Ø 232 mm
126 mm
56 mm
79 mm
Stainless Steel
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
30°
2.900
80.56
THIS LUMINAIRE IS SUITABLE ONLY
FOR UNDERWATER INSTALLATION
5
RGB
