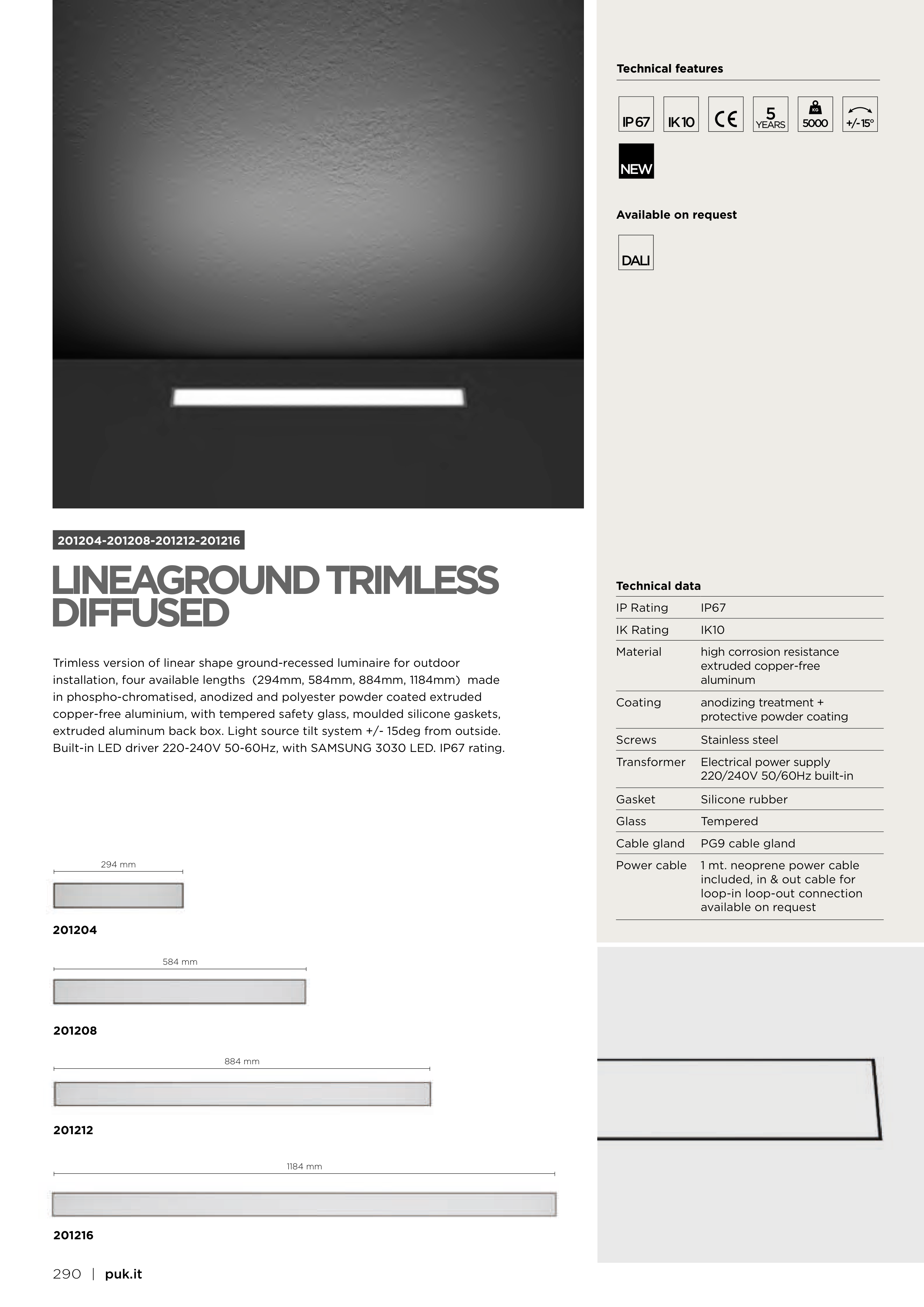

LINEAGROUND TRIMLESS
DIFFUSED
201204-201208-201212-201216
Trimless version of linear shape ground-recessed luminaire for outdoor
installation, four available lengths (294mm, 584mm, 884mm, 1184mm) made
in phospho-chromatised, anodized and polyester powder coated extruded
copper-free aluminium, with tempered safety glass, moulded silicone gaskets,
extruded aluminum back box. Light source tilt system +/- 15deg from outside.
Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.
Technical features
Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
PG9 cable gland
Power cable
1 mt. neoprene power cable
included, in & out cable for
loop-in loop-out connection
available on request
Technical features
5
NEW
5000
+/- 15°
DALI
Available on request
201204
201208
201212
201216
294 mm
584 mm
884 mm
1184 mm
