264 | puk.it

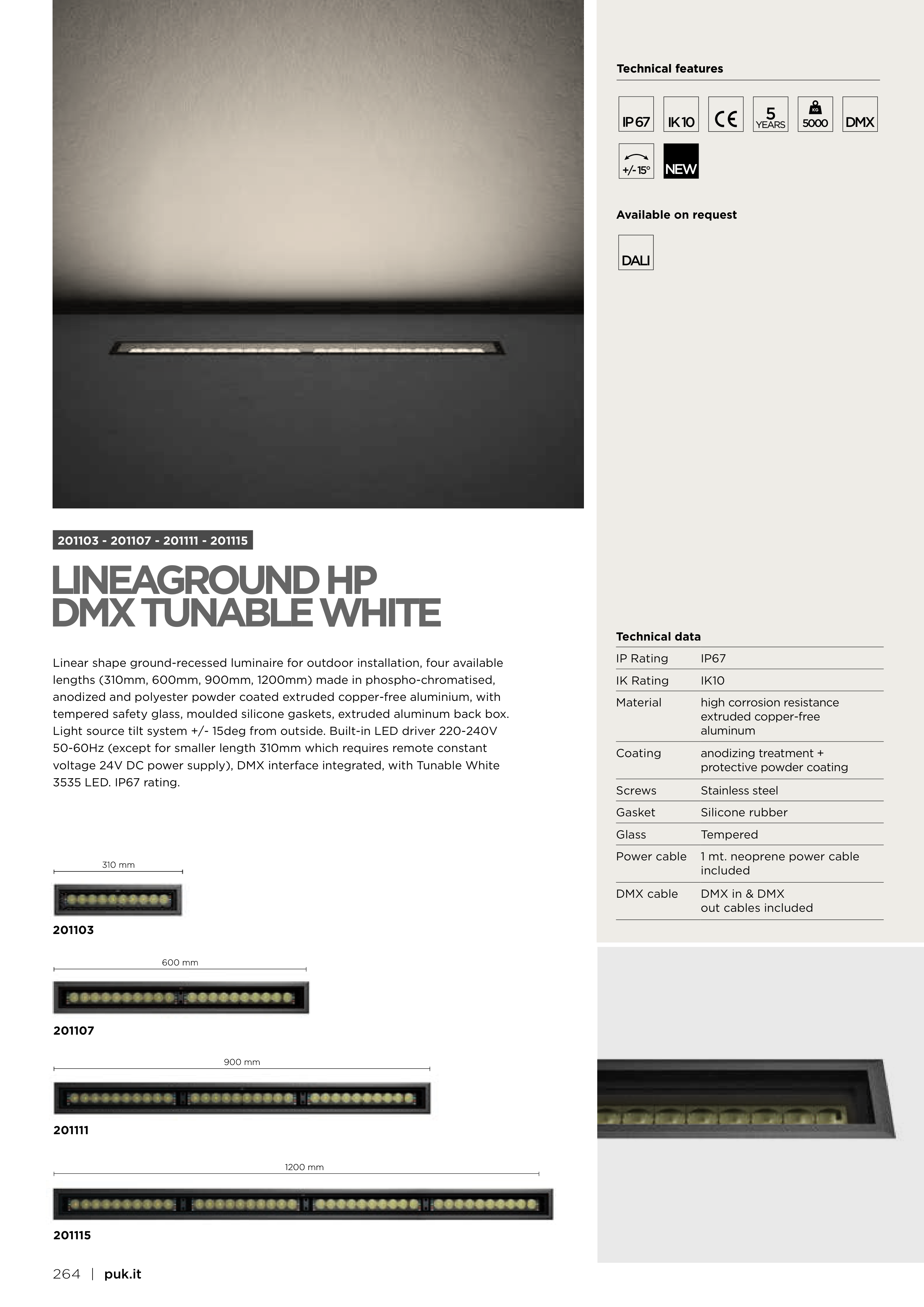

LINEAGROUND HP
DMX TUNABLE WHITE
201103 - 201107 - 201111 - 201115
Linear shape ground-recessed luminaire for outdoor installation, four available
lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised,
anodized and polyester powder coated extruded copper-free aluminium, with
tempered safety glass, moulded silicone gaskets, extruded aluminum back box.
Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V
50-60Hz (except for smaller length 310mm which requires remote constant
voltage 24V DC power supply), DMX interface integrated, with Tunable White
3535 LED. IP67 rating.
Technical features
Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. neoprene power cable
included
DMX cable
DMX in & DMX
out cables included
Technical features
5
NEW
+/- 15°
5000
DMX
DALI
Available on request
310 mm
600 mm
900 mm
1200 mm
201103
201107
201111
201115
310 mm
600 mm
900 mm
1200 mm
