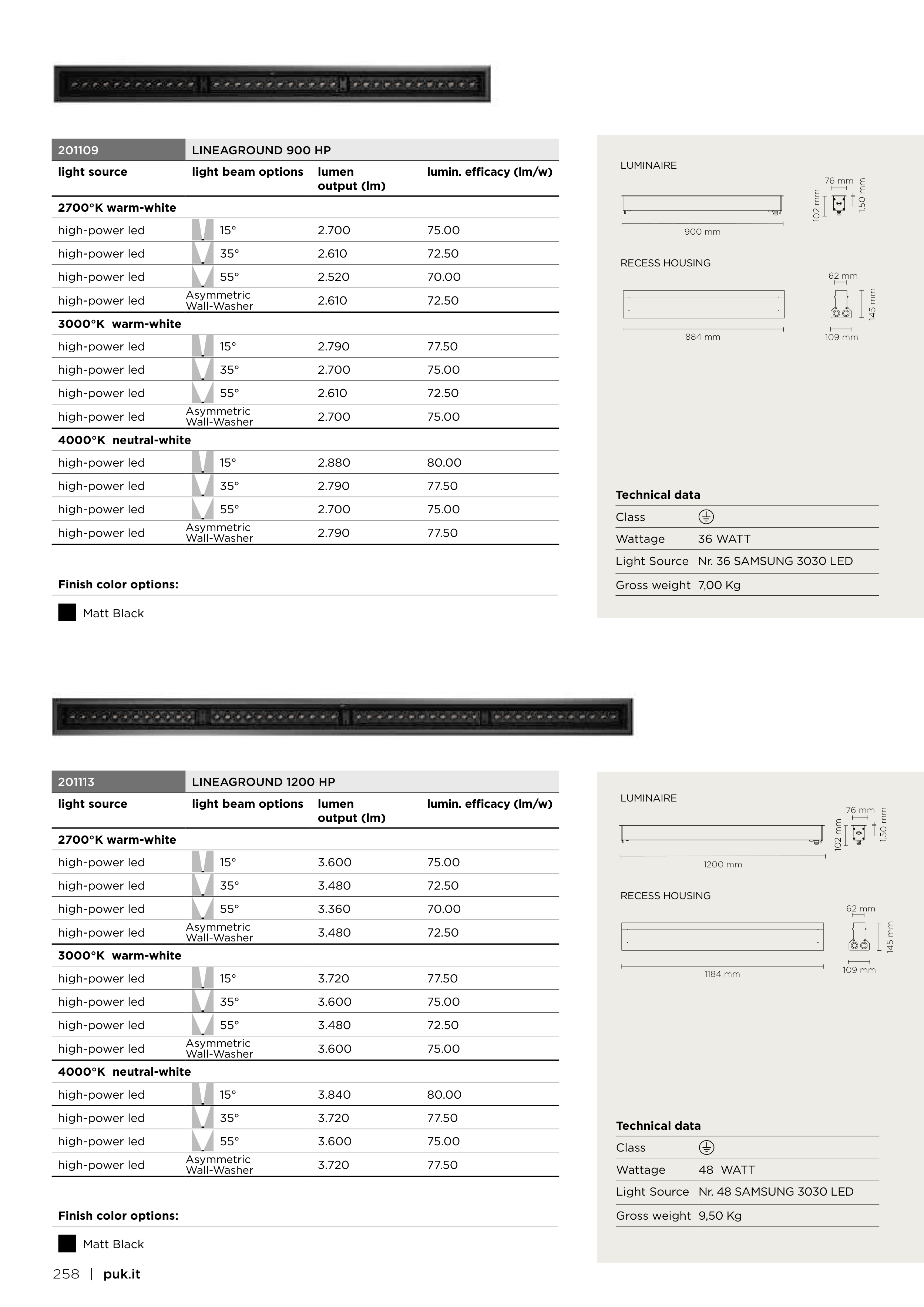

258 | puk.it
201109
LINEAGROUND 900 HP
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
15°
2.700
75.00
high-power led
35°
2.610
72.50
high-power led
55°
2.520
70.00
high-power led
Asymmetric
Wall-Washer
2.610
72.50
3000°K warm-white
high-power led
15°
2.790
77.50
high-power led
35°
2.700
75.00
high-power led
55°
2.610
72.50
high-power led
Asymmetric
Wall-Washer
2.700
75.00
4000°K neutral-white
high-power led
15°
2.880
80.00
high-power led
35°
2.790
77.50
high-power led
55°
2.700
75.00
high-power led
Asymmetric
Wall-Washer
2.790
77.50
201113
LINEAGROUND 1200 HP
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
15°
3.600
75.00
high-power led
35°
3.480
72.50
high-power led
55°
3.360
70.00
high-power led
Asymmetric
Wall-Washer
3.480
72.50
3000°K warm-white
high-power led
15°
3.720
77.50
high-power led
35°
3.600
75.00
high-power led
55°
3.480
72.50
high-power led
Asymmetric
Wall-Washer
3.600
75.00
4000°K neutral-white
high-power led
15°
3.840
80.00
high-power led
35°
3.720
77.50
high-power led
55°
3.600
75.00
high-power led
Asymmetric
Wall-Washer
3.720
77.50
Technical data
Class
Wattage
36 WATT
Light Source Nr. 36 SAMSUNG 3030 LED
Gross weight 7,00 Kg
Technical data
Class
Wattage
48 WATT
Light Source Nr. 48 SAMSUNG 3030 LED
Gross weight 9,50 Kg
Finish color options:
Matt Black
Finish color options:
Matt Black
LUMINAIRE
RECESS HOUSING
900 mm
102 mm
1,50 mm
76 mm
62 mm
884 mm
109 mm
145 mm
LUMINAIRE
RECESS HOUSING
1200 mm
102 mm
1,50 mm
76 mm
62 mm
1184 mm
109 mm
145 mm
