24 | puk.it
Floodlight for outdoor installation on a
façade/wall, with U shape fixing bracket
allowing vertical adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded
silicone gaskets, with screws in stainless steel.
Built-in LED driver, with 1 COB CREE
“CXB 1310” LED. IP66 rating.

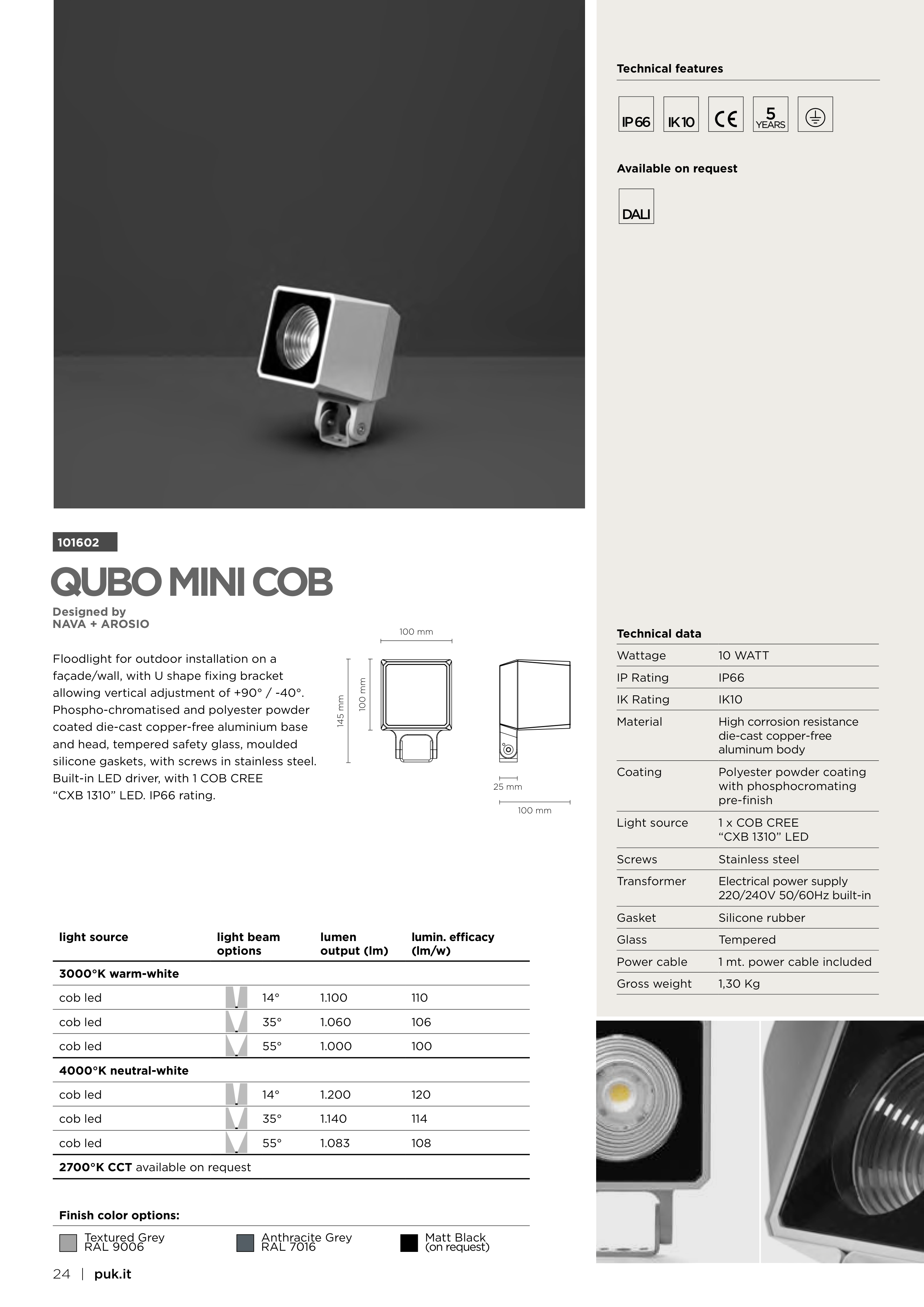

QUBO MINI COB
101602
Technical features
5
Technical data
Wattage
10 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x COB CREE
“CXB 1310” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
1,30 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
14°
1.100
110
cob led
35°
1.060
106
cob led
55°
1.000
100
4000°K neutral-white
cob led
14°
1.200
120
cob led
35°
1.140
114
cob led
55°
1.083
108
2700°K CCT available on request
Designed by
NAVA + AROSIO
100 mm
100 mm
145 mm
100 mm
25 mm
DALI
Available on request
