240 | puk.it
Linear shape ground-recessed luminaire for
outdoor installation. Body in hard anodized
aluminum with phospho-chromatised and
polyester powder coating and frontal cover
in stainless steel AISI 316L, tempered safety
glass. Asymmetric radial beam distribution.
Remote constant current max 700mA driver
needed, with 3 CREE XP-G2 LED. IP68 rating.

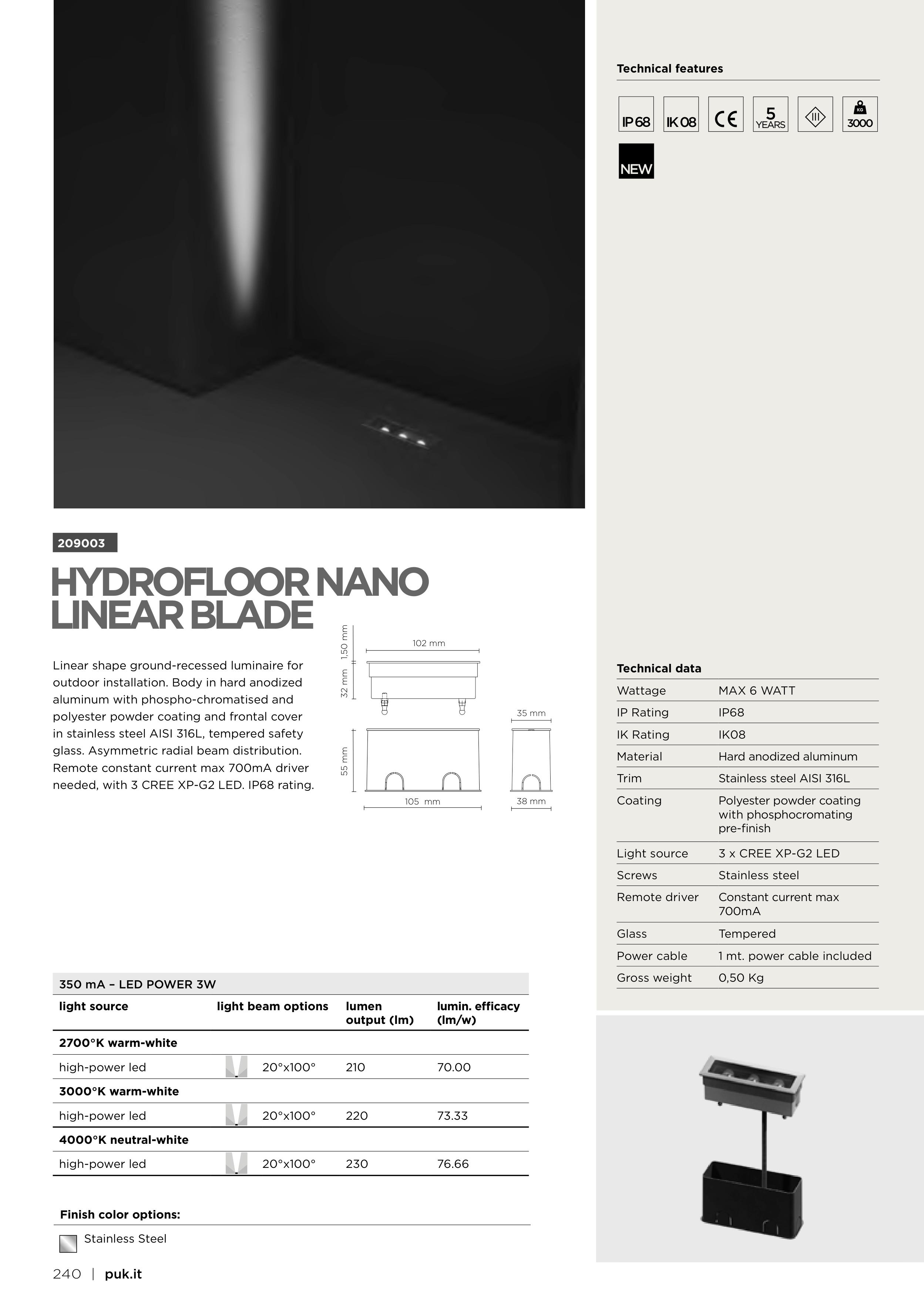

HYDROFLOOR NANO
LINEAR BLADE
Technical data
Wattage
MAX 6 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminum
Trim
Stainless steel AISI 316L
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE XP-G2 LED
Screws
Stainless steel
Remote driver
Constant current max
700mA
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,50 Kg
209003
Finish color options:
Technical features
5
NEW
3000
350 mA – LED POWER 3W
light source
light beam options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
20°x100°
210
70.00
3000°K warm-white
high-power led
20°x100°
220
73.33
4000°K neutral-white
high-power led
20°x100°
230
76.66
Stainless Steel
102 mm
35 mm
32 mm
1,50 mm
55 mm
105 mm
38 mm
