238 | puk.it

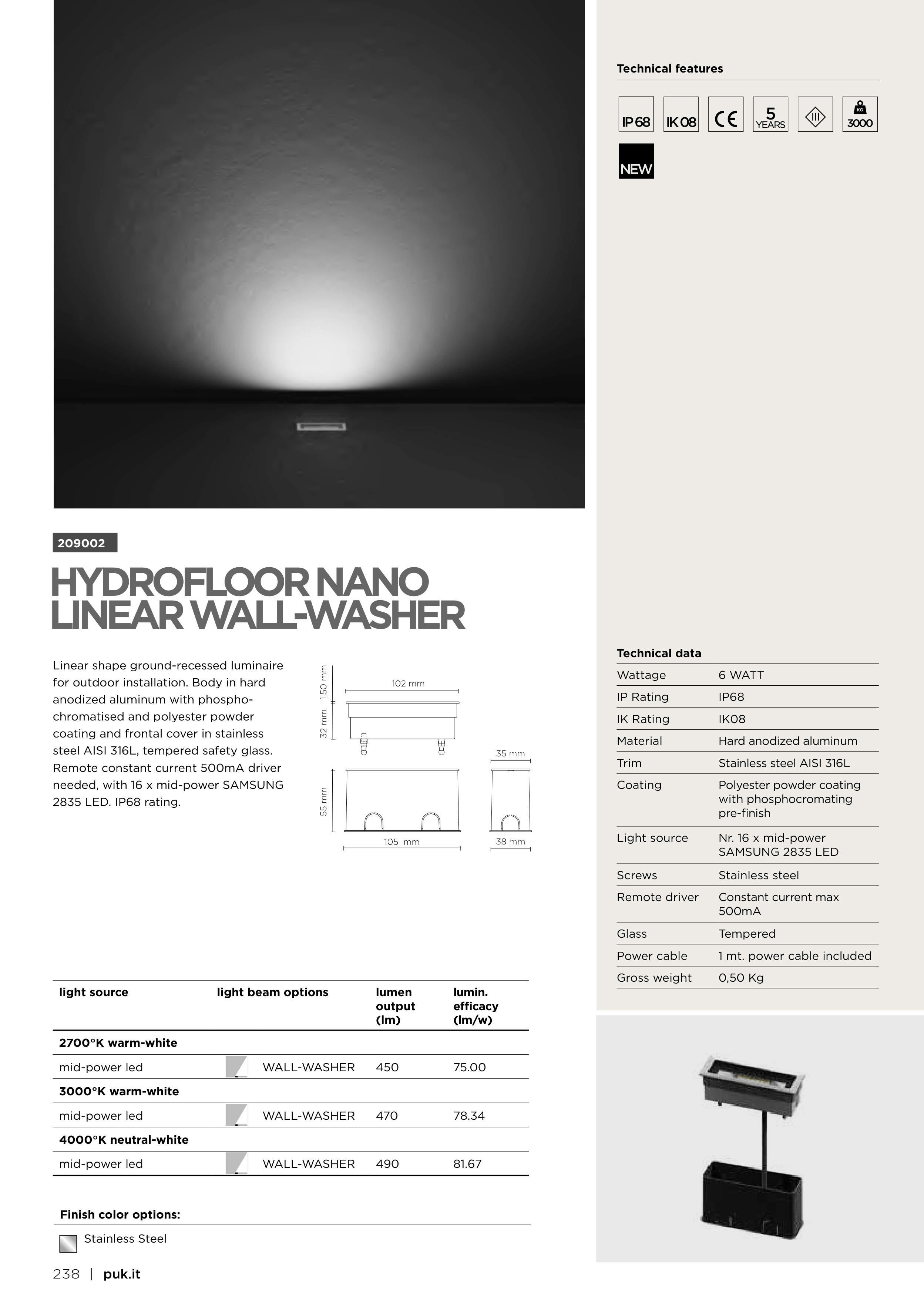

Linear shape ground-recessed luminaire
for outdoor installation. Body in hard
anodized aluminum with phospho-
chromatised and polyester powder
coating and frontal cover in stainless
steel AISI 316L, tempered safety glass.
Remote constant current 500mA driver
needed, with 16 x mid-power SAMSUNG
2835 LED. IP68 rating.
HYDROFLOOR NANO
LINEAR WALL-WASHER
Technical data
Wattage
6 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminum
Trim
Stainless steel AISI 316L
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
Nr. 16 x mid-power
SAMSUNG 2835 LED
Screws
Stainless steel
Remote driver
Constant current max
500mA
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,50 Kg
209002
Finish color options:
Technical features
5
NEW
3000
light source
light beam options
lumen
output
(lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
mid-power led
WALL-WASHER
450
75.00
3000°K warm-white
mid-power led
WALL-WASHER
470
78.34
4000°K neutral-white
mid-power led
WALL-WASHER
490
81.67
Stainless Steel
102 mm
35 mm
32 mm
1,50 mm
55 mm
105 mm
38 mm
