Technical data
Wattage
MAX 6 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminum
Trim
Stainless steel AISI 316L
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE XP-G2 LED
Screws
Stainless steel
Remote driver
Constant current max
700mA
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,50 Kg
500 mA – LED POWER 4.5W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
8°
378
83.75
high-power led
32°
360
80.25
high-power led
45°
350
77.75
3000°K warm-white
high-power led
8°
387
86.25
high-power led
32°
373
82.75
high-power led
45°
360
80.25
4000°K neutral-white
high-power led
8°
396
87.88
high-power led
32°
380
84.50
high-power led
45°
369
82.00
700 mA – LED POWER 6W
light source
light beam
options
lumen
output (lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
high-power led
8°
538
89.70
high-power led
32°
512
85.33
high-power led
45°
501
83.60
3000°K warm-white
high-power led
8°
546
90.69
high-power led
32°
522
87.20
high-power led
45°
507
84.60
4000°K neutral-white
high-power led
8°
558
93.00
high-power led
32°
534
89.00
high-power led
45°
518
86.30
Trimless version, all other details are same
as model 209001

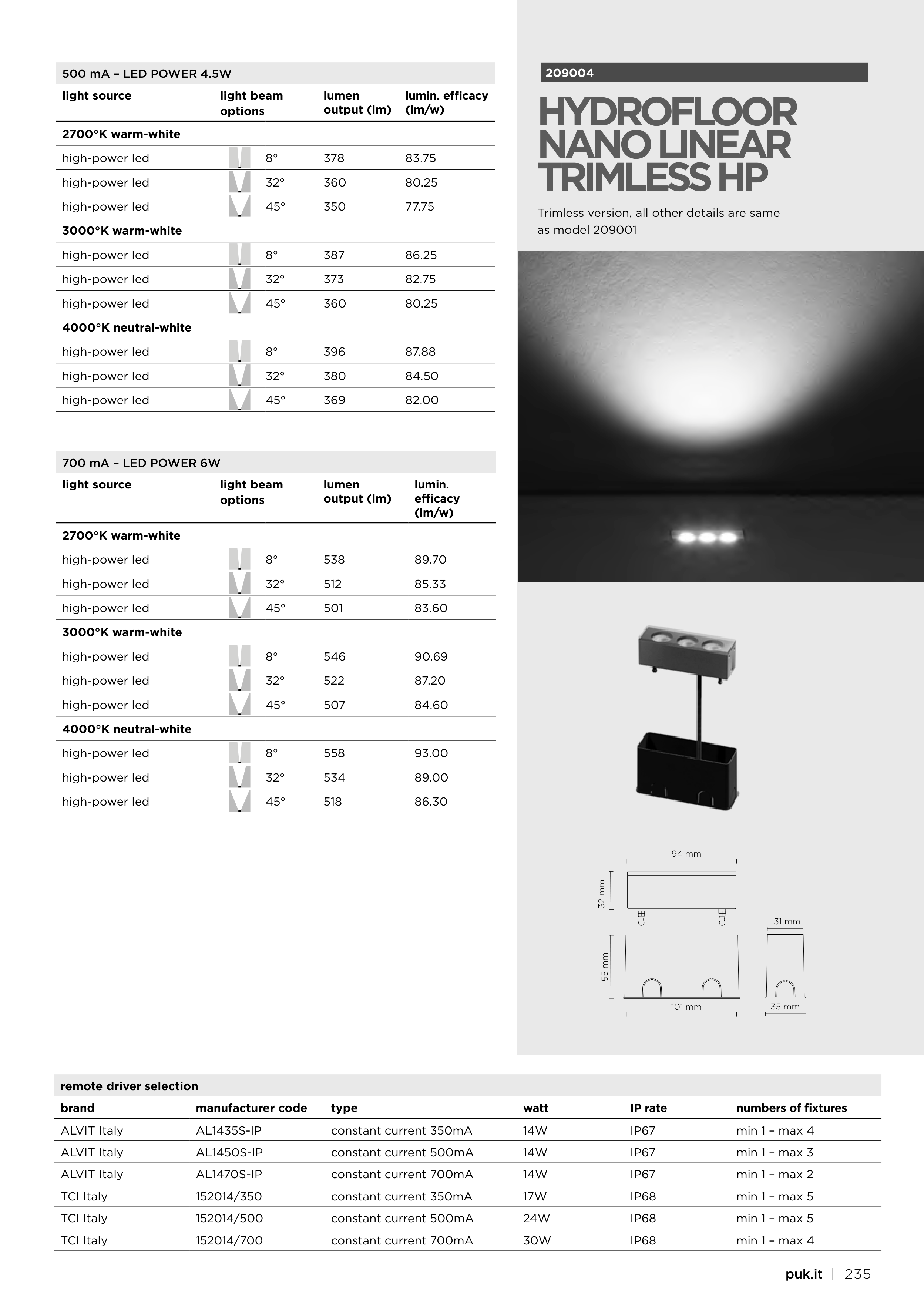

HYDROFLOOR
NANO LINEAR
TRIMLESS HP
209004
32 mm
55 mm
94 mm
101 mm
31 mm
35 mm
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
constant current 350mA
14W
IP67
min 1 – max 4
ALVIT Italy
AL1450S-IP
constant current 500mA
14W
IP67
min 1 – max 3
ALVIT Italy
AL1470S-IP
constant current 700mA
14W
IP67
min 1 – max 2
TCI Italy
152014/350
constant current 350mA
17W
IP68
min 1 – max 5
TCI Italy
152014/500
constant current 500mA
24W
IP68
min 1 – max 5
TCI Italy
152014/700
constant current 700mA
30W
IP68
min 1 – max 4
