234 | puk.it
Linear shape ground-recessed luminaire
for outdoor installation. Body in hard
anodized aluminum with phospho-
chromatised and polyester powder
coating and frontal cover in stainless
steel AISI 316L, tempered safety glass.
Remote constant current max 700mA
driver needed, with 3 CREE XP-G2 LED.
IP68 rating.

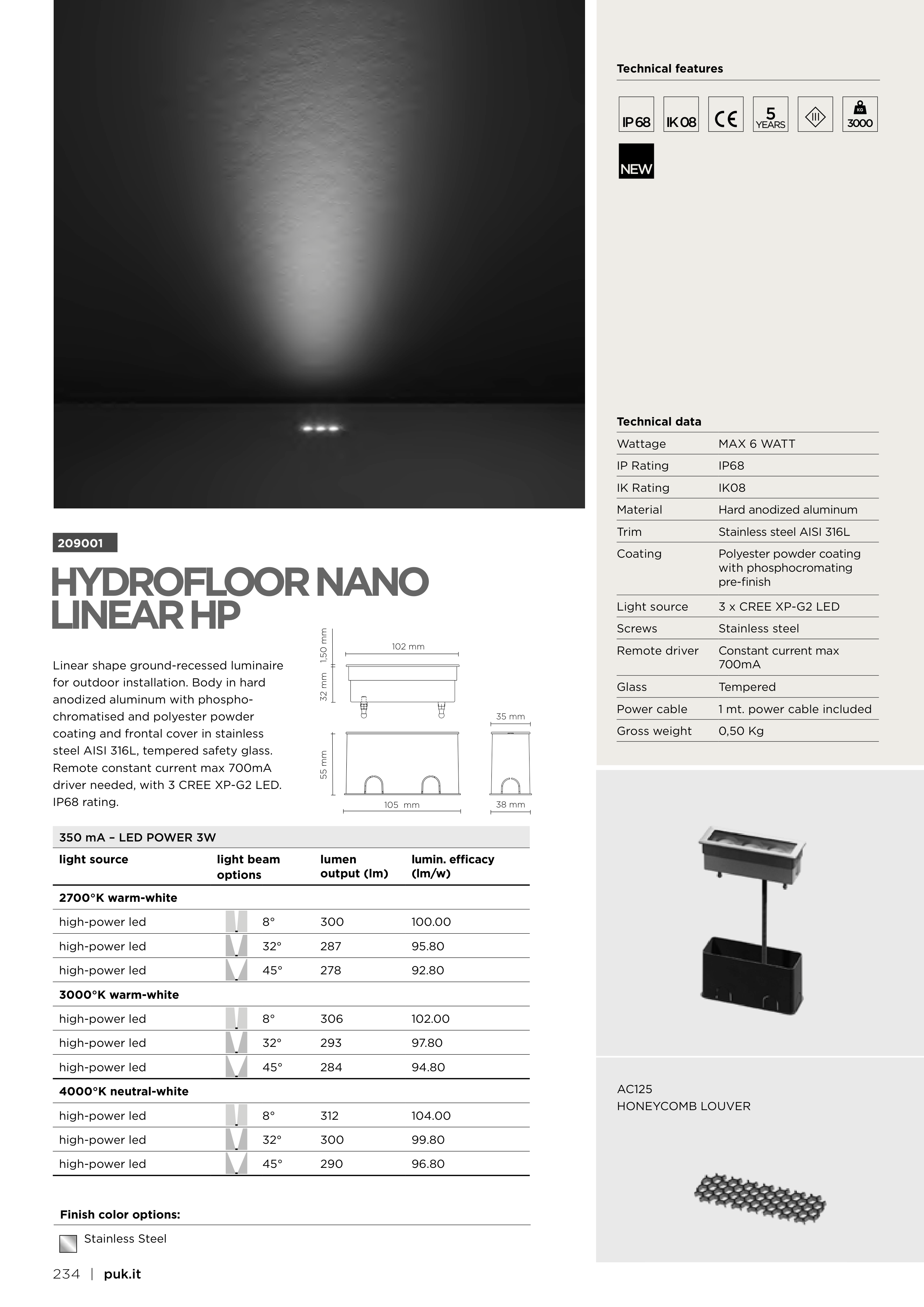

HYDROFLOOR NANO
LINEAR HP
Technical data
Wattage
MAX 6 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminum
Trim
Stainless steel AISI 316L
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE XP-G2 LED
Screws
Stainless steel
Remote driver
Constant current max
700mA
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,50 Kg
209001
Finish color options:
Technical features
5
NEW
3000
350 mA – LED POWER 3W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
8°
300
100.00
high-power led
32°
287
95.80
high-power led
45°
278
92.80
3000°K warm-white
high-power led
8°
306
102.00
high-power led
32°
293
97.80
high-power led
45°
284
94.80
4000°K neutral-white
high-power led
8°
312
104.00
high-power led
32°
300
99.80
high-power led
45°
290
96.80
Stainless Steel
AC125
HONEYCOMB LOUVER
102 mm
35 mm
32 mm
1,50 mm
55 mm
105 mm
38 mm
