232 | puk.it
Uplight for outdoor installation on
a ground/floor surface. Phospho-
chromatised and polyester powder
coated die-cast copper-free aluminium,
tempered safety glass and stainless steel
screws. Remote constant current max
700mA needed, with 6 CREE XP-G3 LED.
IP67 rating

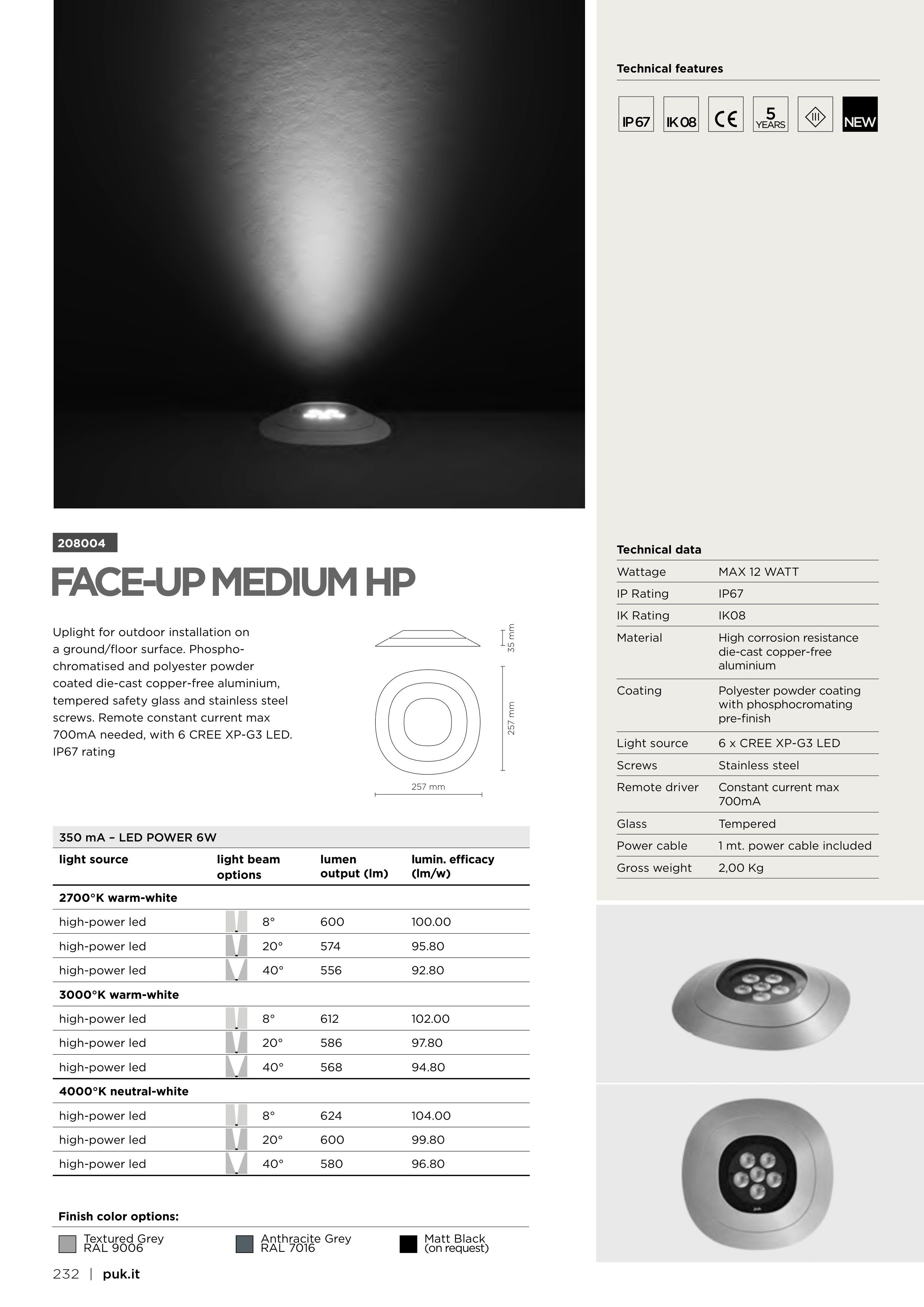

FACE-UP MEDIUM HP
Technical data
Wattage
MAX 12 WATT
IP Rating
IP67
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminium
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
6 x CREE XP-G3 LED
Screws
Stainless steel
Remote driver
Constant current max
700mA
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
2,00 Kg
208004
Technical features
5
NEW
350 mA – LED POWER 6W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
8°
600
100.00
high-power led
20°
574
95.80
high-power led
40°
556
92.80
3000°K warm-white
high-power led
8°
612
102.00
high-power led
20°
586
97.80
high-power led
40°
568
94.80
4000°K neutral-white
high-power led
8°
624
104.00
high-power led
20°
600
99.80
high-power led
40°
580
96.80
35 mm
257 mm
257 mm
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
