22 | puk.it
Floodlight for outdoor installation on a
façade/wall, with U shape fixing bracket
allowing vertical adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded
silicone gaskets, with screws in stainless steel.
Remote 24V DC power supply needed,
with 1 x CREE “XHP35” LED. IP66 rating.

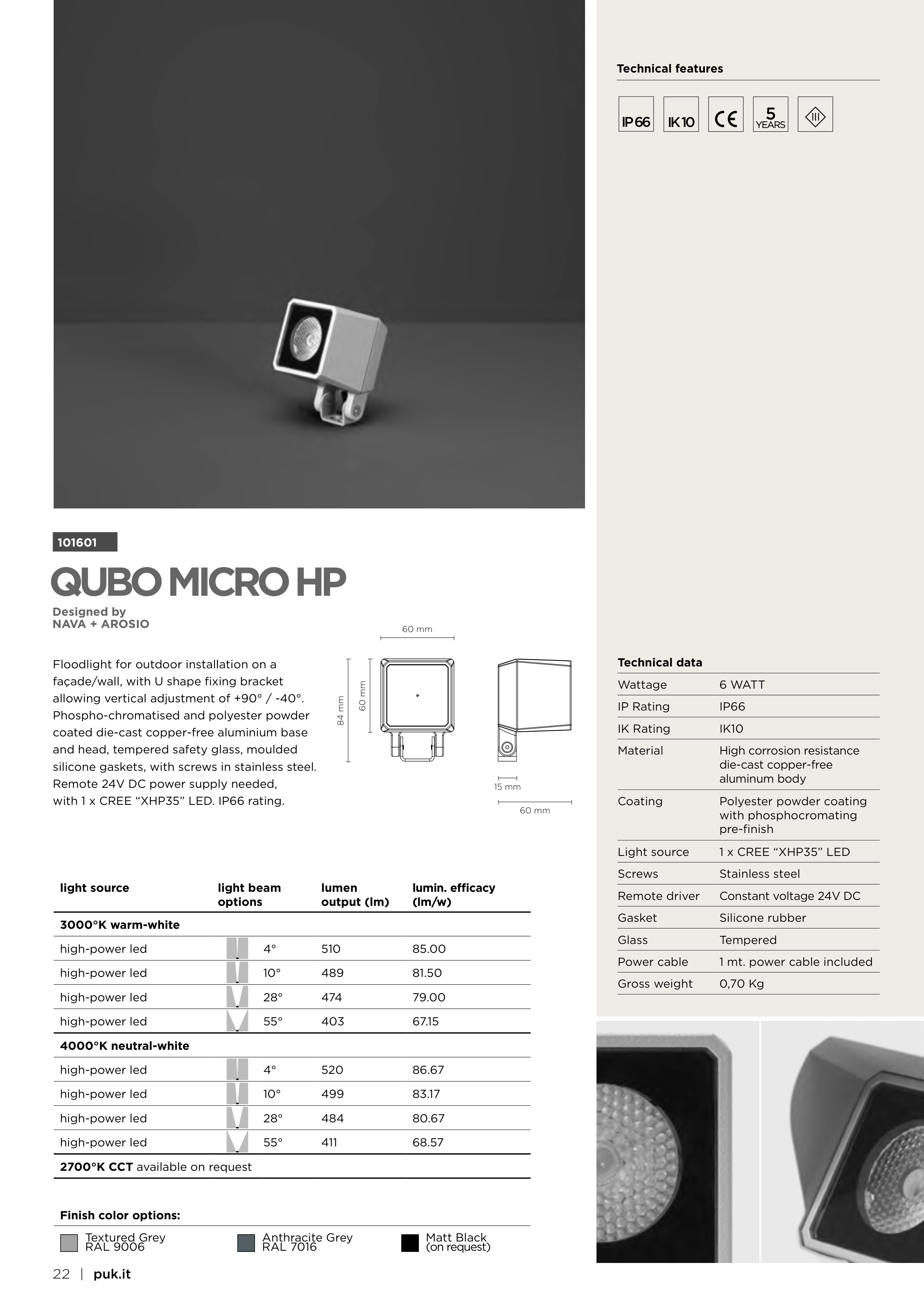

QUBO MICRO HP
101601
60 mm
60 mm
Technical features
5
Technical data
Wattage
6 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XHP35” LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,70 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
510
85.00
high-power led
10°
489
81.50
high-power led
28°
474
79.00
high-power led
55°
403
67.15
4000°K neutral-white
high-power led
4°
520
86.67
high-power led
10°
499
83.17
high-power led
28°
484
80.67
high-power led
55°
411
68.57
2700°K CCT available on request
Designed by
NAVA + AROSIO
84 mm
60 mm
15 mm
