puk.it | 181
Technical data
Wattage
3 WATT
IP Rating
IP67
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free aluminum
Trim
High corrosion resistance
die-cast copper-free aluminum
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
NR. 1 CREE XP-G2 LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Diffuser
Polycarbonate
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
1,00 Kg

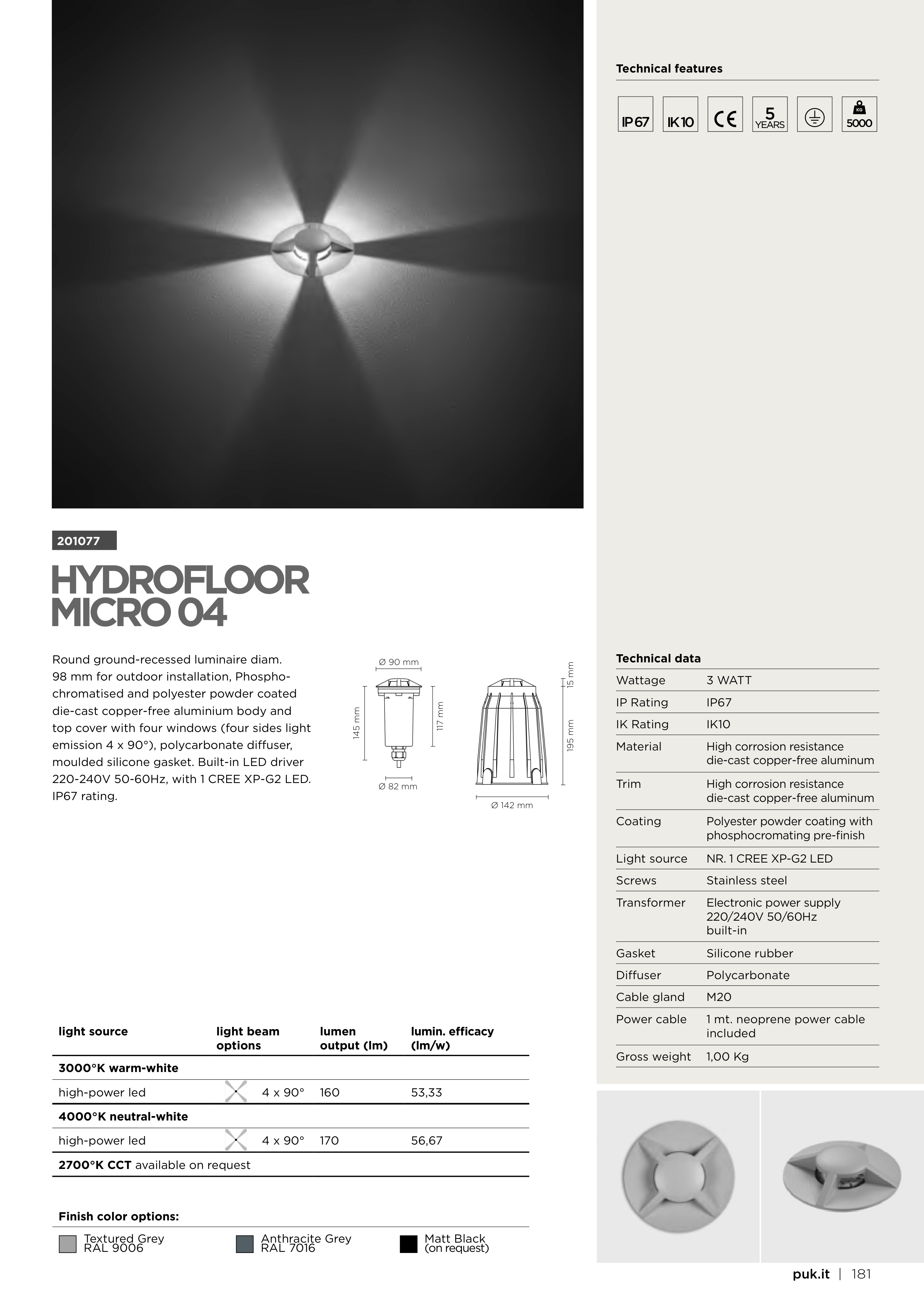

Technical features
Round ground-recessed luminaire diam.
98 mm for outdoor installation, Phospho-
chromatised and polyester powder coated
die-cast copper-free aluminium body and
top cover with four windows (four sides light
emission 4 x 90°), polycarbonate diffuser,
moulded silicone gasket. Built-in LED driver
220-240V 50-60Hz, with 1 CREE XP-G2 LED.
IP67 rating.
201077
HYDROFLOOR
MICRO 04
5
5000
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4 x 90°
160
53,33
4000°K neutral-white
high-power led
4 x 90°
170
56,67
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Technical data
Wattage
3 WATT
IP Rating
IP67
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free aluminum
Trim
High corrosion resistance
die-cast copper-free aluminum
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
NR. 1 CREE XP-G2 LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Diffuser
Polycarbonate
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
1,00 Kg
Ø 90 mm
145 mm
Ø 82 mm
117 mm
Ø 142 mm
195 mm
15 mm
