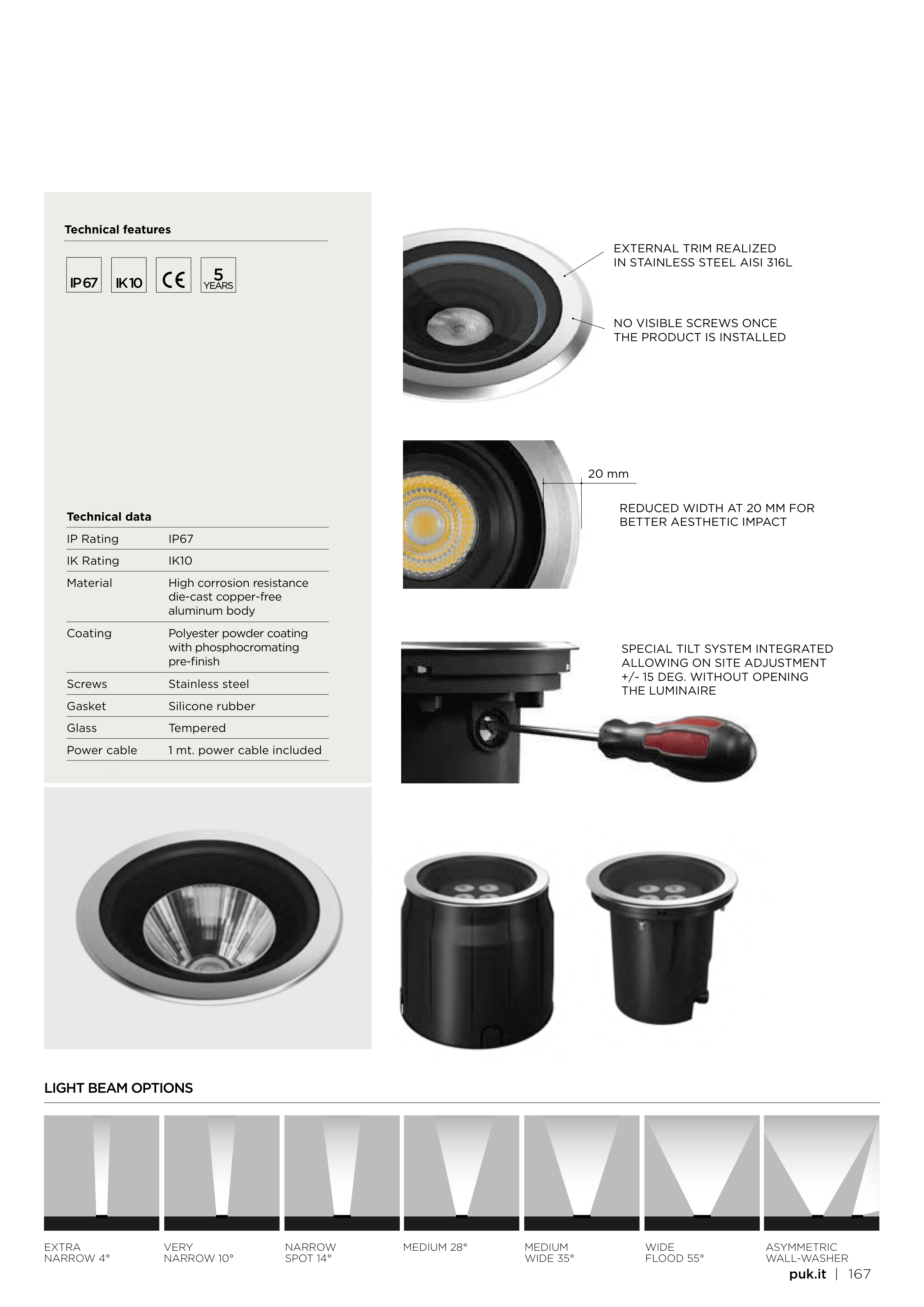

Technical data
IP Rating
IP67
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Technical features
5
EXTERNAL TRIM REALIZED
IN STAINLESS STEEL AISI 316L
NO VISIBLE SCREWS ONCE
THE PRODUCT IS INSTALLED
REDUCED WIDTH AT 20 MM FOR
BETTER AESTHETIC IMPACT
20 mm
SPECIAL TILT SYSTEM INTEGRATED
ALLOWING ON SITE ADJUSTMENT
+/- 15 DEG. WITHOUT OPENING
THE LUMINAIRE
EXTRA
NARROW 4°
VERY
NARROW 10°
NARROW
SPOT 14°
MEDIUM 28°
MEDIUM
WIDE 35°
WIDE
FLOOD 55°
ASYMMETRIC
WALL-WASHER
LIGHT BEAM OPTIONS
