Technical data
Wattage
13 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB1512 COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
5,40 Kg

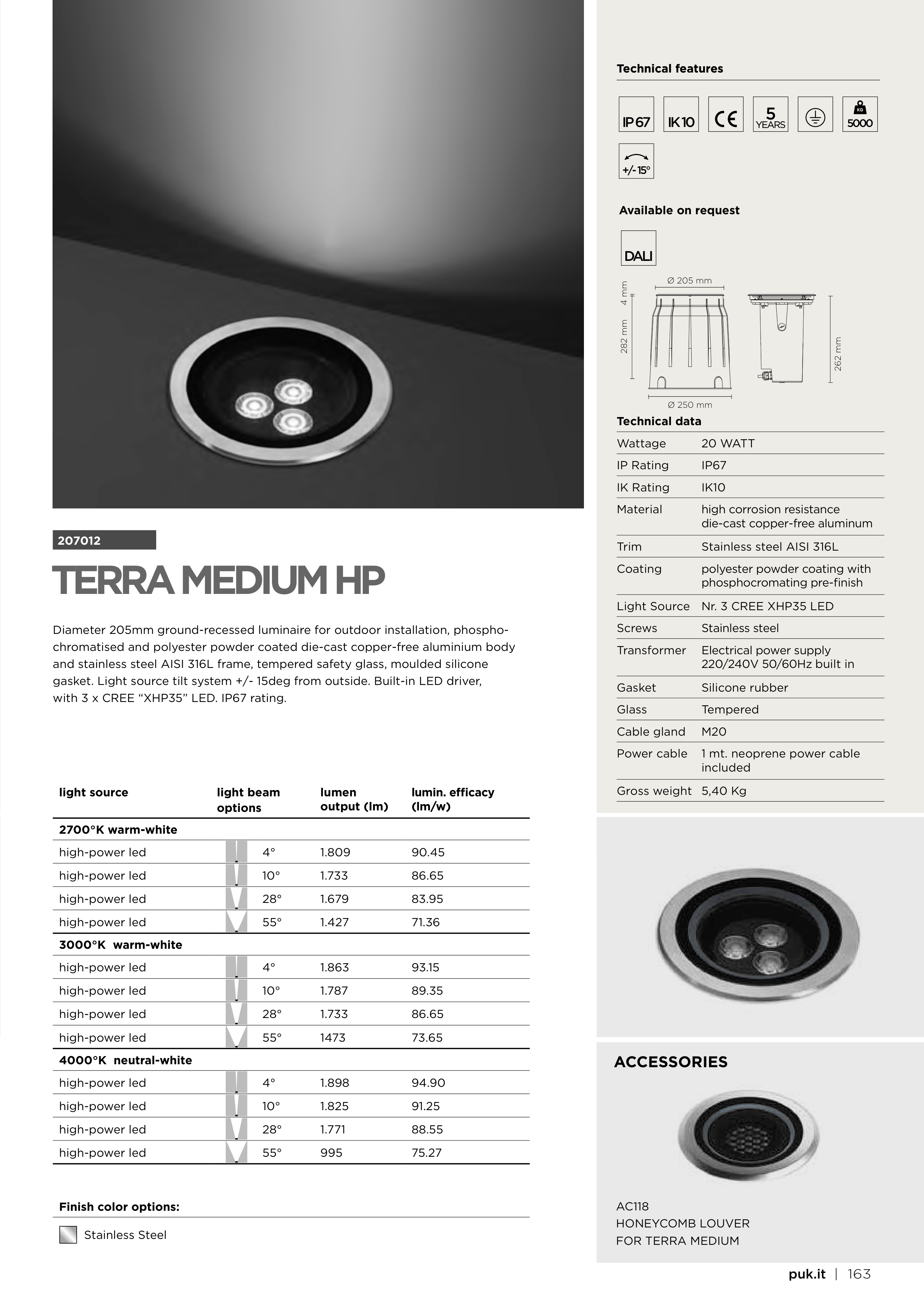

TERRA MEDIUM HP
207012
Diameter 205mm ground-recessed luminaire for outdoor installation, phospho-
chromatised and polyester powder coated die-cast copper-free aluminium body
and stainless steel AISI 316L frame, tempered safety glass, moulded silicone
gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver,
with 3 x CREE “XHP35” LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
4°
1.809
90.45
high-power led
10°
1.733
86.65
high-power led
28°
1.679
83.95
high-power led
55°
1.427
71.36
3000°K warm-white
high-power led
4°
1.863
93.15
high-power led
10°
1.787
89.35
high-power led
28°
1.733
86.65
high-power led
55°
1473
73.65
4000°K neutral-white
high-power led
4°
1.898
94.90
high-power led
10°
1.825
91.25
high-power led
28°
1.771
88.55
high-power led
55°
995
75.27
Technical features
Technical data
Wattage
20 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 3 CREE XHP35 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
5,40 Kg
Technical features
5
+/- 15°
5000
DALI
Available on request
Stainless Steel
Finish color options:
Ø 205 mm
282 mm
Ø 250 mm
262 mm
4 mm
AC118
HONEYCOMB LOUVER
FOR TERRA MEDIUM
ACCESSORIES
AC118
HONEYCOMB LOUVER
FOR TERRA MEDIUM
ACCESSORIES
