162 | puk.it

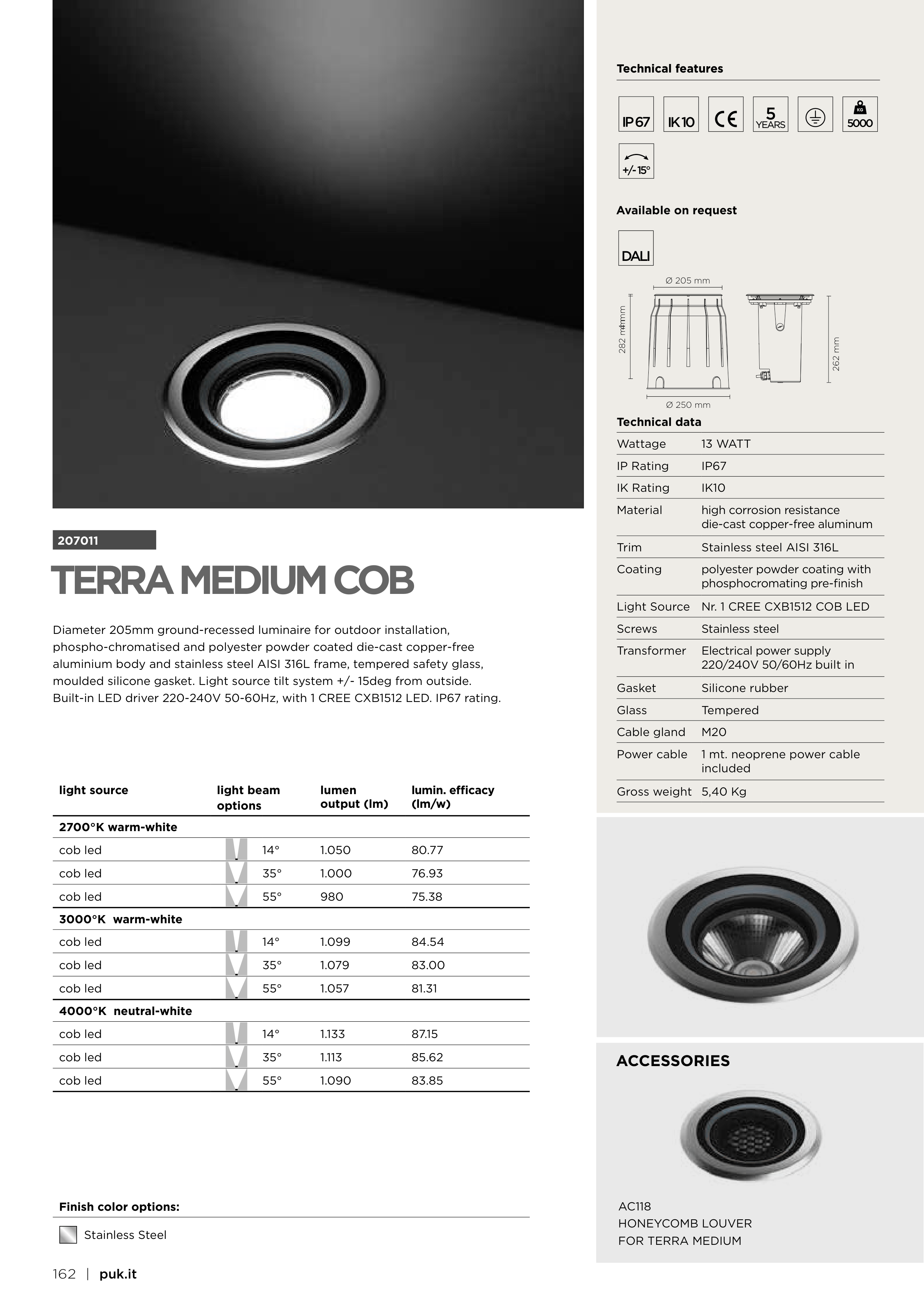

TERRA MEDIUM COB
207011
Diameter 205mm ground-recessed luminaire for outdoor installation,
phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body and stainless steel AISI 316L frame, tempered safety glass,
moulded silicone gasket. Light source tilt system +/- 15deg from outside.
Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB1512 LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
cob led
14°
1.050
80.77
cob led
35°
1.000
76.93
cob led
55°
980
75.38
3000°K warm-white
cob led
14°
1.099
84.54
cob led
35°
1.079
83.00
cob led
55°
1.057
81.31
4000°K neutral-white
cob led
14°
1.133
87.15
cob led
35°
1.113
85.62
cob led
55°
1.090
83.85
Technical features
Technical data
Wattage
13 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB1512 COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
5,40 Kg
Technical features
5
+/- 15°
5000
DALI
Available on request
Stainless Steel
Finish color options:
Ø 205 mm
282 mm
Ø 250 mm
262 mm
4 mm
AC118
HONEYCOMB LOUVER
FOR TERRA MEDIUM
ACCESSORIES
