Technical data
Wattage
4.5 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE “XML” RGBW LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
remote driver needed
DMX
DMX interface integrated
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20 + PG9
Power cable
1 mt. neoprene power cable
included
DMX cable
DMX IN cable included
Gross weight
2,70 Kg

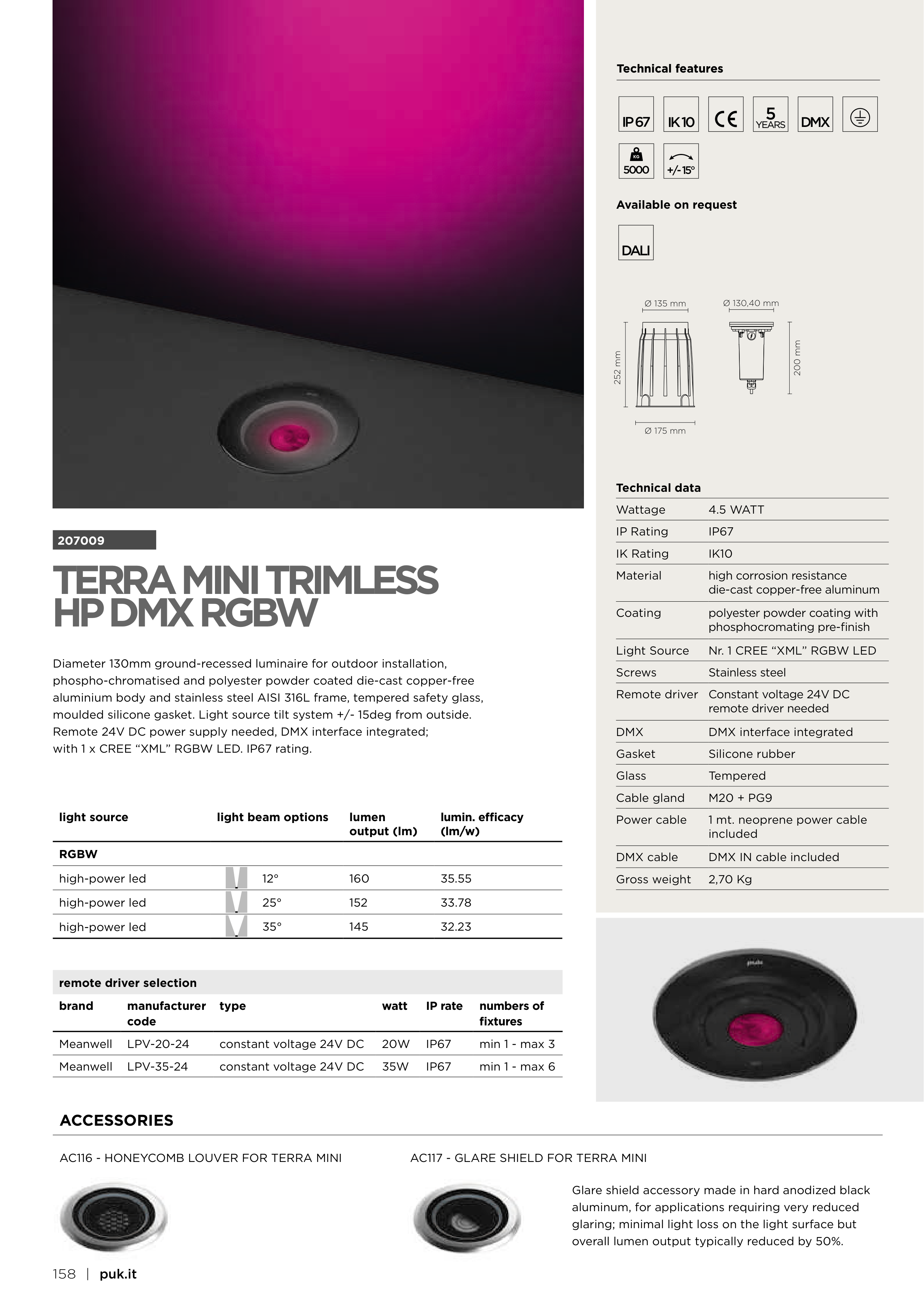

TERRA MINI TRIMLESS
HP DMX RGBW
207009
Diameter 130mm ground-recessed luminaire for outdoor installation,
phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body and stainless steel AISI 316L frame, tempered safety glass,
moulded silicone gasket. Light source tilt system +/- 15deg from outside.
Remote 24V DC power supply needed, DMX interface integrated;
with 1 x CREE “XML” RGBW LED. IP67 rating.
light source
light beam options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
12°
160
35.55
high-power led
25°
152
33.78
high-power led
35°
145
32.23
remote driver selection
brand
manufacturer
code
type
watt
IP rate
numbers of
fixtures
Meanwell
LPV-20-24
constant voltage 24V DC
20W
IP67
min 1 - max 3
Meanwell
LPV-35-24
constant voltage 24V DC
35W
IP67
min 1 - max 6
Technical features
Technical features
5
+/- 15°
5000
DMX
DALI
Available on request
AC116 - HONEYCOMB LOUVER FOR TERRA MINI
AC117 - GLARE SHIELD FOR TERRA MINI
Glare shield accessory made in hard anodized black
aluminum, for applications requiring very reduced
glaring; minimal light loss on the light surface but
overall lumen output typically reduced by 50%.
ACCESSORIES
Ø 135 mm
252 mm
Ø 175 mm
Ø 130,40 mm
200 mm
