puk.it | 153
Technical data
Wattage
6 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 16 x mid-power SAMSUNG
2835 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,70 Kg
Technical features
Technical data
Wattage
8 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE XHP35 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,70 Kg
Technical features
5
5000
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
8° x 170°
560
70.00
3000°K neutral-white
high-power led
8° x 170°
582
72.75
4000°K neutral-white
high-power led
8° x 170°
600
75.00

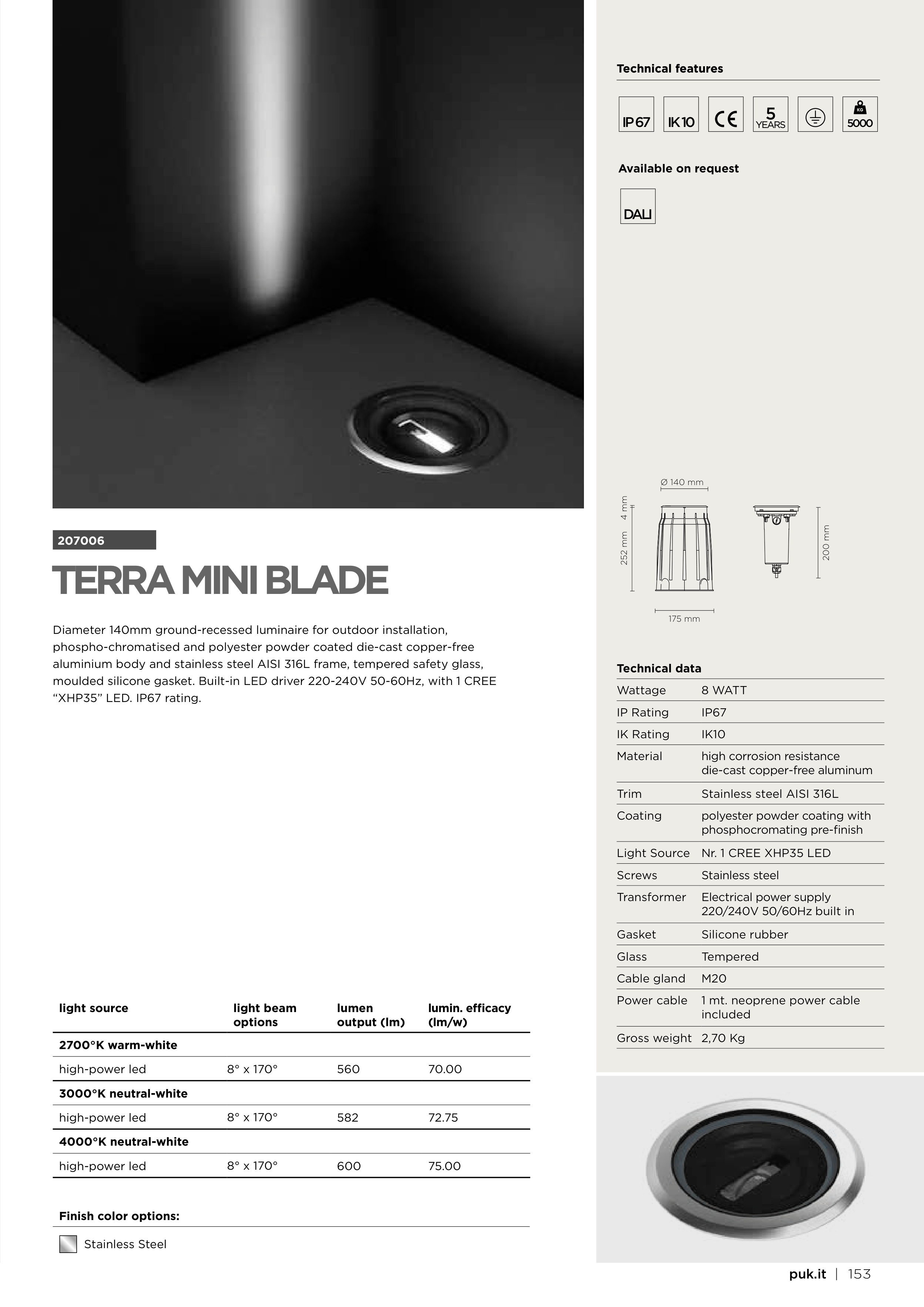

TERRA MINI BLADE
207006
Diameter 140mm ground-recessed luminaire for outdoor installation,
phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body and stainless steel AISI 316L frame, tempered safety glass,
moulded silicone gasket. Built-in LED driver 220-240V 50-60Hz, with 1 CREE
“XHP35” LED. IP67 rating.
DALI
Available on request
Stainless Steel
Finish color options:
Ø 140 mm
175 mm
252 mm
4 mm
200 mm
