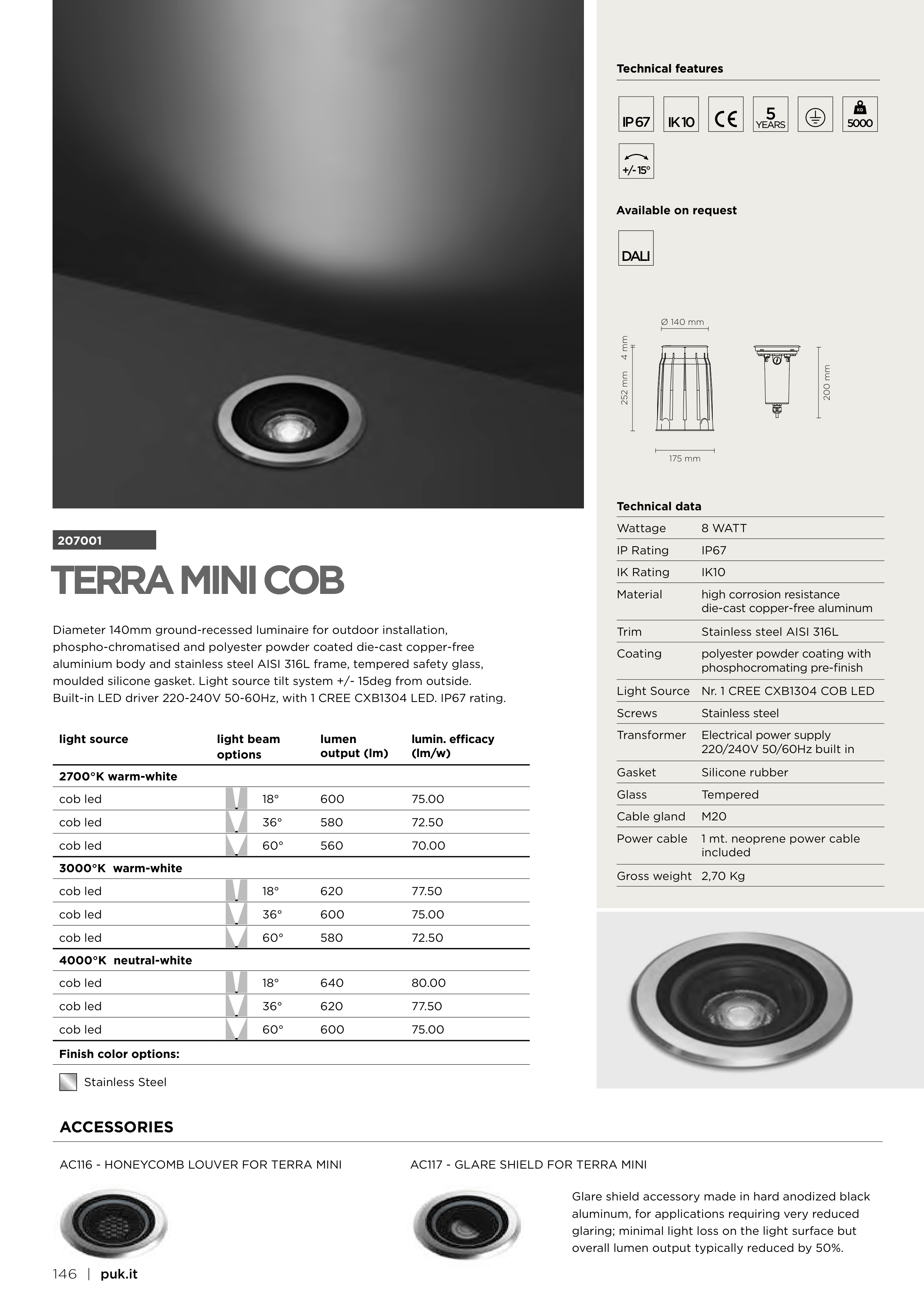

TERRA MINI COB
207001
Diameter 140mm ground-recessed luminaire for outdoor installation,
phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body and stainless steel AISI 316L frame, tempered safety glass,
moulded silicone gasket. Light source tilt system +/- 15deg from outside.
Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB1304 LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
cob led
18°
600
75.00
cob led
36°
580
72.50
cob led
60°
560
70.00
3000°K warm-white
cob led
18°
620
77.50
cob led
36°
600
75.00
cob led
60°
580
72.50
4000°K neutral-white
cob led
18°
640
80.00
cob led
36°
620
77.50
cob led
60°
600
75.00
Technical features
Technical data
Wattage
8 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB1304 COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,70 Kg
Technical features
5
+/- 15°
5000
AC116 - HONEYCOMB LOUVER FOR TERRA MINI
AC117 - GLARE SHIELD FOR TERRA MINI
Glare shield accessory made in hard anodized black
aluminum, for applications requiring very reduced
glaring; minimal light loss on the light surface but
overall lumen output typically reduced by 50%.
ACCESSORIES
DALI
Available on request
Stainless Steel
Finish color options:
Ø 140 mm
175 mm
252 mm
4 mm
200 mm
