140 | puk.it

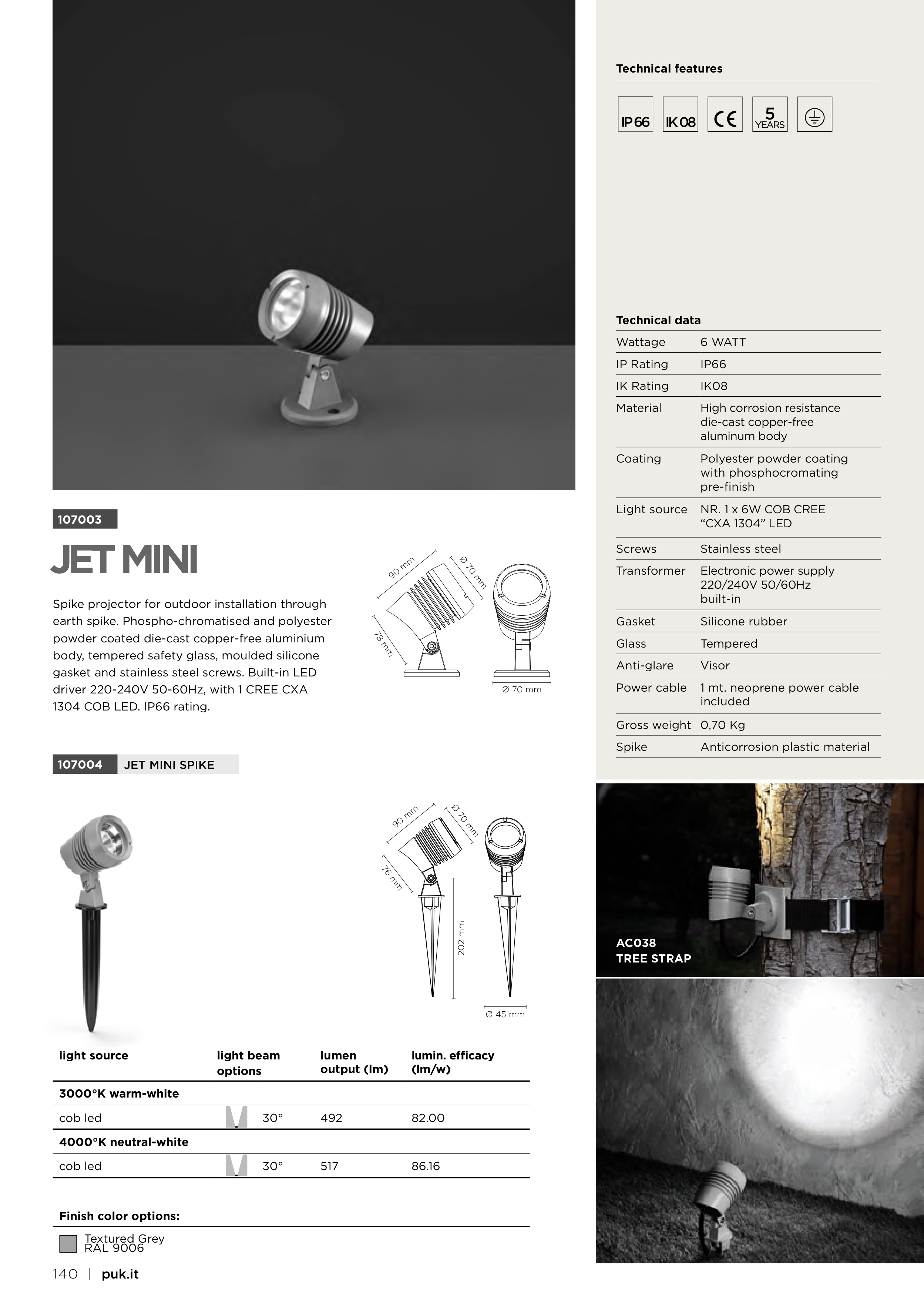

Spike projector for outdoor installation through
earth spike. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium
body, tempered safety glass, moulded silicone
gasket and stainless steel screws. Built-in LED
driver 220-240V 50-60Hz, with 1 CREE CXA
1304 COB LED. IP66 rating.
JET MINI
107003
JET MINI SPIKE
107004
Technical data
Wattage
6 WATT
IP Rating
IP66
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 1 x 6W COB CREE
“CXA 1304” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Anti-glare
Visor
Power cable
1 mt. neoprene power cable
included
Gross weight 0,70 Kg
Spike
Anticorrosion plastic material
Technical features
5
Finish color options:
Textured Grey
RAL 9006
AC038
TREE STRAP
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
30°
492
82.00
4000°K neutral-white
cob led
30°
517
86.16
Ø 70 mm
90 mm
78 mm
Ø 70 mm
90 mm
76 mm
Ø 70 mm
202 mm
Ø 45 mm
