134 | puk.it
Projector for outdoor installation on a
façade/wall. Completely realised in stainless
steel AISI 316L, tempered safety glass,
moulded silicone gasket and stainless steel
screws. Remote 24V DC power supply
needed, remote DMX interface needed; with
1 x CREE “XML” RGBW LED. IP66 rating.

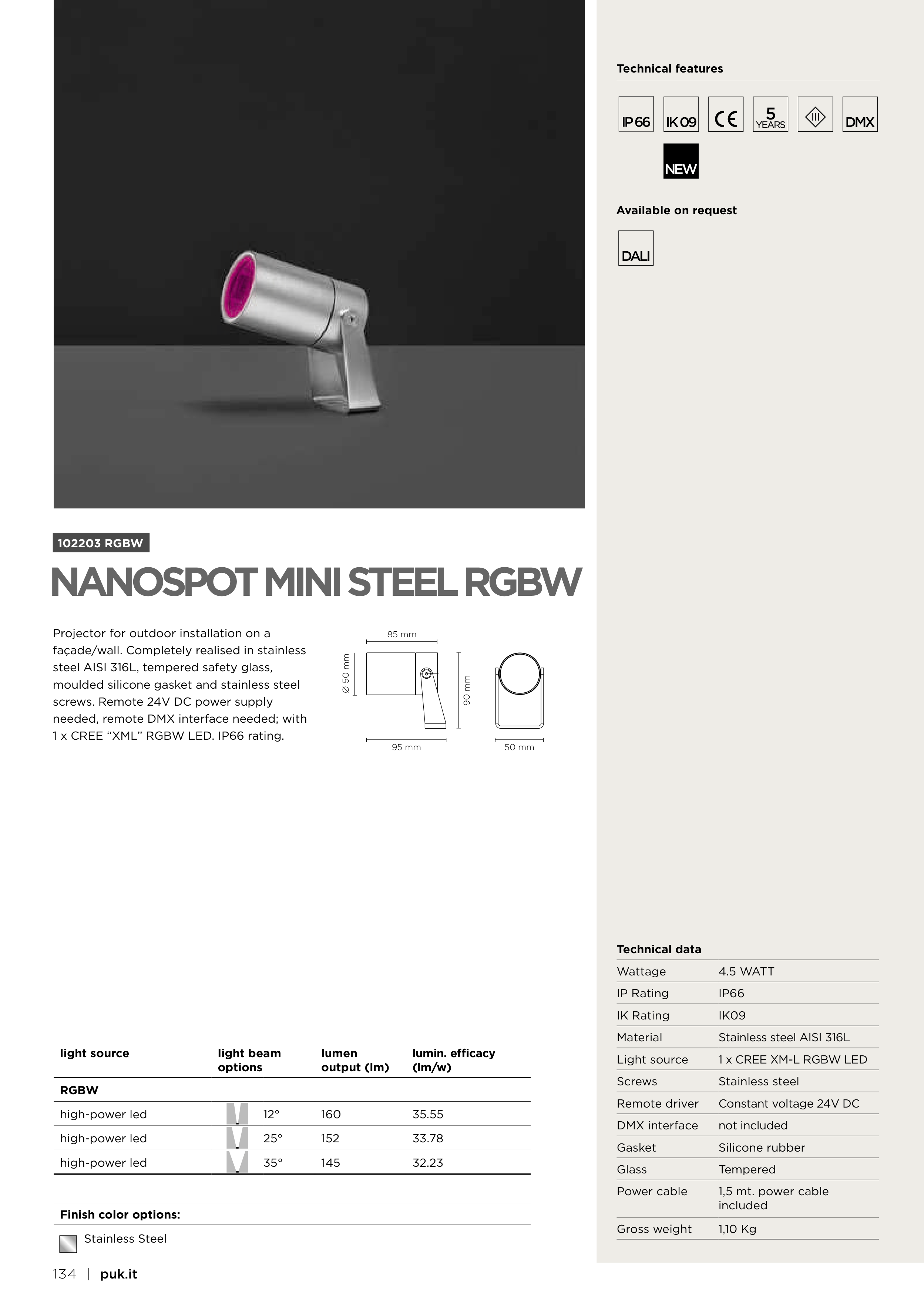

NANOSPOT MINI STEEL RGBW
Technical features
5
NEW
DMX
Technical data
Wattage
4.5 WATT
IP Rating
IP66
IK Rating
IK09
Material
Stainless steel AISI 316L
Light source
1 x CREE XM-L RGBW LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
DMX interface
not included
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
1,10 Kg
102203 RGBW
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
12°
160
35.55
high-power led
25°
152
33.78
high-power led
35°
145
32.23
90 mm
85 mm
Ø 50 mm
95 mm
50 mm
Stainless Steel
DALI
Available on request
