puk.it | 109
Technical data
Wattage
82 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “CXB 3590” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
8,00 Kg

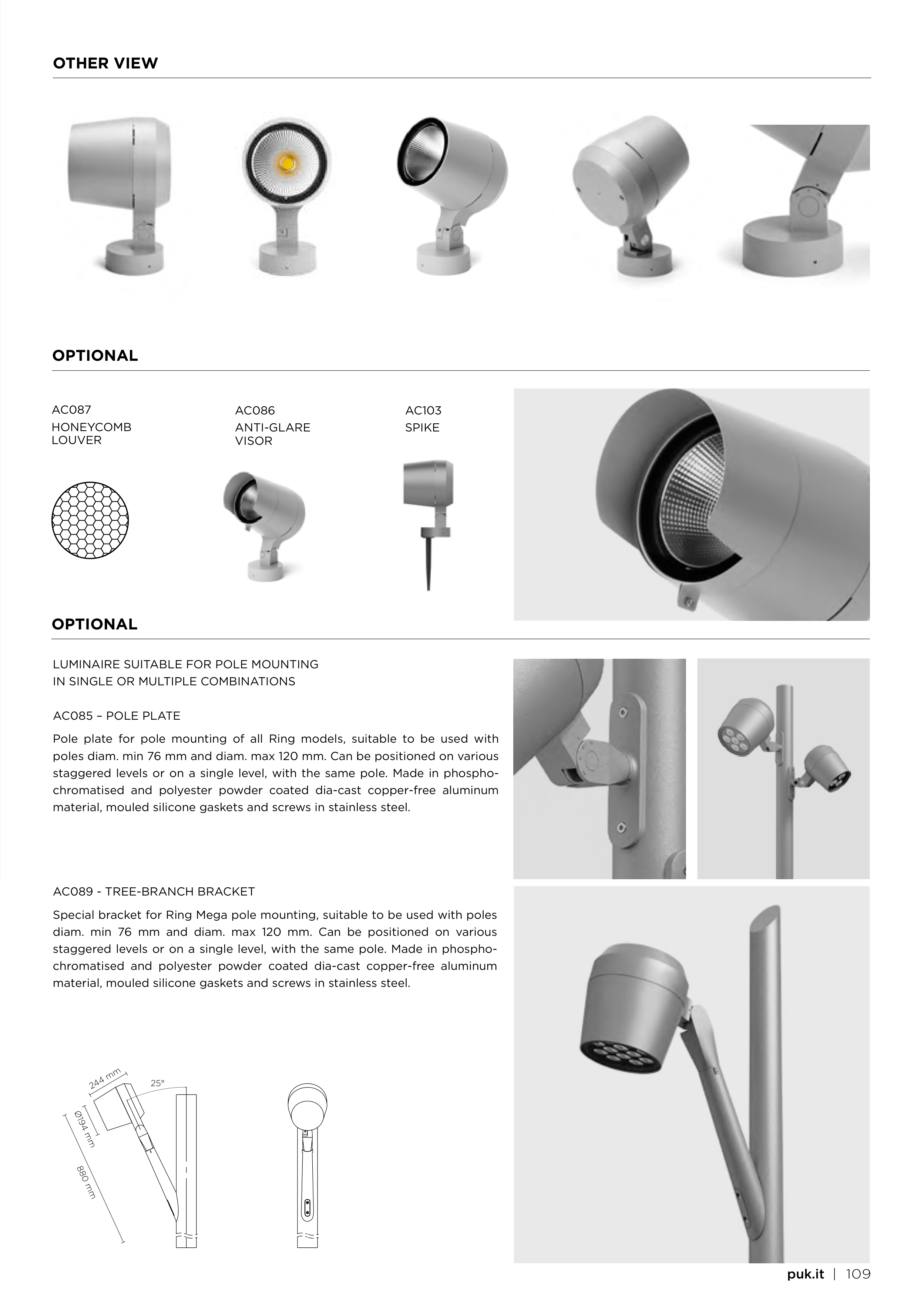

OTHER VIEW
AC089 - TREE-BRANCH BRACKET
Special bracket for Ring Mega pole mounting, suitable to be used with poles
diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
LUMINAIRE SUITABLE FOR POLE MOUNTING
IN SINGLE OR MULTIPLE COMBINATIONS
AC085 – POLE PLATE
Pole plate for pole mounting of all Ring models, suitable to be used with
poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
OPTIONAL
AC087
HONEYCOMB
LOUVER
AC086
ANTI-GLARE
VISOR
AC103
SPIKE
OPTIONAL
244 mm
25°
Ø194 mm
880 mm
