Floodlight for outdoor installation on a façade/wall,
with 355° swivel base and allowing horizontal adjustment
of +90° / -40°. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone gaskets
and o-rings, with screws in stainless steel. Swivel joint
with graduated scale and mechanical aiming lock.
Built-in LED driver, with 6 x CREE “XHP35” LED.
IP66 rating.

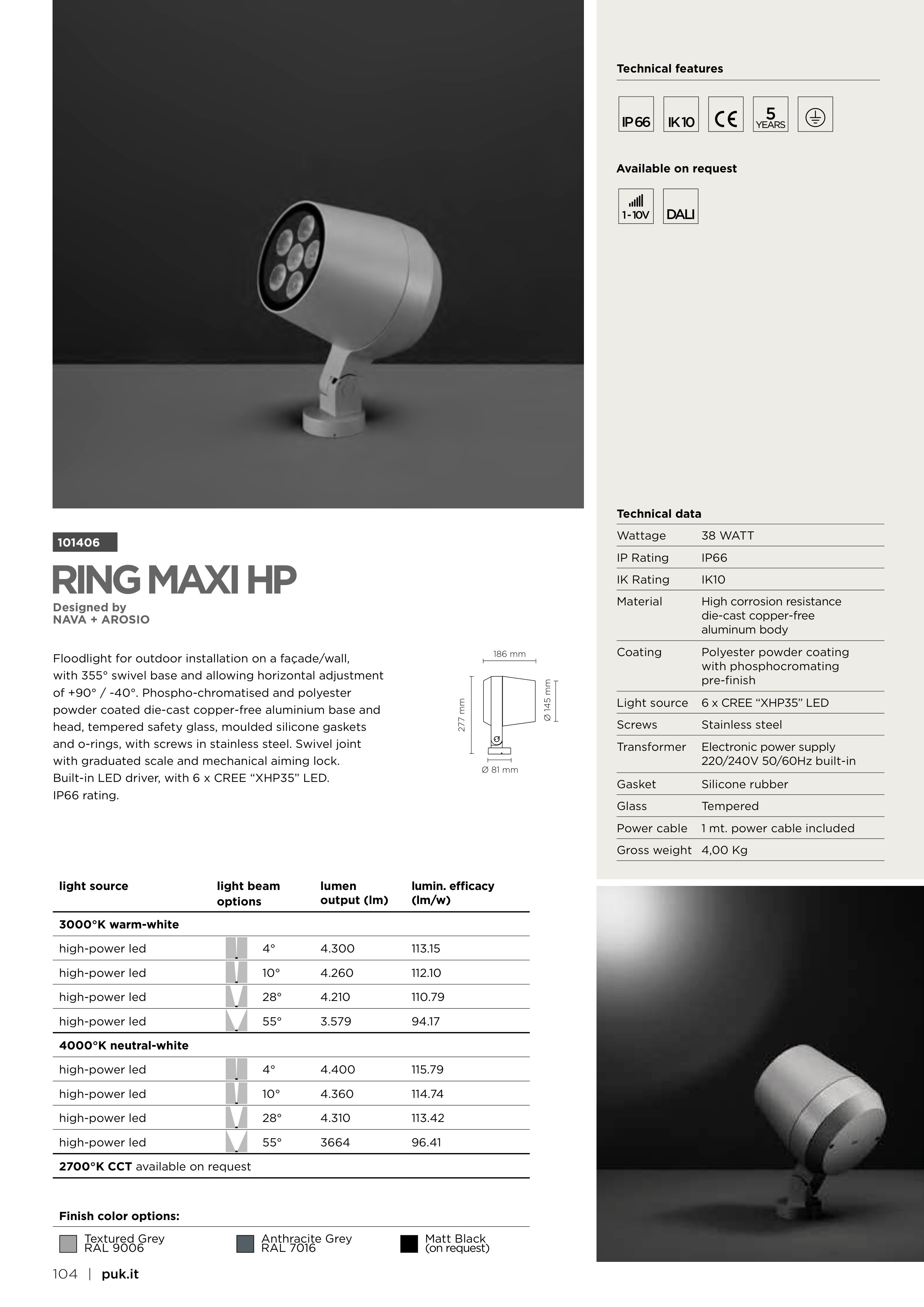

RING MAXI HP
101406
Technical data
Wattage
38 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
6 x CREE “XHP35” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
4,00 Kg
Technical features
5
Designed by
NAVA + AROSIO
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
4.300
113.15
high-power led
10°
4.260
112.10
high-power led
28°
4.210
110.79
high-power led
55°
3.579
94.17
4000°K neutral-white
high-power led
4°
4.400
115.79
high-power led
10°
4.360
114.74
high-power led
28°
4.310
113.42
high-power led
55°
3664
96.41
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
277 mm
Ø 81 mm
Ø 145 mm
186 mm
DALI
1 - 10V
Available on request
