100 | puk.it
DMX ACCESSORIES
CONTROLLERS, SPLITTERS, ETC…
To be defined together with puk technical department, according to project
specifications and after providing installation details.
Floodlight for outdoor installation on a façade/wall,
with 355° swivel base and allowing horizontal adjustment
of +90° / -40°. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone gaskets
and o-rings, with screws in stainless steel. Swivel joint
with graduated scale and mechanical aiming lock.
Built-in LED driver, DMX driver integrated;
with 3 x CREE “XML” RGBW LED. IP66 rating.

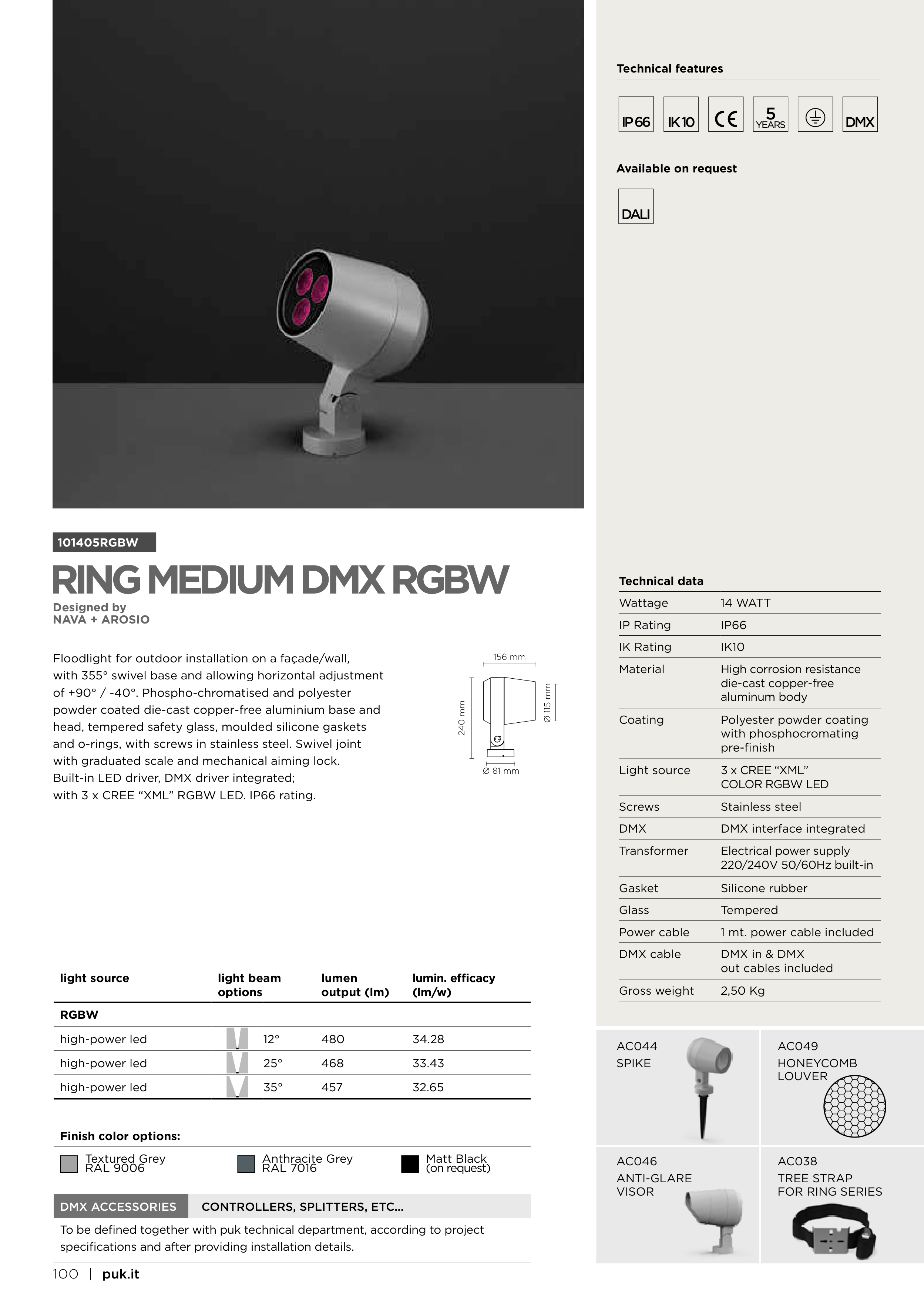

RING MEDIUM DMX RGBW
101405RGBW
Technical data
Wattage
14 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE “XML”
COLOR RGBW LED
Screws
Stainless steel
DMX
DMX interface integrated
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
DMX cable
DMX in & DMX
out cables included
Gross weight
2,50 Kg
Technical features
5
DMX
Designed by
NAVA + AROSIO
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
12°
480
34.28
high-power led
25°
468
33.43
high-power led
35°
457
32.65
240 mm
Ø 81 mm
Ø 115 mm
156 mm
AC044
SPIKE
AC049
HONEYCOMB
LOUVER
AC038
TREE STRAP
FOR RING SERIES
AC046
ANTI-GLARE
VISOR
DALI
Available on request
