536 | puk.it
Technical data
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Light source
NR. 24 –> 48 x 1.5W CREE
“XP-G3” LED
Gasket
Silicone rubber
Glass
Tempered
Transformer
Electronic transformer
220/240V 50/60Hz included
Power cable
3 m neoprene power cable
included
Weight
6,10 Kg
Technical features
5

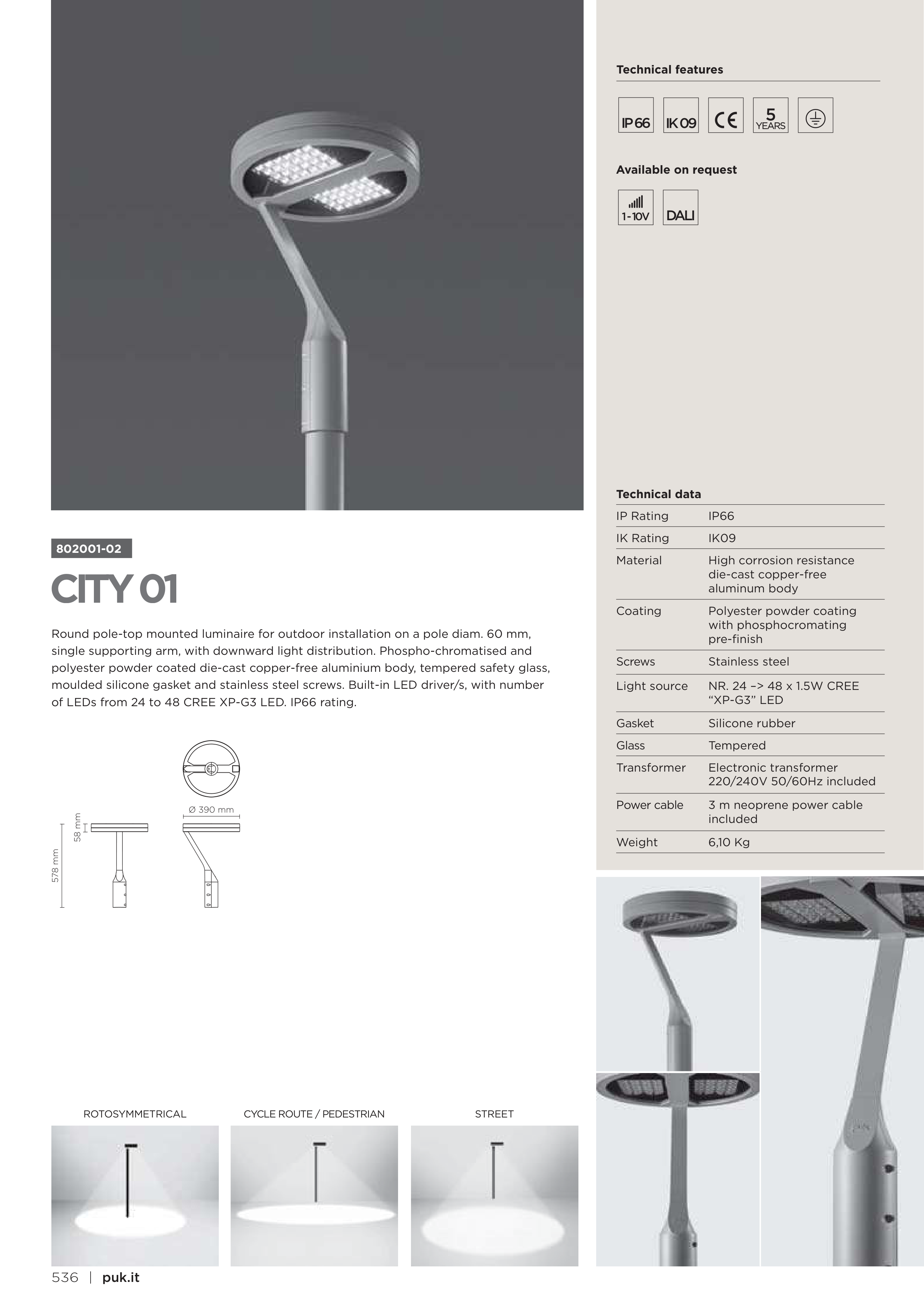

Round pole-top mounted luminaire for outdoor installation on a pole diam. 60 mm,
single supporting arm, with downward light distribution. Phospho-chromatised and
polyester powder coated die-cast copper-free aluminium body, tempered safety glass,
moulded silicone gasket and stainless steel screws. Built-in LED driver/s, with number
of LEDs from 24 to 48 CREE XP-G3 LED. IP66 rating.
CITY 01
802001-02
Ø 390 mm
578 mm
58 mm
ROTOSYMMETRICAL
CYCLE ROUTE / PEDESTRIAN
STREET
DALI
1 - 10V
Available on request
