Technical data
Wattage
6 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XHP35” LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
0,70 Kg
Technical features
Surface mounted luminaire for outdoor ceiling
installation. Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base and head,
tempered safety glass, moulded silicone gaskets, with
screws in stainless steel. Remote 24V DC power supply
needed, with 1 x CREE “XHP35” LED. IP66 rating.

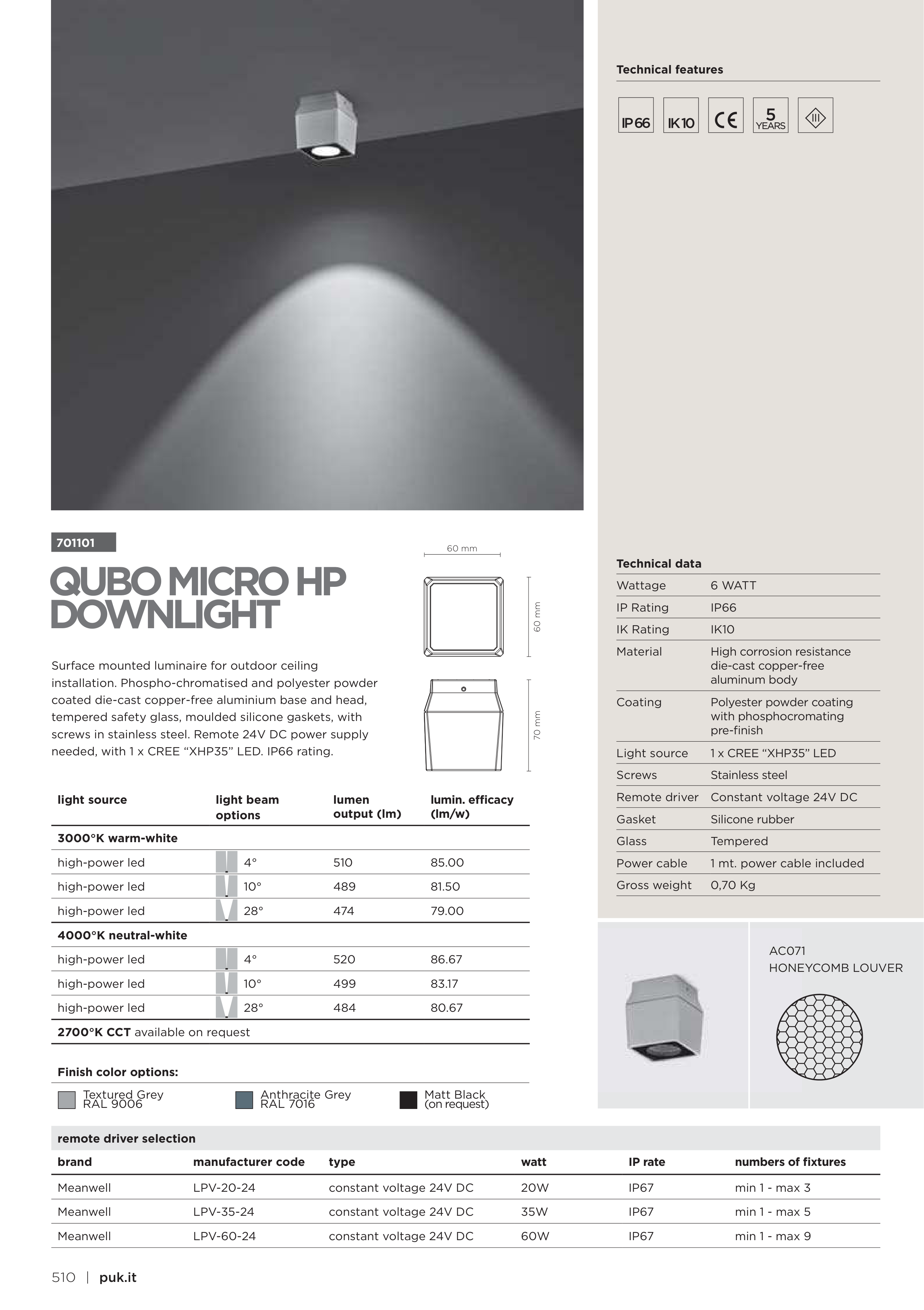

701101
60 mm
QUBO MICRO HP
DOWNLIGHT
5
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
510
85.00
high-power led
10°
489
81.50
high-power led
28°
474
79.00
4000°K neutral-white
high-power led
4°
520
86.67
high-power led
10°
499
83.17
high-power led
28°
484
80.67
2700°K CCT available on request
70 mm
AC071
HONEYCOMB LOUVER
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-20-24
constant voltage 24V DC
20W
IP67
min 1 - max 3
Meanwell
LPV-35-24
constant voltage 24V DC
35W
IP67
min 1 - max 5
Meanwell
LPV-60-24
constant voltage 24V DC
60W
IP67
min 1 - max 9
AC071
HONE
60 mm
