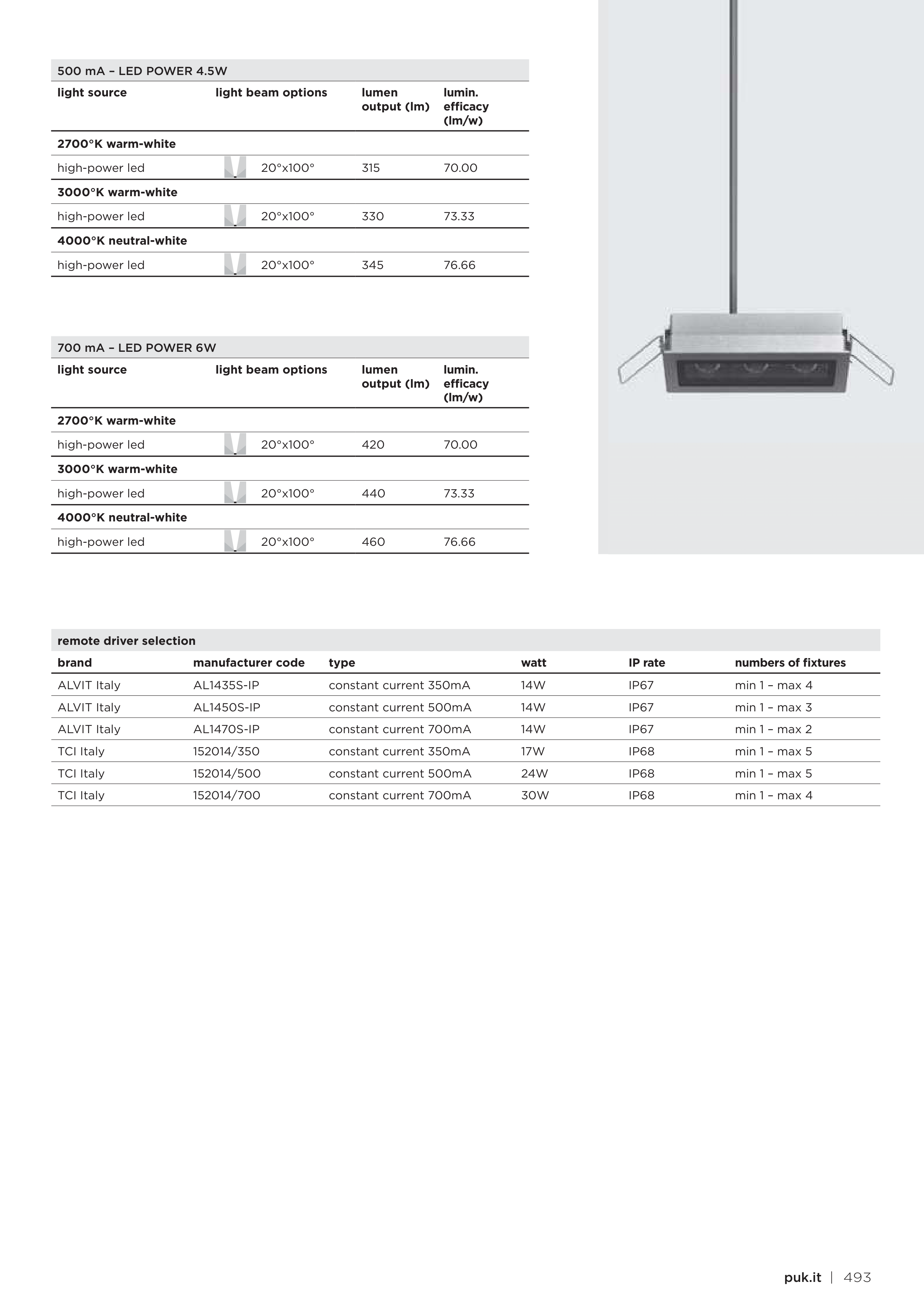

puk.it | 493
500 mA – LED POWER 4.5W
light source
light beam options
lumen
output (lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
high-power led
20°x100°
315
70.00
3000°K warm-white
high-power led
20°x100°
330
73.33
4000°K neutral-white
high-power led
20°x100°
345
76.66
700 mA – LED POWER 6W
light source
light beam options
lumen
output (lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
high-power led
20°x100°
420
70.00
3000°K warm-white
high-power led
20°x100°
440
73.33
4000°K neutral-white
high-power led
20°x100°
460
76.66
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
constant current 350mA
14W
IP67
min 1 – max 4
ALVIT Italy
AL1450S-IP
constant current 500mA
14W
IP67
min 1 – max 3
ALVIT Italy
AL1470S-IP
constant current 700mA
14W
IP67
min 1 – max 2
TCI Italy
152014/350
constant current 350mA
17W
IP68
min 1 – max 5
TCI Italy
152014/500
constant current 500mA
24W
IP68
min 1 – max 5
TCI Italy
152014/700
constant current 700mA
30W
IP68
min 1 – max 4
