Technical data
Wattage
6 WATT
IP Rating
IP68 – 3 METERS DEPTH
IK Rating
IK08
Material
Completely made in stainless
steel AISI 316 L marine grade
Trim
Stainless steel AISI 316 L
marine grade
Light source
NR. 4 x 1.5W CREE “XP-G3” LED
Screws
Stainless steel
Remote driver 350/500 mA NEEDED
Gasket
Silicone rubber
Recess
housing
made in acetal resin
Glass
Tempered
Cable gland
M12 made in stainless steel AISI
316
Power cable
8 mt. neoprene power cable
included
Cable sheath
made in PVC
Gross weight
2,00 Kg
Technical features
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
TCI Italy
127711
constant current 500 MA
12W
IP20
1
TCI Italy
122204
constant current 350 MA/ 500 MA
25W - 35W
IP20
min 1 - max 4
Meanwell
LPC-20-350
constant current 350 MA
16.8W
IP67
min 1 - max 2
Meanwell
LPC-20-700
constant current 700 MA
21W
IP67
min 1 - max 2
Meanwell
LPF-25-48
constant current 530 MA
25W
IP67
min 3 - max 4
Finish color options:

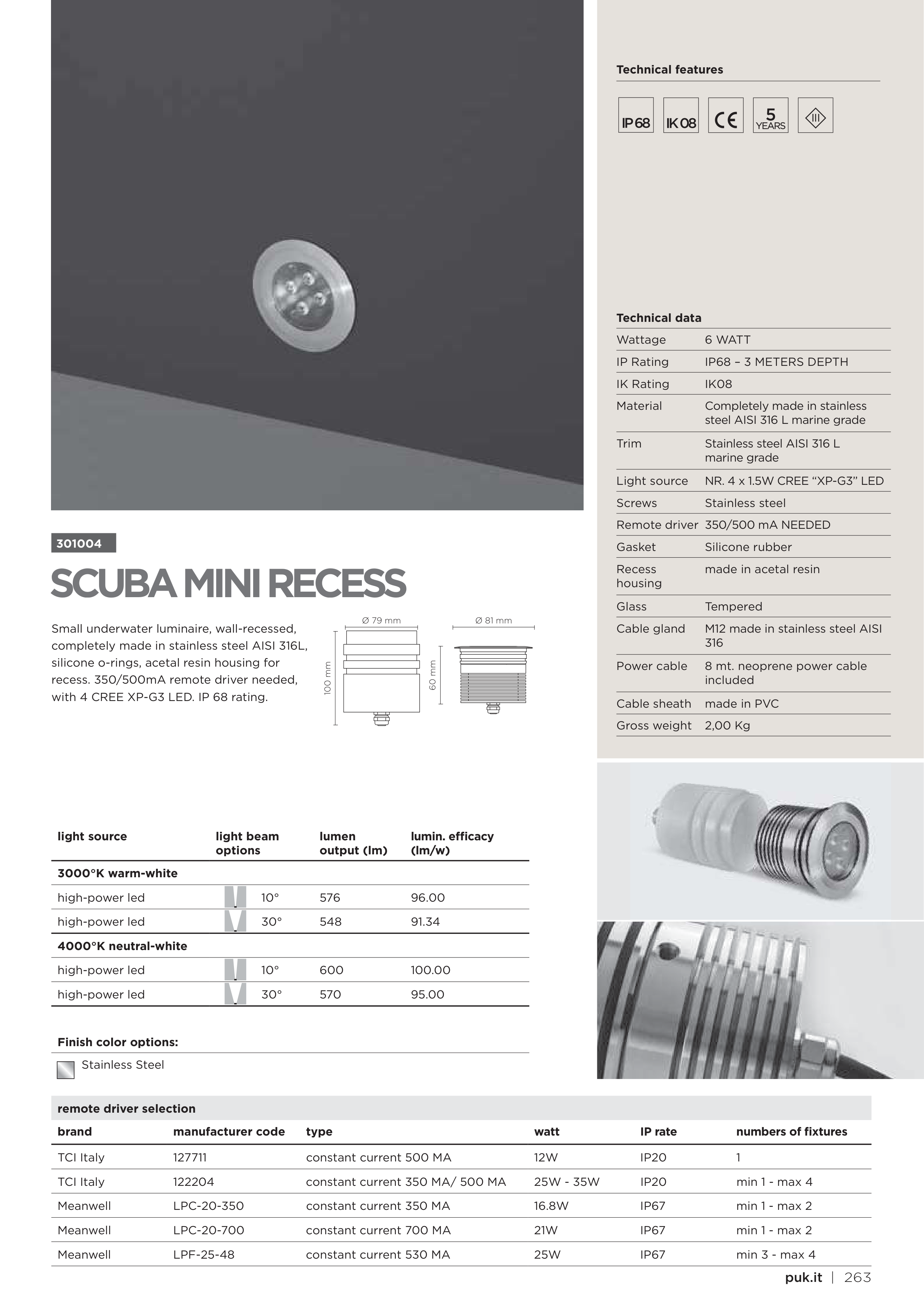

Small underwater luminaire, wall-recessed,
completely made in stainless steel AISI 316L,
silicone o-rings, acetal resin housing for
recess. 350/500mA remote driver needed,
with 4 CREE XP-G3 LED. IP 68 rating.
SCUBA MINI RECESS
301004
Ø 81 mm
Ø 79 mm
60 mm
100 mm
Stainless Steel
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
576
96.00
high-power led
30°
548
91.34
4000°K neutral-white
high-power led
10°
600
100.00
high-power led
30°
570
95.00
5
