256 | puk.it
Technical features
5
3000
204001
Technical data
Wattage
12 WATT
IP Rating
IP67
IK Rating
IK09
Material
High corrosion resistance
extruded copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
EPISTAR SMD3528 LED
Screws
Stainless steel
Housing
Stainless steel for recess
included
Driver
24V DC Remote driver needed
Static weight
resistance
Max 3000 Kg
Glass
Tempered
Power cable
1 mt. neoprene power cable
included.
Gross weight
5,00 Kg

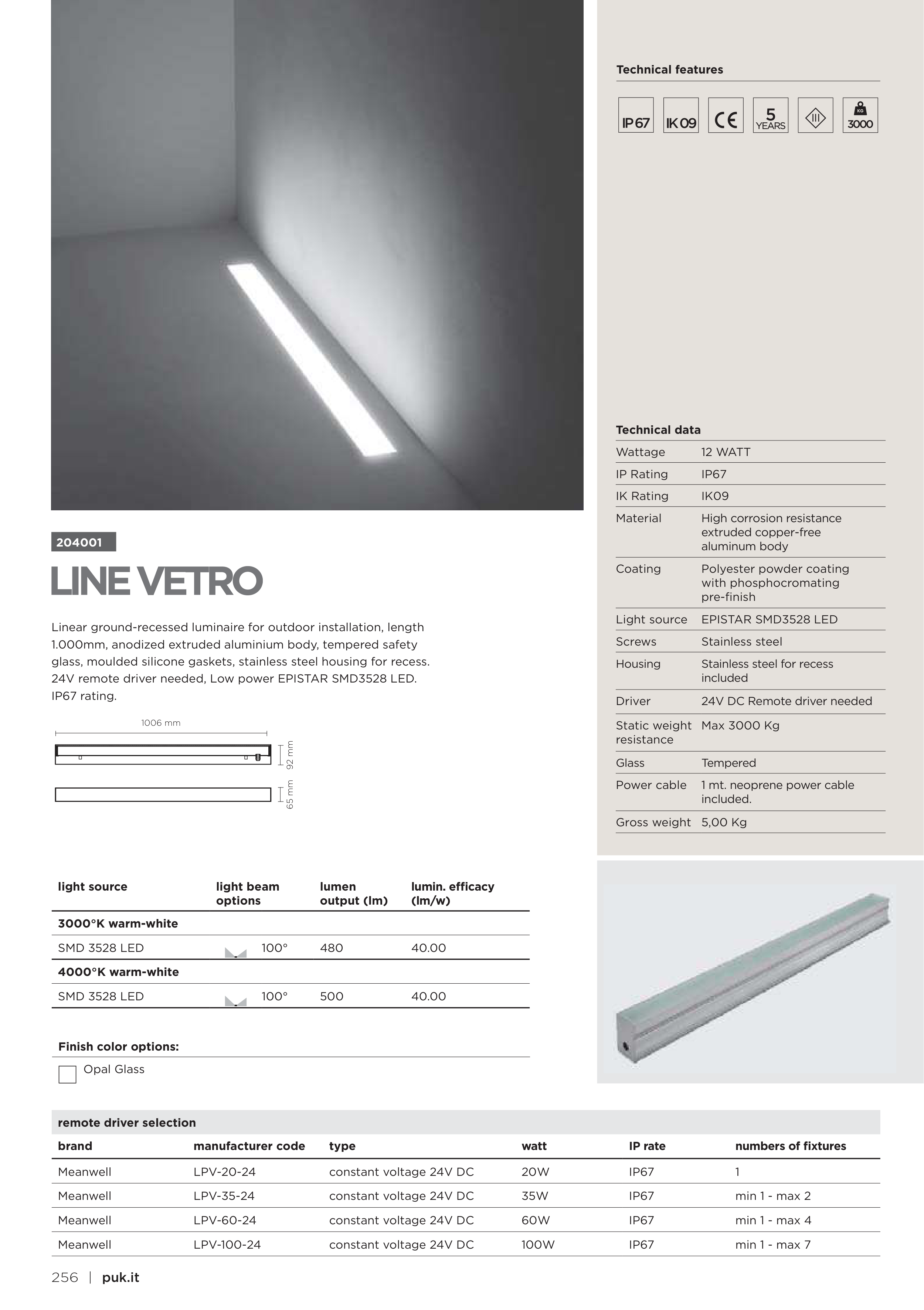

Linear ground-recessed luminaire for outdoor installation, length
1.000mm, anodized extruded aluminium body, tempered safety
glass, moulded silicone gaskets, stainless steel housing for recess.
24V remote driver needed, Low power EPISTAR SMD3528 LED.
IP67 rating.
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
SMD 3528 LED
100°
480
40.00
4000°K warm-white
SMD 3528 LED
100°
500
40.00
Opal Glass
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-20-24
constant voltage 24V DC
20W
IP67
1
Meanwell
LPV-35-24
constant voltage 24V DC
35W
IP67
min 1 - max 2
Meanwell
LPV-60-24
constant voltage 24V DC
60W
IP67
min 1 - max 4
Meanwell
LPV-100-24
constant voltage 24V DC
100W
IP67
min 1 - max 7
1006 mm
92 mm
65 mm
