Un disco di luce diffusa, da parete e soffitto, in vetro soffiato
satinato bianco disponibile in tre dimensioni. Struttura a
scomparsa nelle versioni piccola e media. Disponibile anche in
versione LED.
Diffused light comes out this disk, wall and ceiling lighting fixture
in mat blown white glass that comes in three sizes. In the small
and medium versions the structure is concealed. LED version
available.

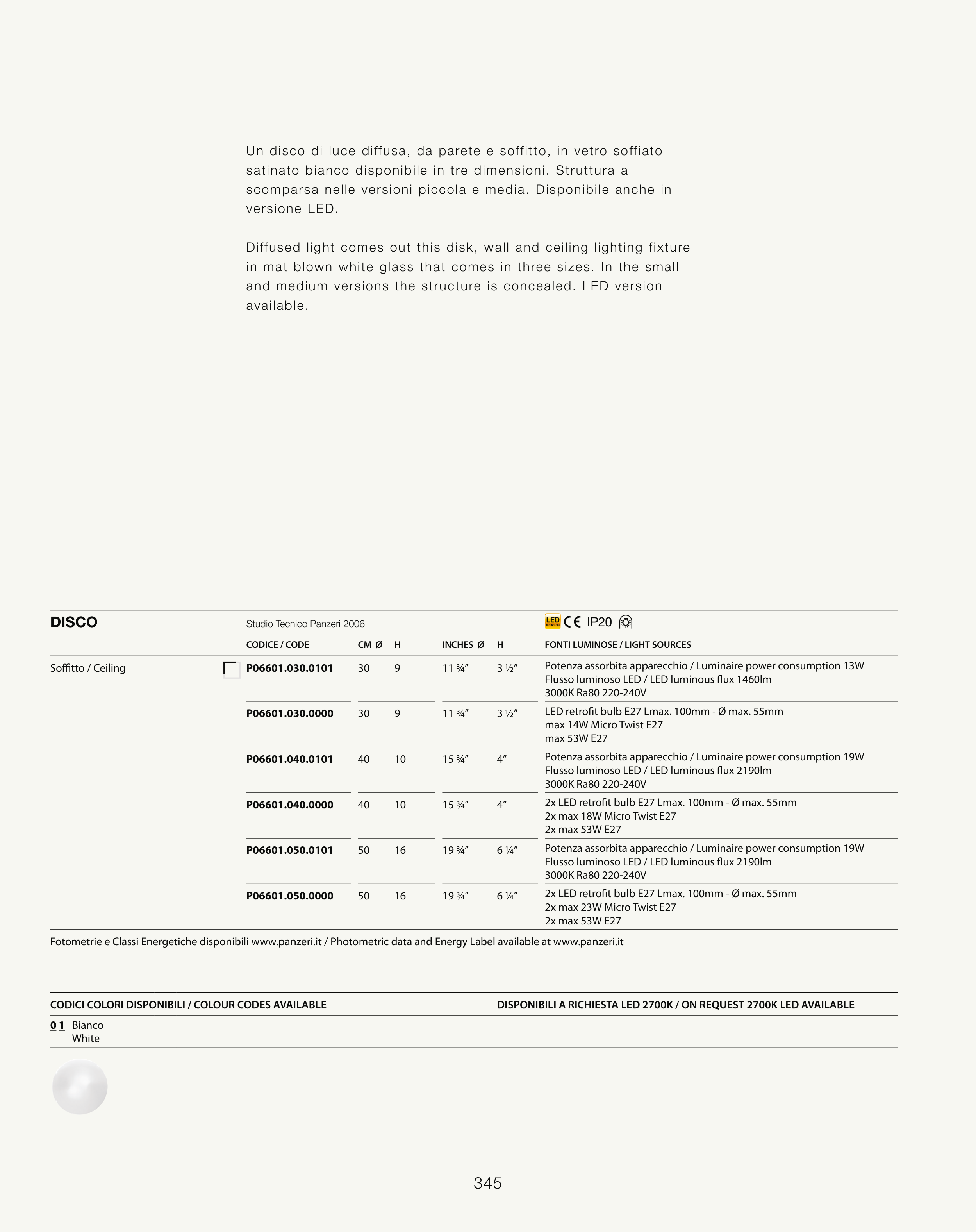

DISCO
Studio Tecnico Panzeri 2006
IP20
CODICE / CODE
CM Ø H
INCHES Ø H
FONTI LUMINOSE / LIGHT SOURCES
Soffitto / Ceiling
P06601.030.0101
30
9
11 ¾”
3 ½”
Potenza assorbita apparecchio / Luminaire power consumption 13W
Flusso luminoso LED / LED luminous flux 1460lm
3000K Ra80 220-240V
P06601.030.0000
30
9
11 ¾”
3 ½”
LED retrofit bulb E27 Lmax. 100mm - Ø max. 55mm
max 14W Micro Twist E27
max 53W E27
P06601.040.0101
40
10
15 ¾”
4”
Potenza assorbita apparecchio / Luminaire power consumption 19W
Flusso luminoso LED / LED luminous flux 2190lm
3000K Ra80 220-240V
P06601.040.0000
40
10
15 ¾”
4”
2x LED retrofit bulb E27 Lmax. 100mm - Ø max. 55mm
2x max 18W Micro Twist E27
2x max 53W E27
P06601.050.0101
50
16
19 ¾”
6 ¼”
Potenza assorbita apparecchio / Luminaire power consumption 19W
Flusso luminoso LED / LED luminous flux 2190lm
3000K Ra80 220-240V
P06601.050.0000
50
16
19 ¾”
6 ¼”
2x LED retrofit bulb E27 Lmax. 100mm - Ø max. 55mm
2x max 23W Micro Twist E27
2x max 53W E27
Fotometrie e Classi Energetiche disponibili www.panzeri.it / Photometric data and Energy Label available at www.panzeri.it
CODICI COLORI DISPONIBILI / COLOUR CODES AVAILABLE
DISPONIBILI A RICHIESTA LED 2700K / ON REQUEST 2700K LED AVAILABLE
0 1 Bianco
White
345
