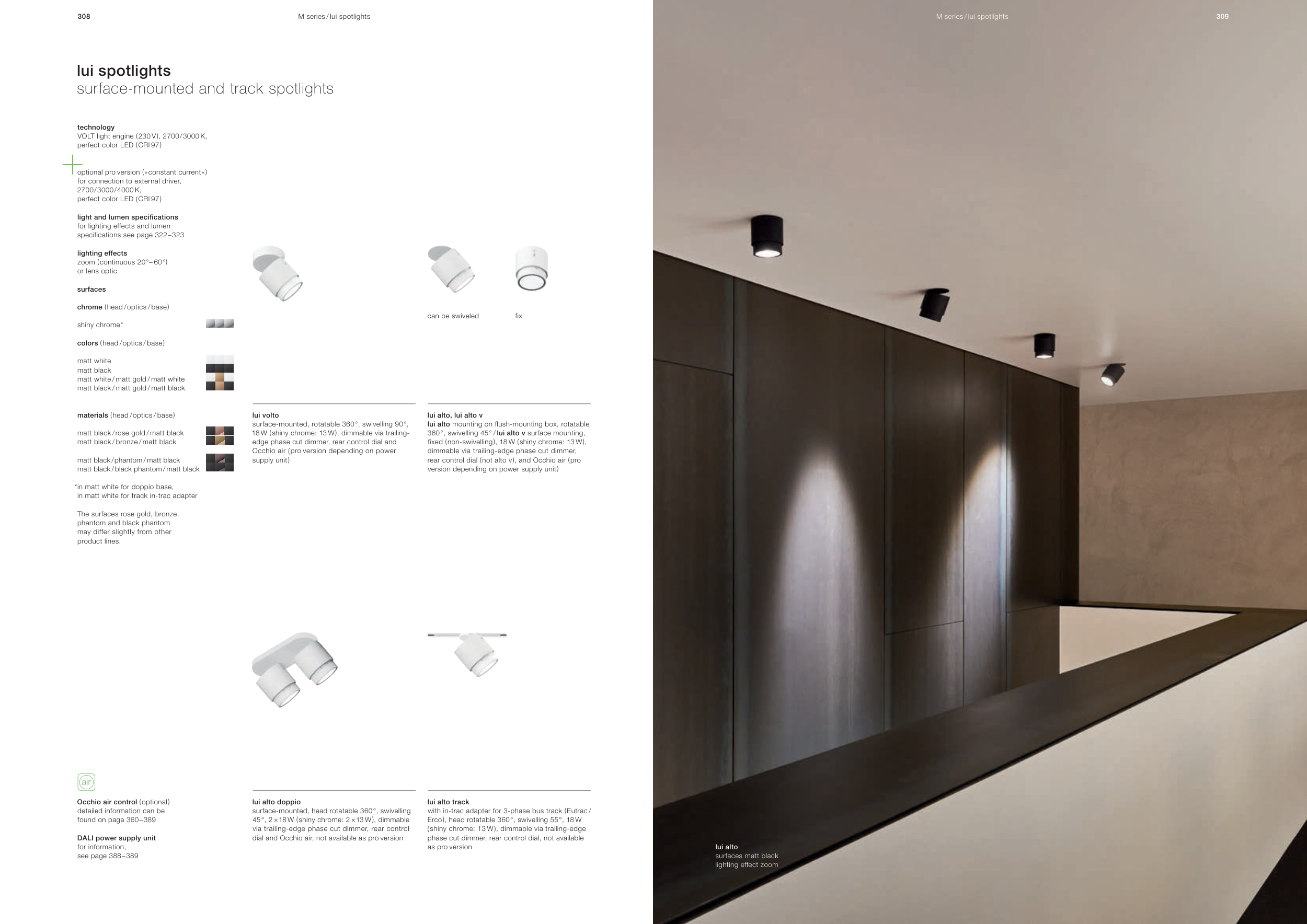

fix
lui spotlights
surface-mounted and track spotlights
lui volto
surface-mounted, rotatable 360 °, swivelling 90 °,
18 W ( shiny chrome: 13 W ), dimmable via trailing-
edge phase cut dimmer, rear control dial and
Occhio air ( pro version depending on power
supply unit )
lui alto doppio
surface-mounted, head rotatable 360 °, swivelling
45 °, 2 × 18 W ( shiny chrome: 2 × 13 W ), dimmable
via trailing-edge phase cut dimmer, rear control
dial and Occhio air, not available as pro version
lui alto, lui alto v
lui alto mounting on flush-mounting box, rotatable
360 °, swivelling 45 ° / lui alto v surface mounting,
fixed ( non-swivelling ), 18 W ( shiny chrome: 13 W ),
dimmable via trailing-edge phase cut dimmer,
rear control dial ( not alto v ), and Occhio air ( pro
version depending on power supply unit )
lui alto track
with in-trac adapter for 3-phase bus track ( Eutrac /
Erco ), head rotatable 360 °, swivelling 55 °, 18 W
( shiny chrome: 13 W ), dimmable via trailing-edge
phase cut dimmer, rear control dial, not available
as pro version
can be swiveled
lui alto
surfaces matt black
lighting effect zoom
technology
VOLT light engine ( 230 V ), 2700 / 3000 K,
perfect color LED ( CRI 97 )
optional pro version ( » constant current « )
for connection to external driver,
2700 / 3000 / 4000 K,
perfect color LED ( CRI 97 )
light and lumen specifications
for lighting effects and lumen
specifications see page 322 – 323
lighting effects
zoom ( continuous 20 °– 60 °)
or lens optic
surfaces
chrome ( head / optics / base )
shiny chrome *
colors ( head / optics / base )
matt white
matt black
matt white / matt gold / matt white
matt black / matt gold / matt black
materials ( head / optics / base )
matt black / rose gold / matt black
matt black / bronze / matt black
matt black / phantom / matt black
matt black / black phantom / matt black
*in matt white for doppio base,
in matt white for track in-trac adapter
The surfaces rose gold, bronze,
phantom and black phantom
may differ slightly from other
product lines.
DALI power supply unit
for information,
see page 388 – 389
Occhio air control ( optional )
detailed information can be
found on page 360 – 389
M series / lui spotlights
309
M series / lui spotlights
308
