diffusore /diffuser
FX03.misura
FX200
FX201
FX202
FX203
FX210
FX200
FX201
FX202
FX203
FX210

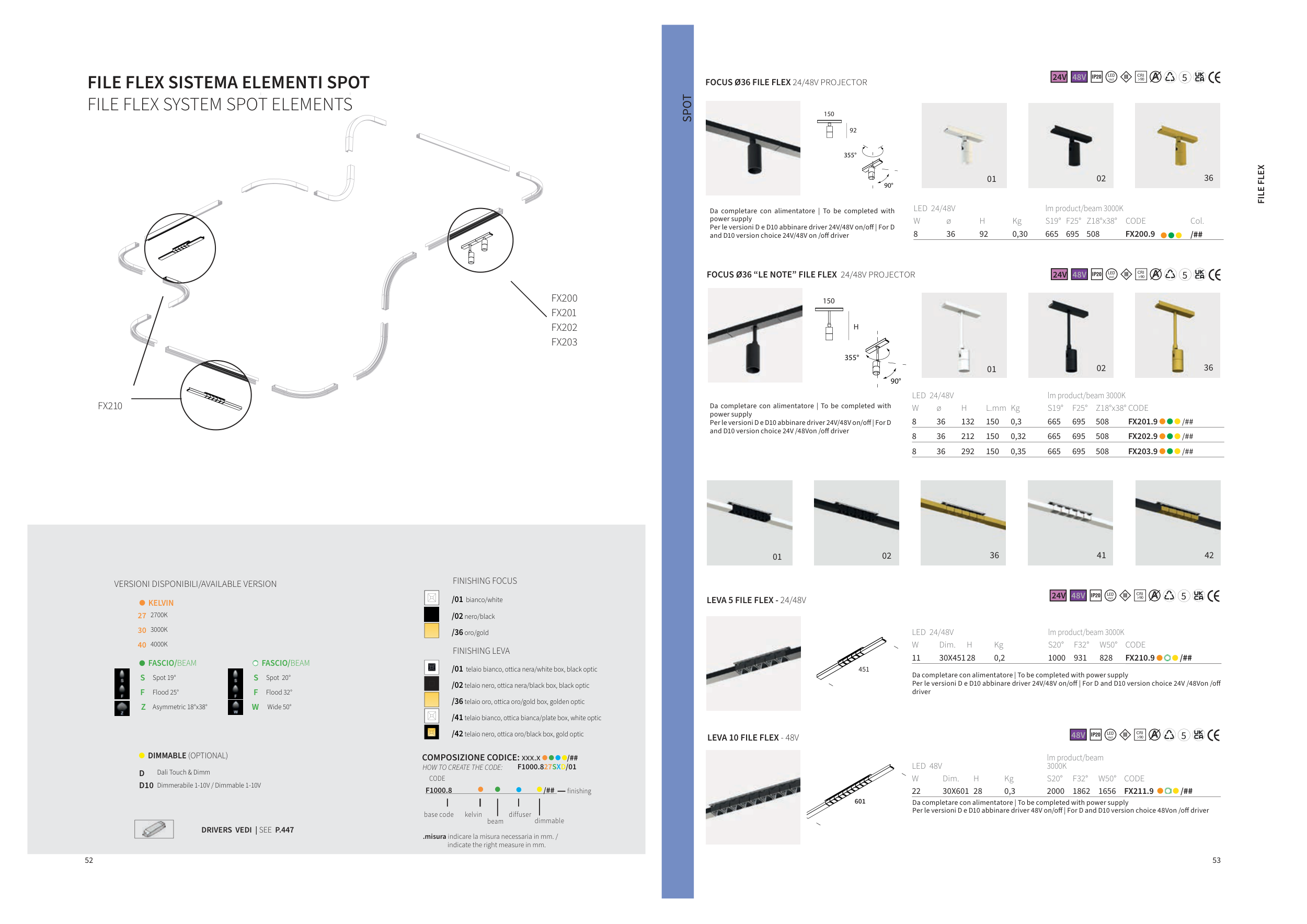

FILE FLEX SISTEMA ELEMENTI SPOT
FILE FLEX SYSTEM SPOT ELEMENTS
52
DIMMABLE (OPTIONAL)
D
Dali Touch & Dimm
D10 Dimmerabile 1-10V / Dimmable 1-10V
FINISHING LEVA
/01 telaio bianco, ottica nera/white box, black optic
/02 telaio nero, ottica nera/black box, black optic
/36 telaio oro, ottica oro/gold box, golden optic
/41 telaio bianco, ottica bianca/plate box, white optic
/42 telaio nero, ottica oro/black box, gold optic
KELVIN
27 2700K
30 3000K
40 4000K
VERSIONI DISPONIBILI/AVAILABLE VERSION
FASCIO/BEAM
S Spot 19°
F Flood 25°
Z Asymmetric 18°x38°
FINISHING FOCUS
/01 bianco/white
/02 nero/black
/36 oro/gold
COMPOSIZIONE CODICE: xxx.x
/##
HOW TO CREATE THE CODE:
beam
kelvin
base code
CODE
F1000.8
/##
dimmable
finishing
diffuser
F1000.827SXD/01
.misura indicare la misura necessaria in mm. /
indicate the right measure in mm.
FASCIO/BEAM
S Spot 20°
F Flood 32°
W Wide 50°
DRIVERS VEDI | SEE P.447
FILE FLEX
150
355°
90°
92
FOCUS Ø36 “LE NOTE” FILE FLEX 24/48V PROJECTOR
150
H
355°
90°
LEVA 5 FILE FLEX - 24/48V
451
LEVA 10 FILE FLEX - 48V
601
FOCUS Ø36 FILE FLEX 24/48V PROJECTOR
LED 24/48V
lm product/beam 3000K
W
ø
H
Kg
S19° F25° Z18°x38°
CODE
Col.
8
36
92
0,30
665
695
508
FX200.9
/##
LED 24/48V
lm product/beam 3000K
W
ø
H
L.mm Kg
S19°
F25°
Z18°x38° CODE
8
36
132
150
0,3
665
695
508
FX201.9
/##
8
36
212
150
0,32
665
695
508
FX202.9
/##
8
36
292
150
0,35
665
695
508
FX203.9
/##
LED 24/48V
lm product/beam 3000K
W
Dim.
H
Kg
S20°
F32°
W50°
CODE
11
30X45128
0,2
1000
931
828
FX210.9
/##
LED 48V
lm product/beam
3000K
W
Dim.
H
Kg
S20°
F32°
W50°
CODE
22
30X601 28
0,3
2000
1862
1656
FX211.9
/##
Da completare con alimentatore | To be completed with
power supply
Per le versioni D e D10 abbinare driver 24V/48V on/off | For D
and D10 version choice 24V /48Von /off driver
Da completare con alimentatore | To be completed with
power supply
Per le versioni D e D10 abbinare driver 24V/48V on/off | For D
and D10 version choice 24V/48V on /off driver
Da completare con alimentatore | To be completed with power supply
Per le versioni D e D10 abbinare driver 48V on/off | For D and D10 version choice 48Von /off driver
Da completare con alimentatore | To be completed with power supply
Per le versioni D e D10 abbinare driver 24V/48V on/off | For D and D10 version choice 24V /48Von /off
driver
36
02
01
36
02
01
36
02
01
42
41
SPOT
24V 48V
LED
incl.
CRI
>90
5
24V 48V
LED
incl.
CRI
>90
5
24V 48V
LED
incl.
CRI
>90
5
48V
LED
incl.
CRI
>90
5
53
