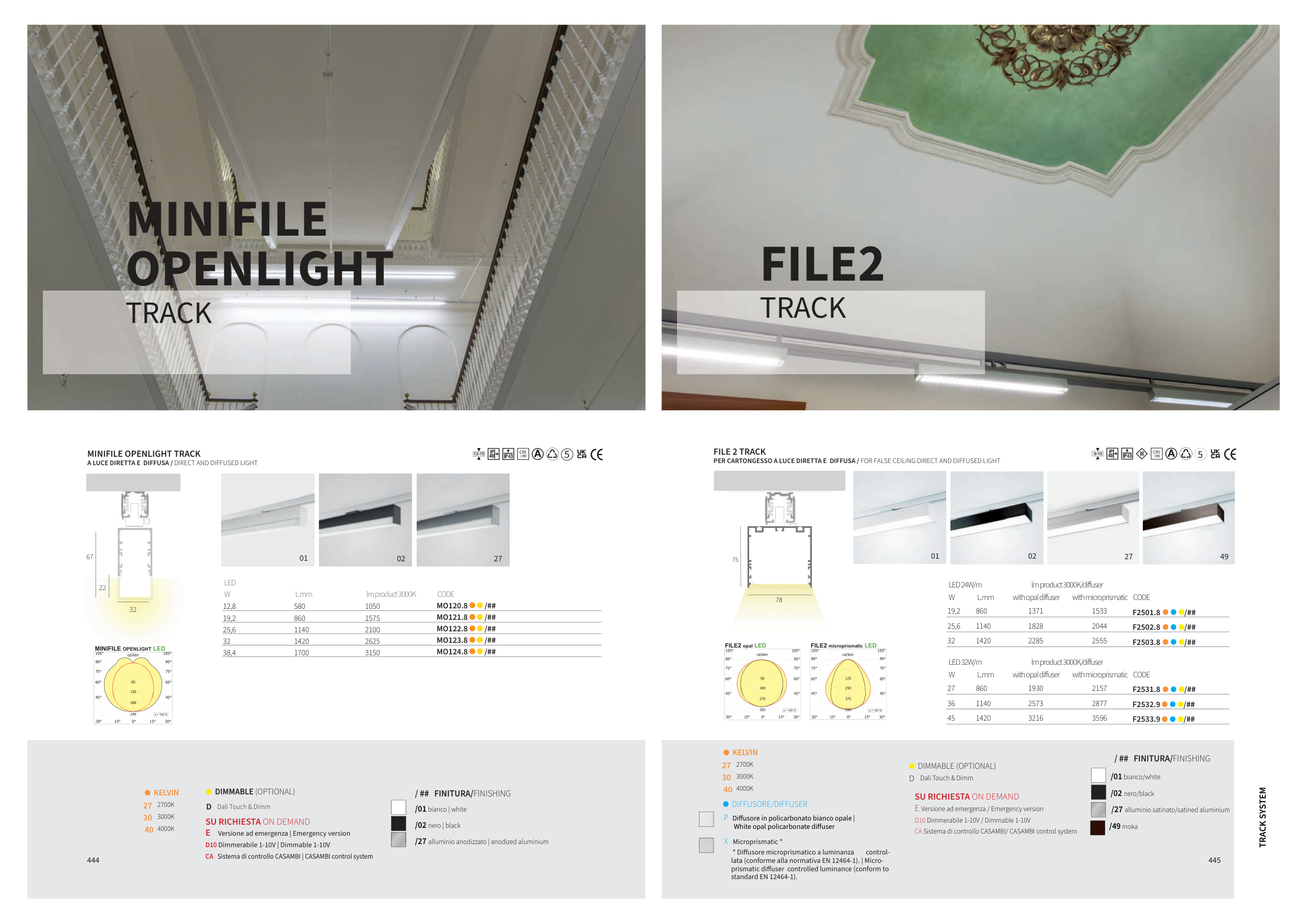

MINIFILE
OPENLIGHT
TRACK
KELVIN
27 2700K
30 3000K
40 4000K
DIMMABLE (OPTIONAL)
D Dali Touch & Dimm
SU RICHIESTA ON DEMAND
E Versione ad emergenza | Emergency version
D10 Dimmerabile 1-10V | Dimmable 1-10V
CA Sistema di controllo CASAMBI | CASAMBI control system
/ ## FINITURA/FINISHING
/01 bianco | white
/02 nero | black
/27 alluminio anodizzato | anodized aluminium
32
22
67
LED
W
L.mm
lm product 3000K
CODE
12,8
580
1050
MO120.8
/##
19,2
860
1575
MO121.8
/##
25,6
1140
2100
MO122.8
/##
32
1420
2625
MO123.8
/##
38,4
1700
3150
MO124.8
/##
02
01
27
MINIFILE OPENLIGHT TRACK
A LUCE DIRETTA E DIFFUSA / DIRECT AND DIFFUSED LIGHT
13-15
CRI
>90
5
MINIFILE OPENLIGHT LED
60
120
180
240
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
η = 100 %
90°
0°
cd/klm
444
KELVIN
27 2700K
30 3000K
40 4000K
/ ## FINITURA/FINISHING
/01 bianco/white
/02 nero/black
/27 alluminio satinato/satined aluminium
/49 moka
* Diffusore microprismatico a luminanza control-
lata (conforme alla normativa EN 12464-1). | Micro-
prismatic diffuser controlled luminance (conform to
standard EN 12464-1).
DIFFUSORE/DIFFUSER
P Diffusore in policarbonato bianco opale |
White opal policarbonate diffuser
X Microprismatic *
FILE2
TRACK
445
TRACK SYSTEM
DIMMABLE (OPTIONAL)
D
Dali Touch & Dimm
SU RICHIESTA ON DEMAND
E Versione ad emergenza / Emergency version
D10 Dimmerabile 1-10V / Dimmable 1-10V
CA Sistema di controllo CASAMBI/ CASAMBI control system
78
75
FILE 2 TRACK
PER CARTONGESSO A LUCE DIRETTA E DIFFUSA / FOR FALSE CEILING DIRECT AND DIFFUSED LIGHT
02
01
9-15
CRI
>90
5
27
49
LED 24W/m
lm product 3000K/diffuser
W
L.mm
with opal diffuser
with microprismatic CODE
19,2
860
1371
1533
F2501.8
/##
25,6
1140
1828
2044
F2502.8
/##
32
1420
2285
2555
F2503.8
/##
LED 32W/m
lm product 3000K/diffuser
W
L.mm
with opal diffuser
with microprismatic CODE
27
860
1930
2157
F2531.8
/##
36
1140
2573
2877
F2532.9
/##
45
1420
3216
3596
F2533.9
/##
FILE2 opal LED
90
180
270
360
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
η = 100 %
90°
0°
cd/klm
FILE2 microprismatic LED
125
250
375
500
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
η = 100 %
90°
0°
cd/klm
