34
34
KELVIN
27 2700K
30 3000K
40 4000K
VERSIONI DISPONIBILI/AVAILABLE VERSION
/ ## FINITURA ROSONI /FINISHING
CANOPY
/01 bianco/white
/02 nero/black
/ ## FINITURA/FINISHING
/01 bianco/white
/02 nero/black
/36 oro/gold
COMPOSIZIONE CODICE: xxx.x
/##
HOW TO CREATE THE CODE:
kelvin
base code
finishing
F1000.827/01
CODE
F1000.8
/##
/ ## FINITURA PREMIUM /PREMIUM FINISHING
/81 oro rosa shine/shine rose gold
/82 bronzo/ bronze
/83 ottone spazzolato/ brushed brass
MED STORE - PIEDIRIPA (MC)
PROJECT: HARCOME STUDIO ARCH.A.PALMIERI
PHOTO: MASSIMO ZANCONI
FILE FLEX
CIRCLE
SOSPENSIONE
SUSPENSION
42
FILE FLEX
500
34
2000
800
34
2000

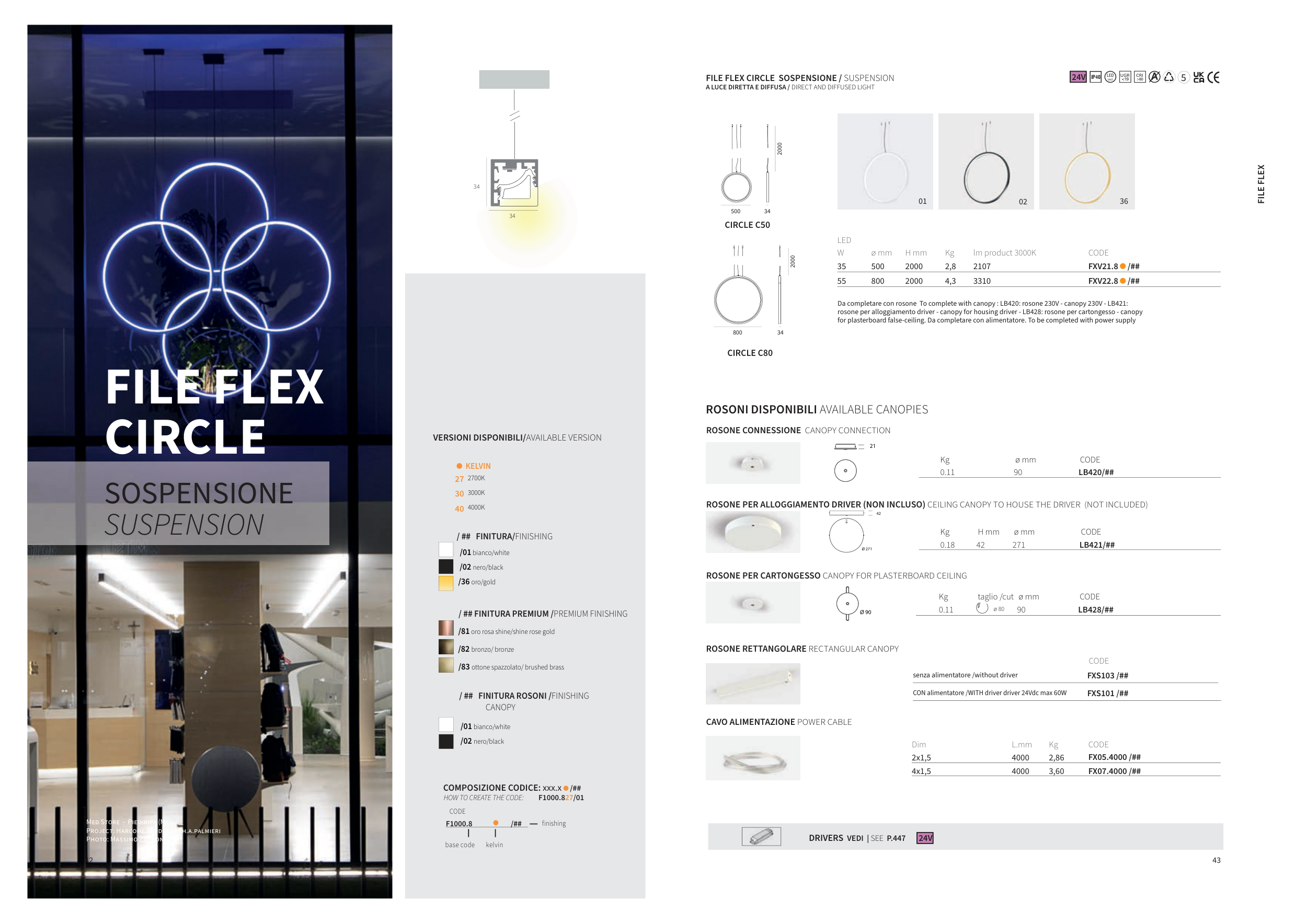

FILE FLEX CIRCLE SOSPENSIONE / SUSPENSION
A LUCE DIRETTA E DIFFUSA / DIRECT AND DIFFUSED LIGHT
LED
W
ø mm
H mm
Kg
lm product 3000K
CODE
35
500
2000
2,8
2107
FXV21.8 /##
55
800
2000
4,3
3310
FXV22.8 /##
CIRCLE C50
Da completare con rosone To complete with canopy : LB420: rosone 230V - canopy 230V - LB421:
rosone per alloggiamento driver - canopy for housing driver - LB428: rosone per cartongesso - canopy
for plasterboard false-ceiling. Da completare con alimentatore. To be completed with power supply
ROSONI DISPONIBILI AVAILABLE CANOPIES
CIRCLE C80
01
02
36
CAVO ALIMENTAZIONE POWER CABLE
Dim
L.mm
Kg
CODE
2x1,5
4000
2,86
FX05.4000 /##
4x1,5
4000
3,60
FX07.4000 /##
ROSONE CONNESSIONE CANOPY CONNECTION
21
ROSONE PER ALLOGGIAMENTO DRIVER (NON INCLUSO) CEILING CANOPY TO HOUSE THE DRIVER (NOT INCLUDED)
Ø 271
42
ROSONE PER CARTONGESSO CANOPY FOR PLASTERBOARD CEILING
Ø 90
ROSONE RETTANGOLARE RECTANGULAR CANOPY
CODE
senza alimentatore /without driver
FXS103 /##
CON alimentatore /WITH driver driver 24Vdc max 60W
FXS101 /##
24V
LED
incl.
UGR
<19
CRI
>80
5
DRIVERS VEDI | SEE P.447
Kg
taglio /cut ø mm
CODE
0.11
ø 80
90
LB428/##
Kg
ø mm
CODE
0.11
90
LB420/##
Kg
H mm
ø mm
CODE
0.18
42
271
LB421/##
24V
43
