165º
-80º +80º
160º
245
96 1/2”
-45º
+45º
ø74
ø29 1/8”
315cm
h.max
124”
285
112 1/4”
225
88 5/8”
225
88 5/8”
162
63 3/4”
ø74
ø29 1/8”
ø54cm
ø21 1/4”
43cm
16 7/8”
ø41cm
ø16 1/8”
ø20cm
ø7 7/8”
5.6cm
2 1/4”
300cm
cable max length
118 1/8”
165º
-80º +80º
160º
245
96 1/2”
-45º
+45º
ø74
ø29 1/8”
315cm
h.max
124”
285
112 1/4”
225
88 5/8”
225
88 5/8”
162
63 3/4”
ø74
ø29 1/8”
ø54cm
ø21 1/4”
43cm
16 7/8”
ø41cm
ø16 1/8”
ø20cm
ø7 7/8”
5.6cm
2 1/4”
300cm
cable max length
118 1/8”
LEUCOS
JJ CATALOG
52

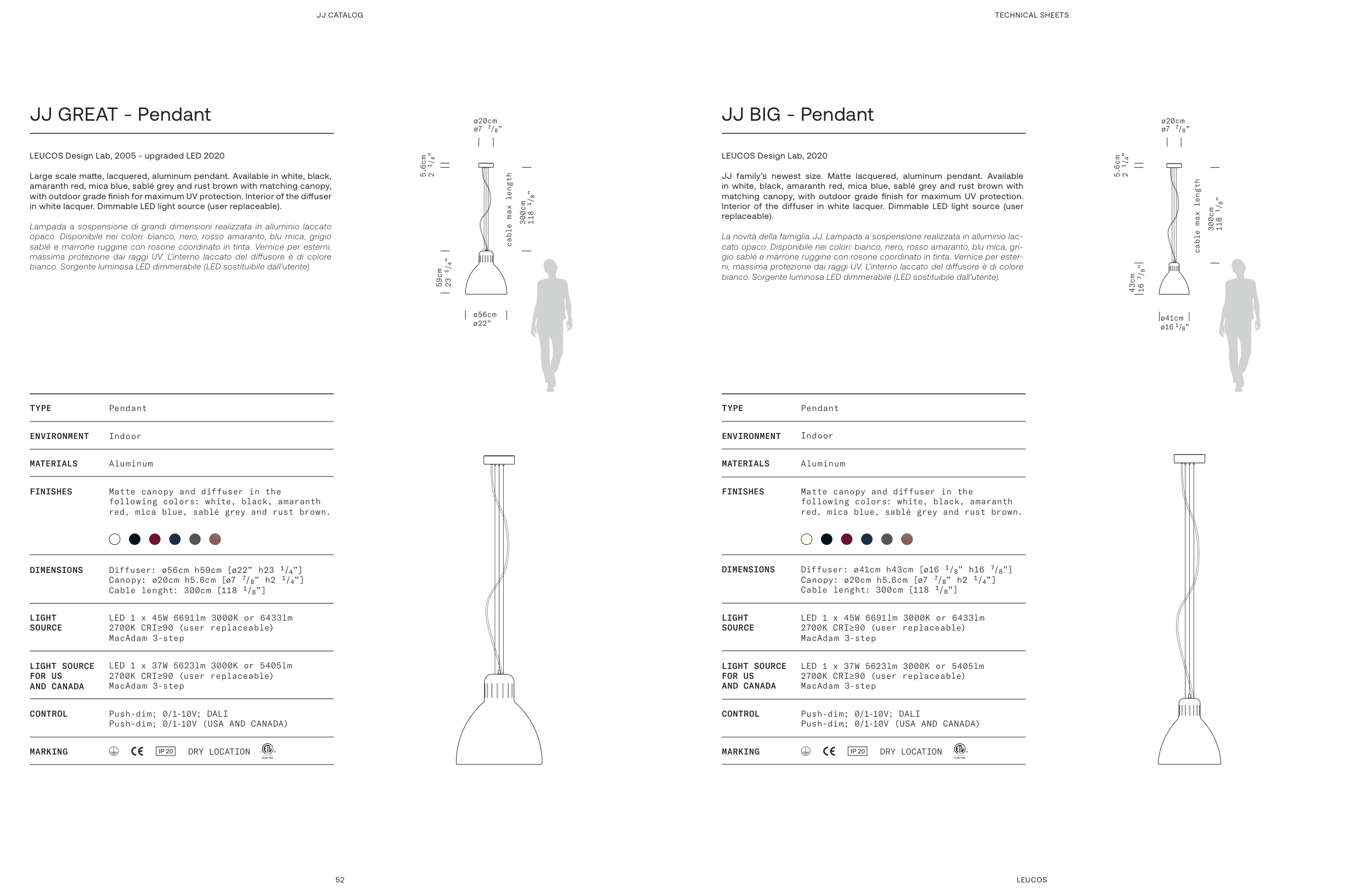

JJ GREAT - Pendant
LEUCOS Design Lab, 2005 - upgraded LED 2020
Large scale matte, lacquered, aluminum pen dant. Available in white, black,
amaranth red, mica blue, sablé grey and rust brown with matching canopy,
with outdoor grade finish for maximum UV protection. Interior of the diffuser
in white lac quer. Dimmable LED light source (user replaceable).
Lampada a sospensione di grandi dimensioni realizzata in alluminio laccato
opaco. Disponibile nei co lori: bianco, nero, rosso amaranto, blu mica, gri gio
sablé e marrone ruggine con rosone coordinato in tinta. Vernice per esterni,
massima protezione dai raggi UV. L’interno laccato del diffusore è di colore
bianco. Sorgente luminosa LED dimmerabile (LED sostituibile dall’utente).
TYPE
ENVIRONMENT
MATERIALS
FINISHES
DIMENSIONS
LIGHT
SOURCE
CONTROL
LIGHT SOURCE
FOR US
AND CANADA
Pendant
Indoor
Aluminum
Matte canopy and diffuser in the
following colors: white, black, amaranth
red, mica blue, sablé grey and rust brown.
Diffuser: ø56cm h59cm [ø22” h23 1/4”]
Canopy: ø20cm h5.6cm [ø7 7/8” h2 1/4”]
Cable lenght: 300cm [118 1/8”]
Push-dim; 0/1-10V; DALI
Push-dim; 0/1-10V (USA AND CANADA)
MARKING
DRY LOCATION
TECHNICAL SHEETS
JJ BIG - Pendant
LEUCOS Design Lab, 2020
JJ family’s newest size. Matte lac quered, aluminum pendant. Available
in white, black, amaranth red, mica blue, sablé grey and rust brown with
matching canopy, with outdoor grade finish for maximum UV protection.
Interior of the diffuser in white lac quer. Dimmable LED light source (user
replaceable).
TYPE
ENVIRONMENT
MATERIALS
FINISHES
DIMENSIONS
LIGHT
SOURCE
CONTROL
LIGHT SOURCE
FOR US
AND CANADA
Pendant
Indoor
Aluminum
Matte canopy and diffuser in the
following colors: white, black, amaranth
red, mica blue, sablé grey and rust brown.
Diffuser: ø41cm h43cm [ø16 1/8” h16 7/8”]
Canopy: ø20cm h5.6cm [ø7 7/8” h2 1/4”]
Cable lenght: 300cm [118 1/8”]
LED 1 x 45W 6691lm 3000K or 6433lm
2700K CRI≥90 (user replaceable)
MacAdam 3-step
Push-dim; 0/1-10V; DALI
Push-dim; 0/1-10V (USA AND CANADA)
LED 1 x 37W 5623lm 3000K or 5405lm
2700K CRI≥90 (user replaceable)
MacAdam 3-step
La novità della famiglia JJ. Lampada a sospensione realizzata in alluminio lac
cato opaco. Disponibile nei co lori: bianco, nero, rosso amaranto, blu mica, gri
gio sablé e marrone ruggine con rosone coordinato in tinta. Vernice per ester
ni, massima protezione dai raggi UV. L’interno laccato del diffusore è di colore
bianco. Sorgente luminosa LED dimmerabile (LED sostituibile dall’utente).
MARKING
DRY LOCATION
LED 1 x 45W 6691lm 3000K or 6433lm
2700K CRI≥90 (user replaceable)
MacAdam 3-step
LED 1 x 37W 5623lm 3000K or 5405lm
2700K CRI≥90 (user replaceable)
MacAdam 3-step
