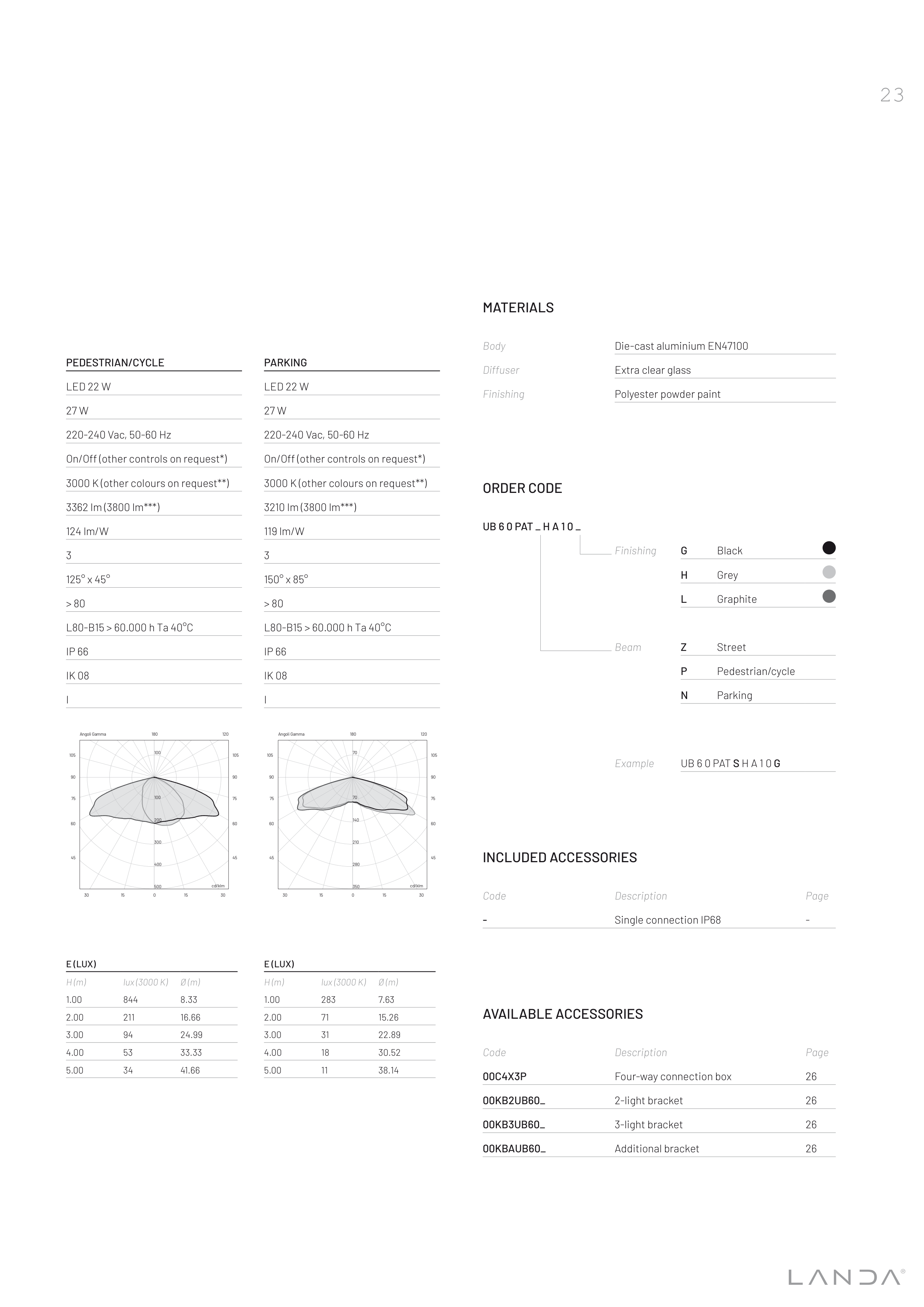

PEDESTRIAN/CYCLE
PARKING
LED 22 W
LED 22 W
27 W
27 W
220-240 Vac, 50-60 Hz
220-240 Vac, 50-60 Hz
On/Off (other controls on request*)
On/Off (other controls on request*)
3000 K (other colours on request**)
3000 K (other colours on request**)
3362 lm (3800 lm***)
3210 lm (3800 lm***)
124 lm/W
119 lm/W
3
3
125° x 45°
150° x 85°
> 80
> 80
L80-B15 > 60.000 h Ta 40°C
L80-B15 > 60.000 h Ta 40°C
IP 66
IP 66
IK 08
IK 08
I
I
100
100
200
300
400
500
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
70
70
140
210
280
350
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
E (LUX)
H (m)
lux (3000 K)
Ø (m)
1.00
844
8.33
2.00
211
16.66
3.00
94
24.99
4.00
53
33.33
5.00
34
41.66
E (LUX)
H (m)
lux (3000 K)
Ø (m)
1.00
283
7.63
2.00
71
15.26
3.00
31
22.89
4.00
18
30.52
5.00
11
38.14
MATERIALS
Body
Die-cast aluminium EN47100
Diffuser
Extra clear glass
Finishing
Polyester powder paint
ORDER CODE
UB 6 0 PAT _ H A 1 0 _
Finishing
G
Black
H
Grey
L
Graphite
Beam
Z
Street
P
Pedestrian/cycle
N
Parking
Example
UB 6 0 PAT S H A 1 0 G
INCLUDED ACCESSORIES
Code
Description
Page
-
Single connection IP68
-
AVAILABLE ACCESSORIES
Code
Description
Page
00C4X3P
Four-way connection box
26
00KB2UB60_
2-light bracket
26
00KB3UB60_
3-light bracket
26
00KBAUB60_
Additional bracket
26
23
