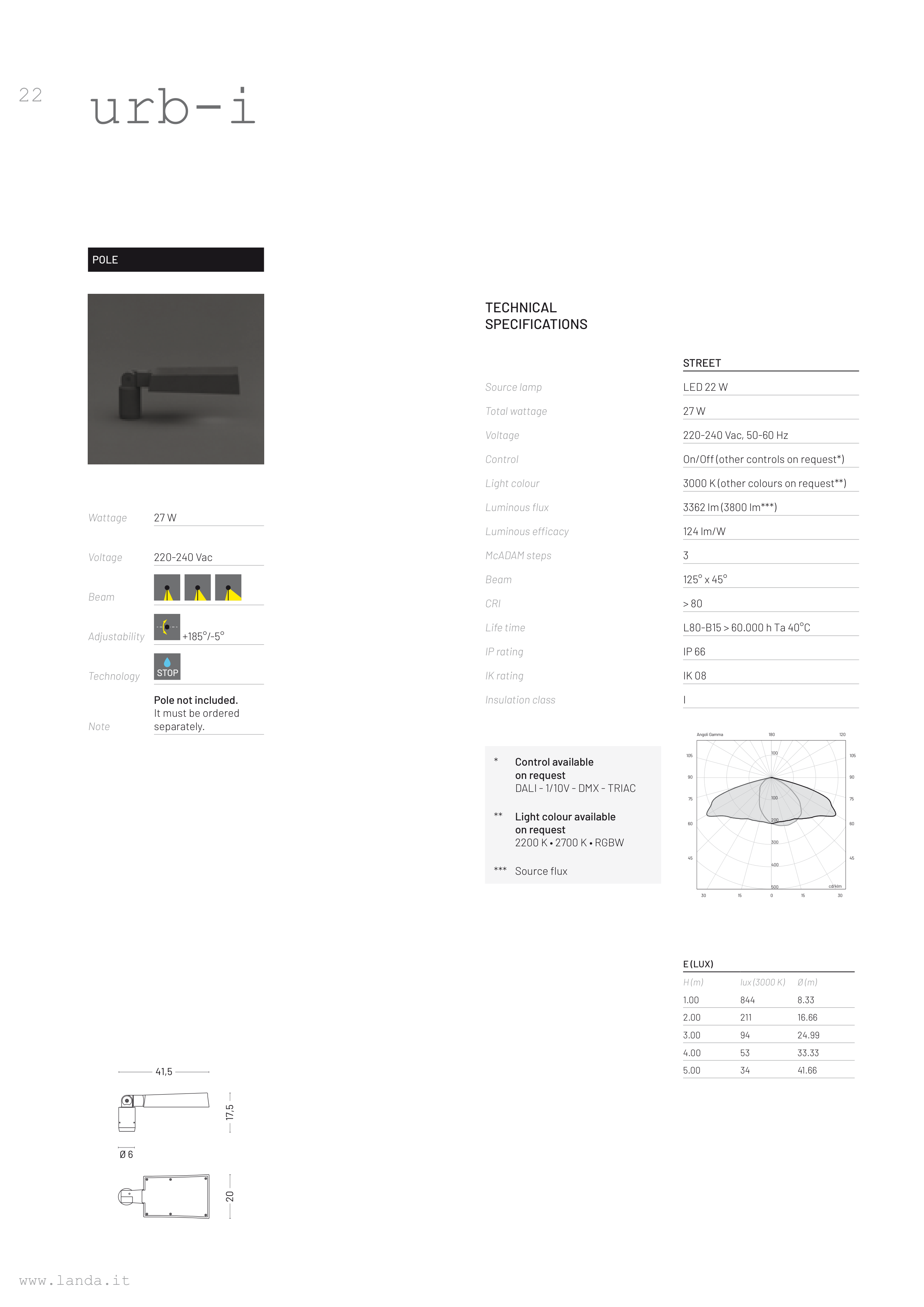

urb-i
TECHNICAL
SPECIFICATIONS
STREET
Source lamp
LED 22 W
Total wattage
27 W
Voltage
220-240 Vac, 50-60 Hz
Control
On/Off (other controls on request*)
Light colour
3000 K (other colours on request**)
Luminous flux
3362 lm (3800 lm***)
Luminous efficacy
124 lm/W
McADAM steps
3
Beam
125° x 45°
CRI
> 80
Life time
L80-B15 > 60.000 h Ta 40°C
IP rating
IP 66
IK rating
IK 08
Insulation class
I
*
Control available
on request
DALI - 1/10V - DMX - TRIAC
**
Light colour available
on request
2200 K • 2700 K • RGBW
*** Source flux
100
100
200
300
400
500
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
E (LUX)
H (m)
lux (3000 K)
Ø (m)
1.00
844
8.33
2.00
211
16.66
3.00
94
24.99
4.00
53
33.33
5.00
34
41.66
POLE
Wattage
27 W
Voltage
220-240 Vac
Beam
Adjustability
+185°/-5°
Technology
Note
Pole not included.
It must be ordered
separately.
22
www.landa.it
